Description
SPECIFICATIONS
Brand Name: Estardyn
Choice: yes
Display Mode: 240*240
Hign-concerned Chemical: None

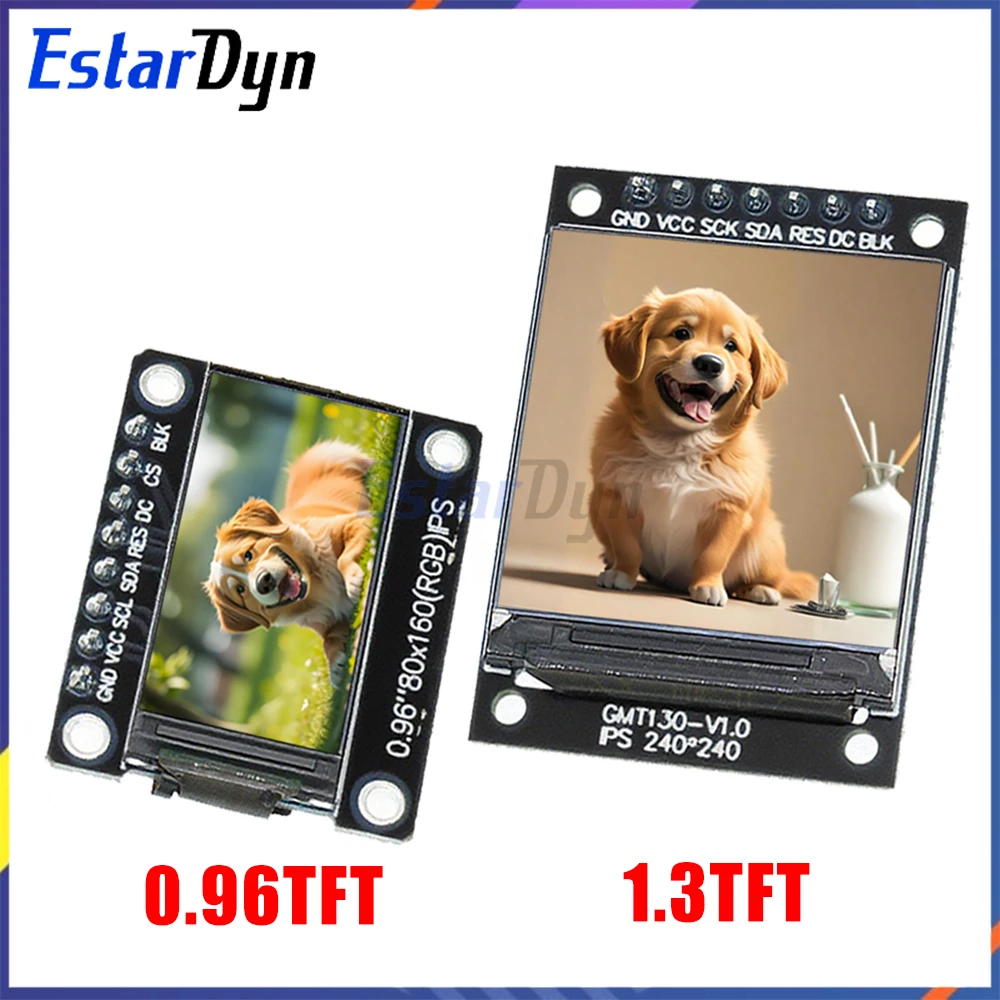

Model Number: 0.96 inch 1.3 inch 7P TFT
Origin: Mainland China
Resolution: 240×240
Type: TFT
is_customized: Yes

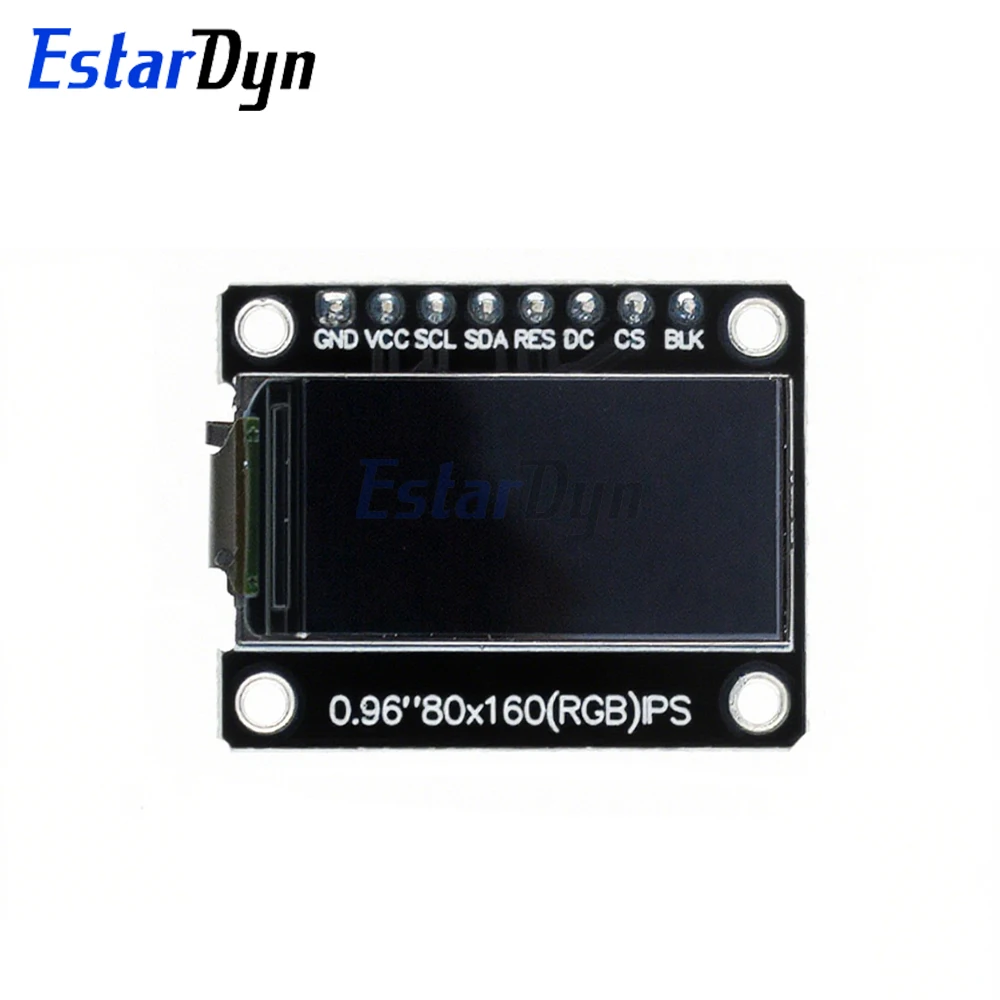

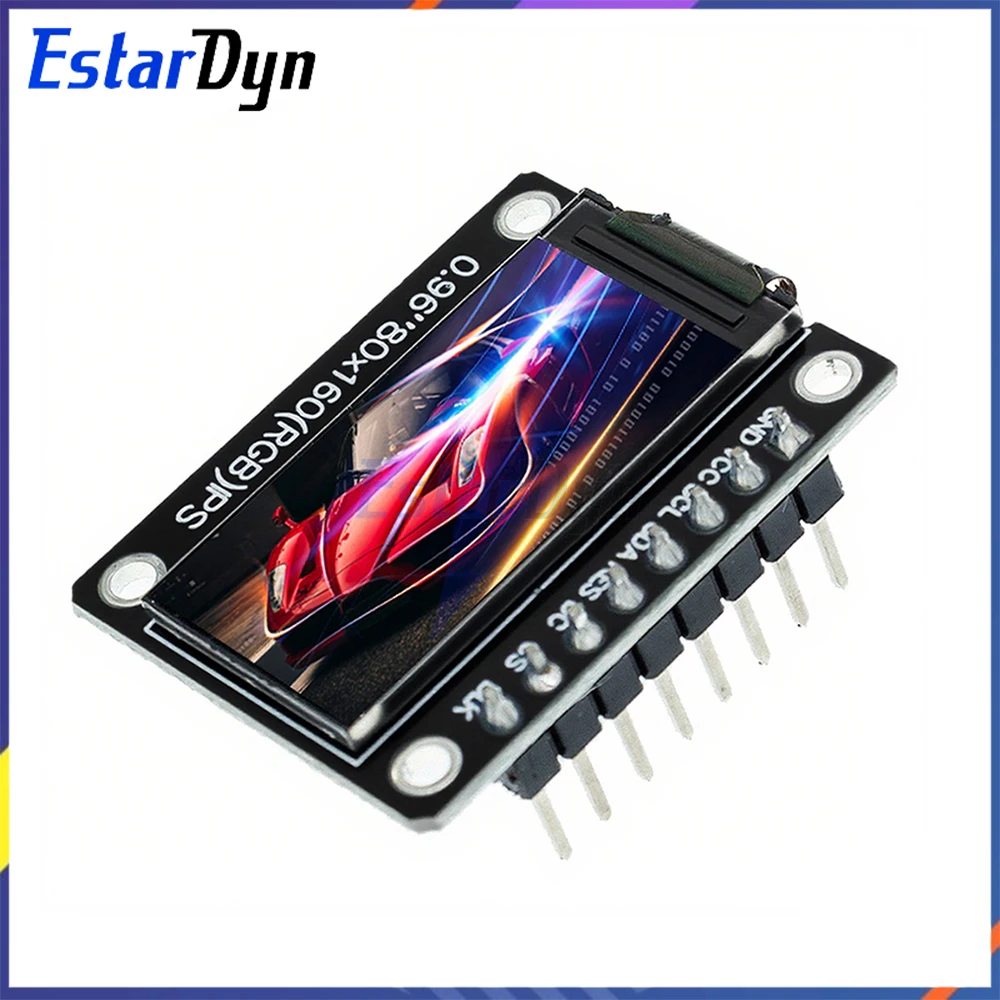

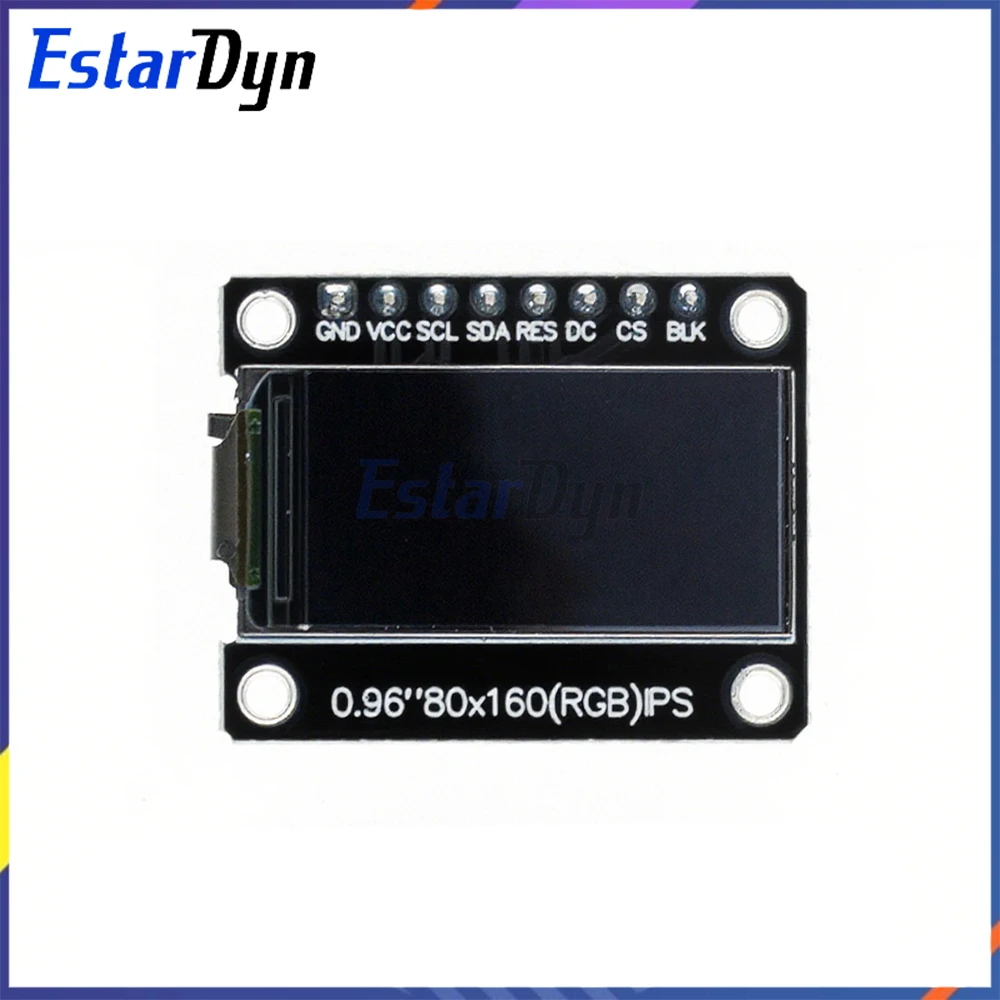

SIZE：0.96inch
Display ModeNormally black IPS
Display FormatGraphic 80RGB*160 Dot-matrix
Input DataSPI interface

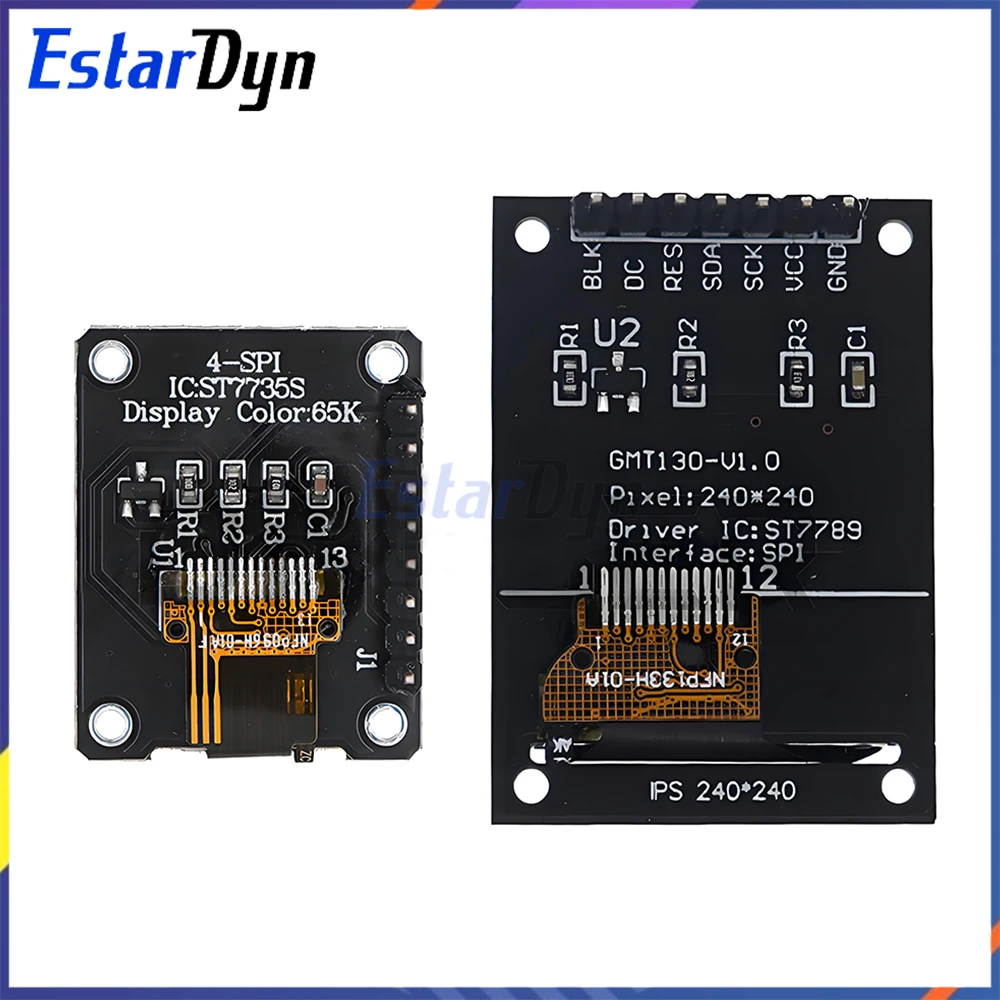

Drive ICST7735S
Dimensional outline24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution80RGB*160 Dots
LCD Active area10.8 (W)*21.7 (H)
Dot pitch0.135(H) x 0.1356(V) mm
Viewing DirectionAll View
Operating Temperature-20～70°C
2.Pin Descriptions:
PIN NoSymbolDescription
1GNDGround
2VCCPower 3.3V
3SCLSerial clock pin.
4SDASerial data input
5RESLCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6DCData/Command Control
7CSChip Select
8BLKBacklight control pin

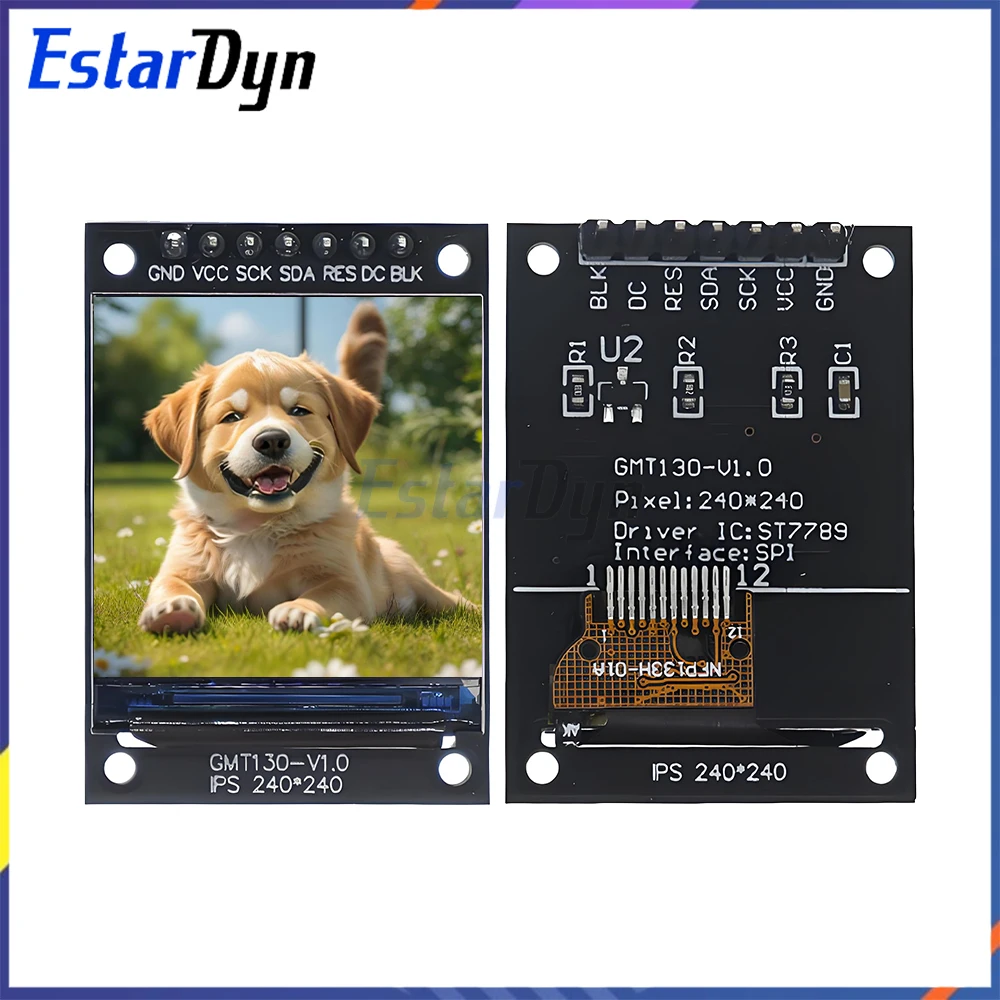

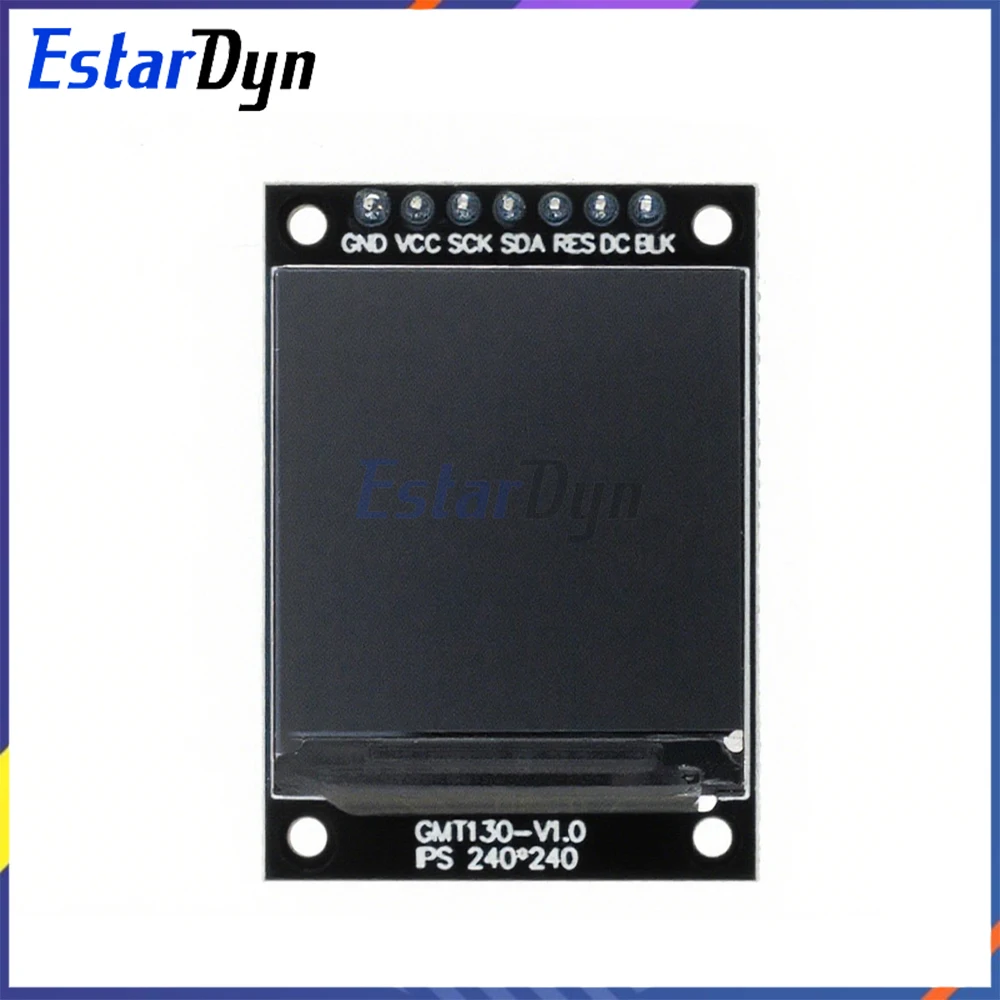

SIZE：1.3 inch
Display ModeNormally black IPS
Display FormatGraphic 240RGB*240 Dot-matrix
Input DataSPI interface
Drive ICST7789VW
Dimensional outline27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution240RGB*240 Dots
LCD Active area23.4 (W)*23.4 (H)
Dot pitch0.0975(H) x 0.0975(V) mm
Viewing DirectionAll View
Operating Temperature-20～70°C
2.Pin Descriptions:
PIN NoSymbolDescription
1GNDGround
2VCCPower 3.3V
3SCLSerial clock pin.
4SDASerial data input
5RESLCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6DCData/Command Control
7BLKBacklight control pin
