Product advantages:

1: Support a variety of fast charging protocols

2: Wide range of applications

3: Small size

4: Maximum support 5A

5: TYPE-C port power supply

Supports multiple fast charging protocols:

PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC

Product functions:

1.   Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply.   For example, let the fast charging power bank output 9 volts,

12 volts to power routers, light cats, etc.!

2.   Turn some traditional DC-powered devices into TYPE-C port power supply.

Note:

1.   Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage.

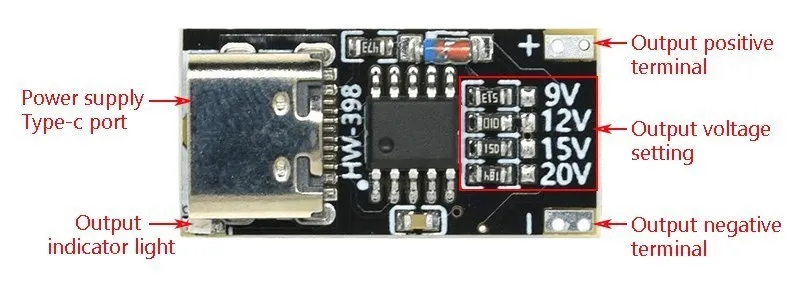

2.   Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads.

3.   For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts.

4.   The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
