SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Condition: New

Hign-concerned Chemical: None

Max. Operating Voltage: 640vac

Origin: Mainland China

Resistance Tolerance: ±10%TCR≤±250X10-6/℃

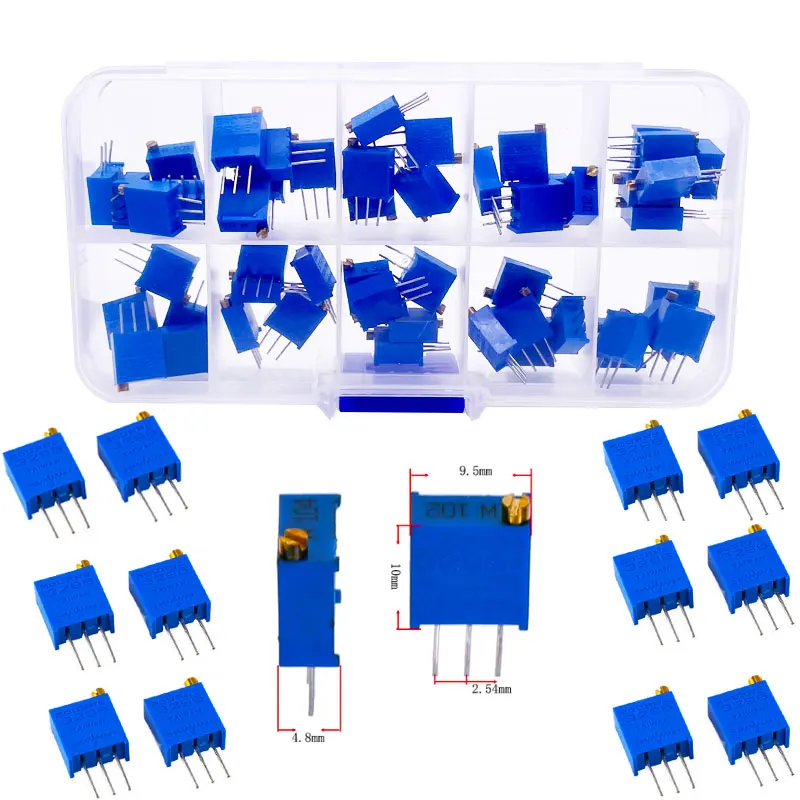

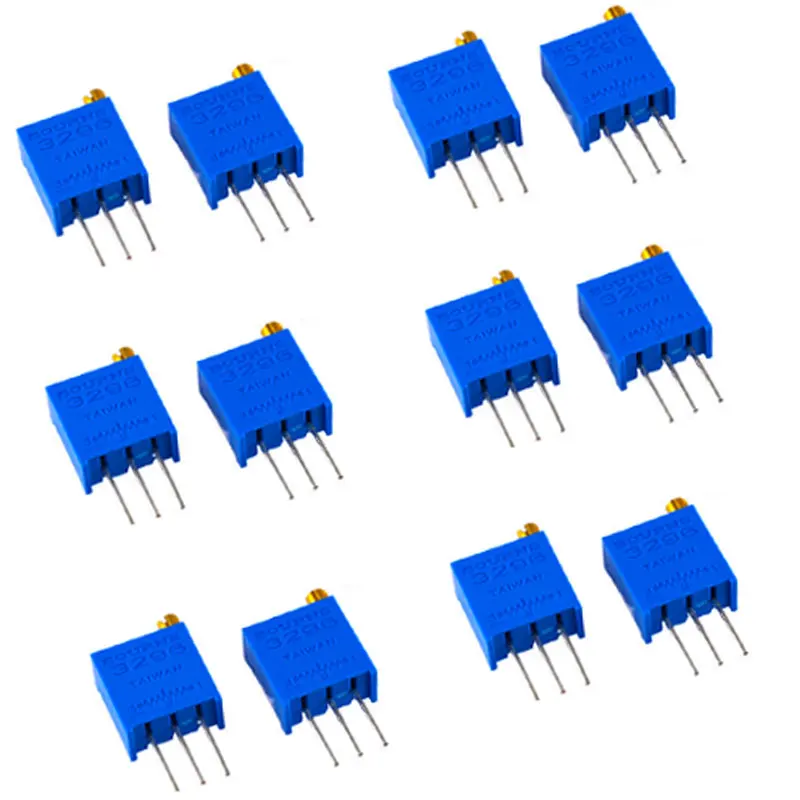

Product Name:3296W Potentiometer

Allowable deviation of resistance value:±10%TCR≤±250X10-6/°C

Resistor limit voltage:315V(DC or AC RMS)

Dynamic contact limit current:100mA withstand voltage (frequency of 40 ~ 60Hz AC value voltage)

Normal atmospheric pressure:640V

Low voltage under 8.5KPa(85mbar):450V

Climate category:55/125/04

Total Mechanical Stroke:28±2 turns

Stability class:10%

Starting torque:≤35mN-m

Load wear weeks:200 weeks

Type:Multi-turn adjustable precision resistor

Terminal resistance:≤1%R or 10Ω

Contact resistance change:CRV≤±3% or 5Ω

Insulation resistance:R≥1GΩ(100vdc)

Withstanding voltage:640Vac

Resistance series: preferred 1EC63 in the E3 series, take 1 effective number that is 1, 2, 5

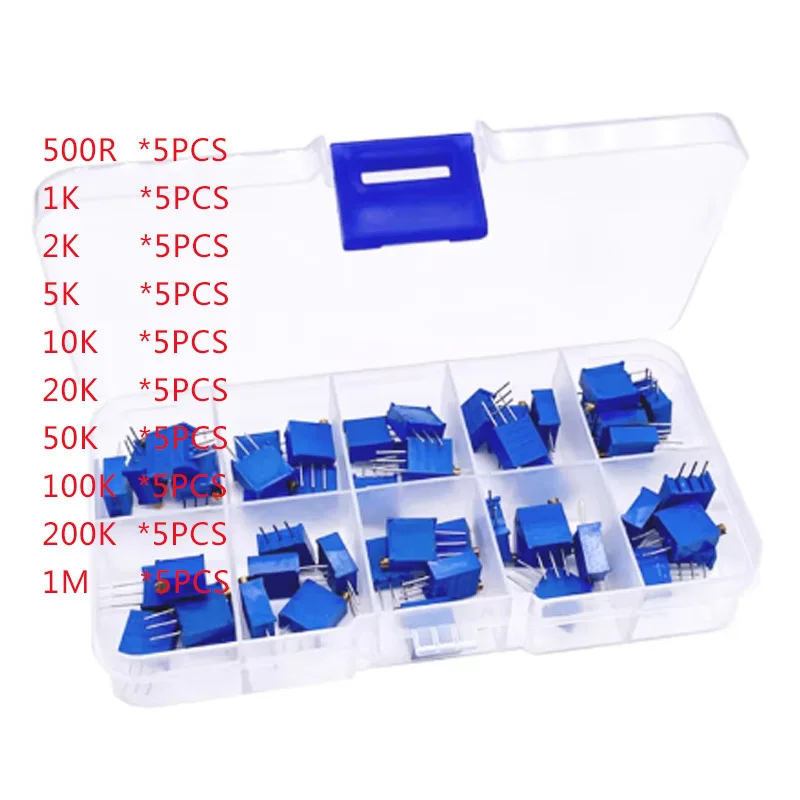

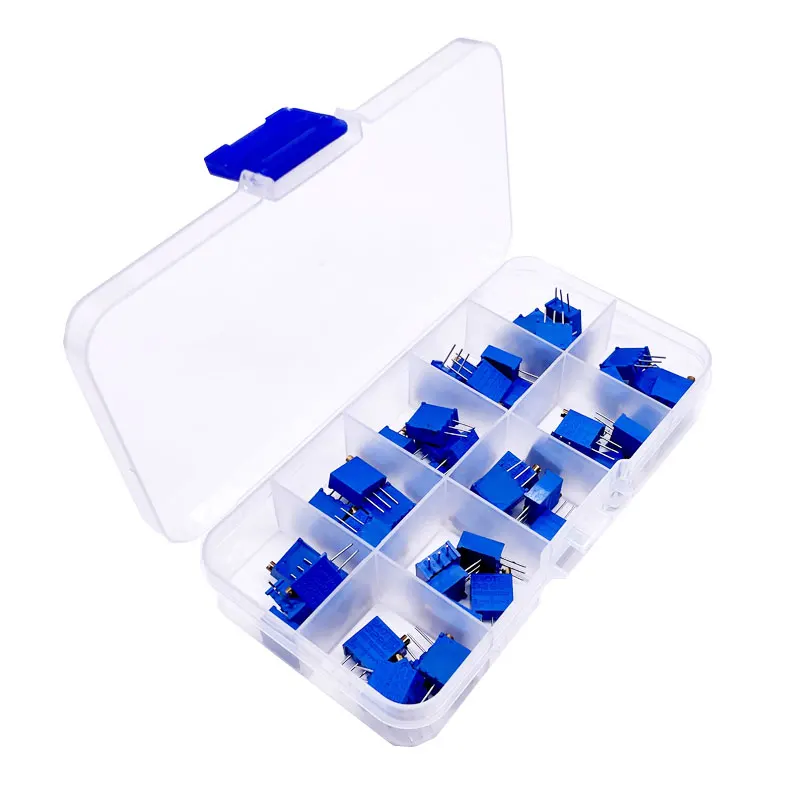

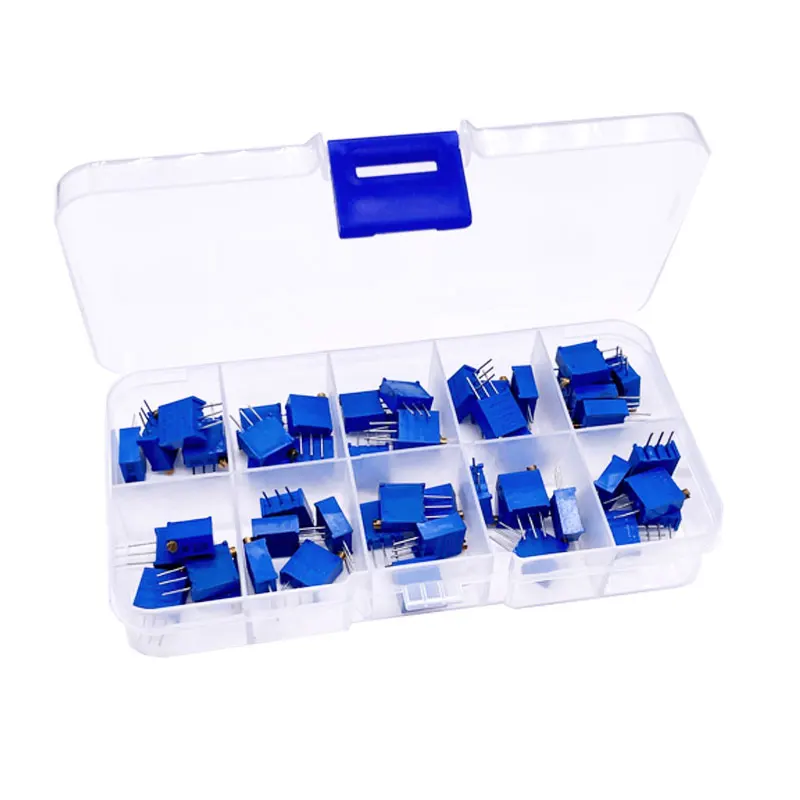

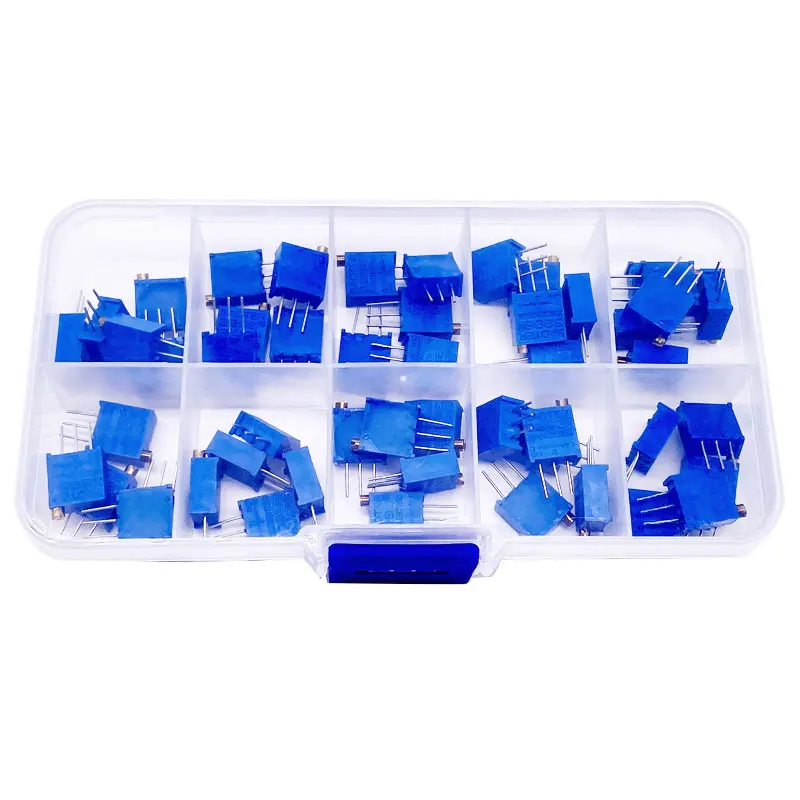

Quantity:50pcs 5pcs of each type
