Notes:

1: Charging protection: constant current and constant voltage balanced charging, protection against battery overcharge and overcurrent.
2: Motor anti-stuck protection: when overloaded, the motor stops working.
3: High temperature protection: when the working temperature is higher than the set temperature, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.
4: Low voltage power-off function of the electric adjustment, the battery is lower than about 6.3-6.4V, and the power is automatically cut off to prevent the battery from being damaged by over-discharge.

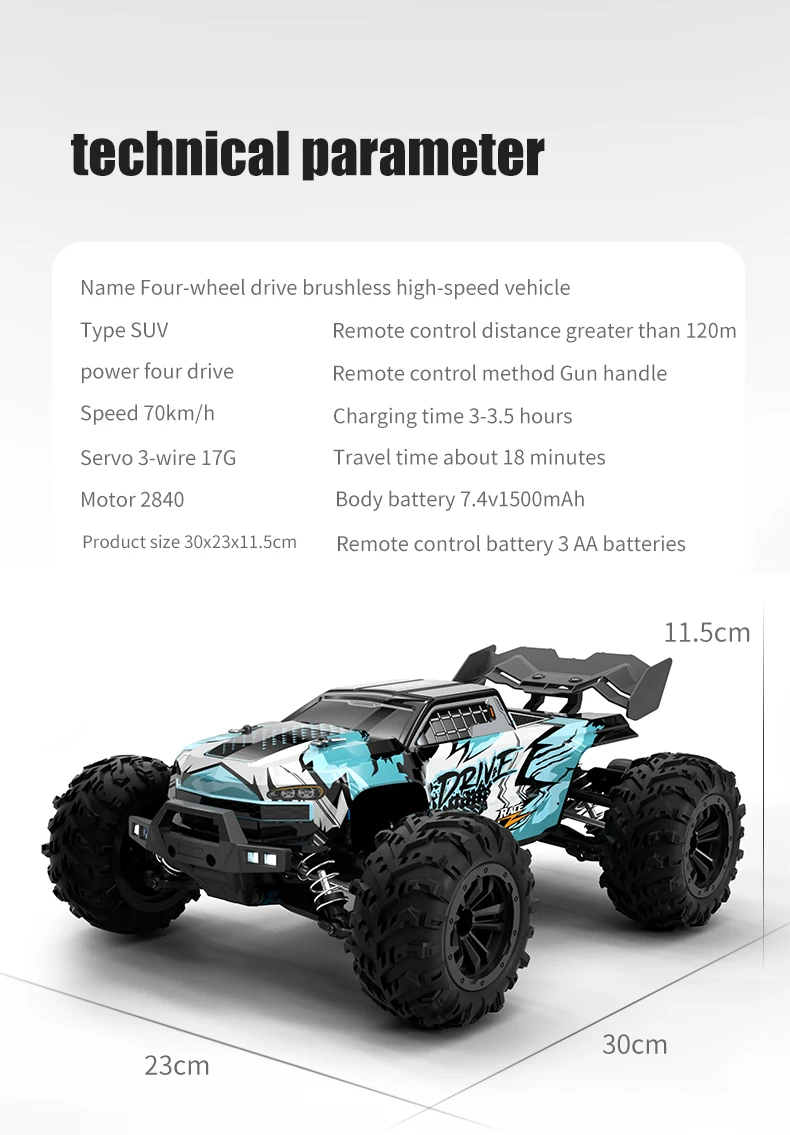

Item No.: SCY-16102PRO
Material: Hardware; Electronics; Plastic

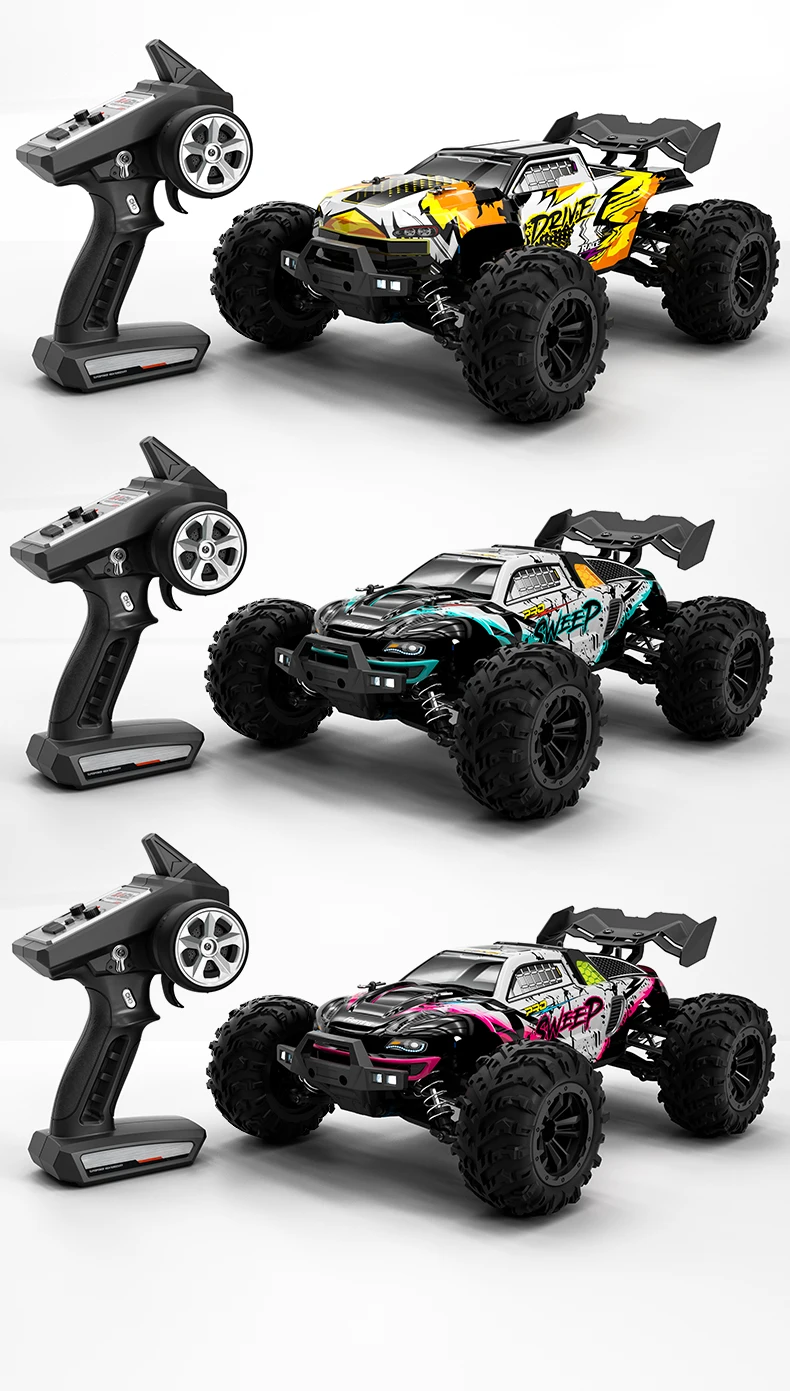

Product Name: 1/16 Electric 4WD Monster Truck (Pickup Truck)

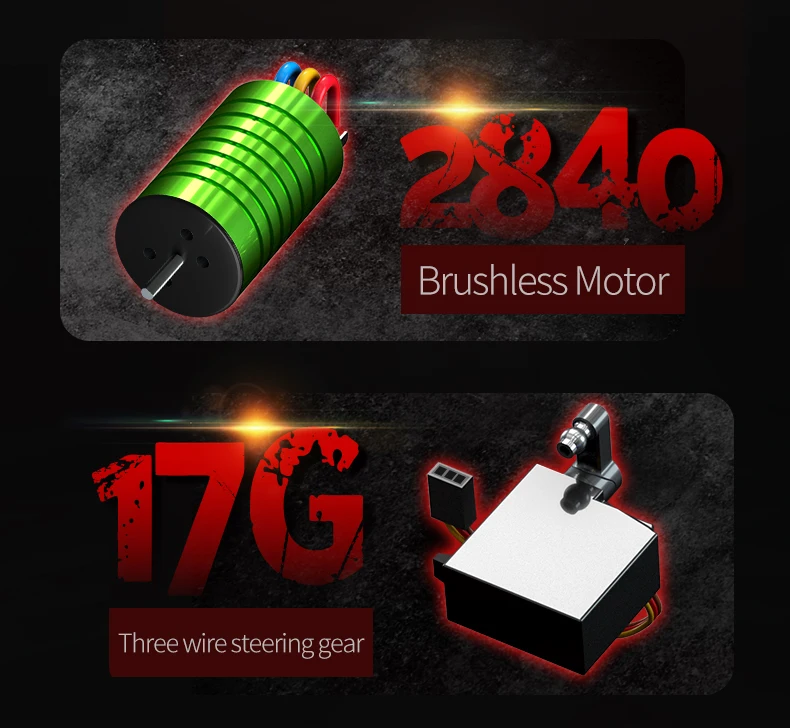

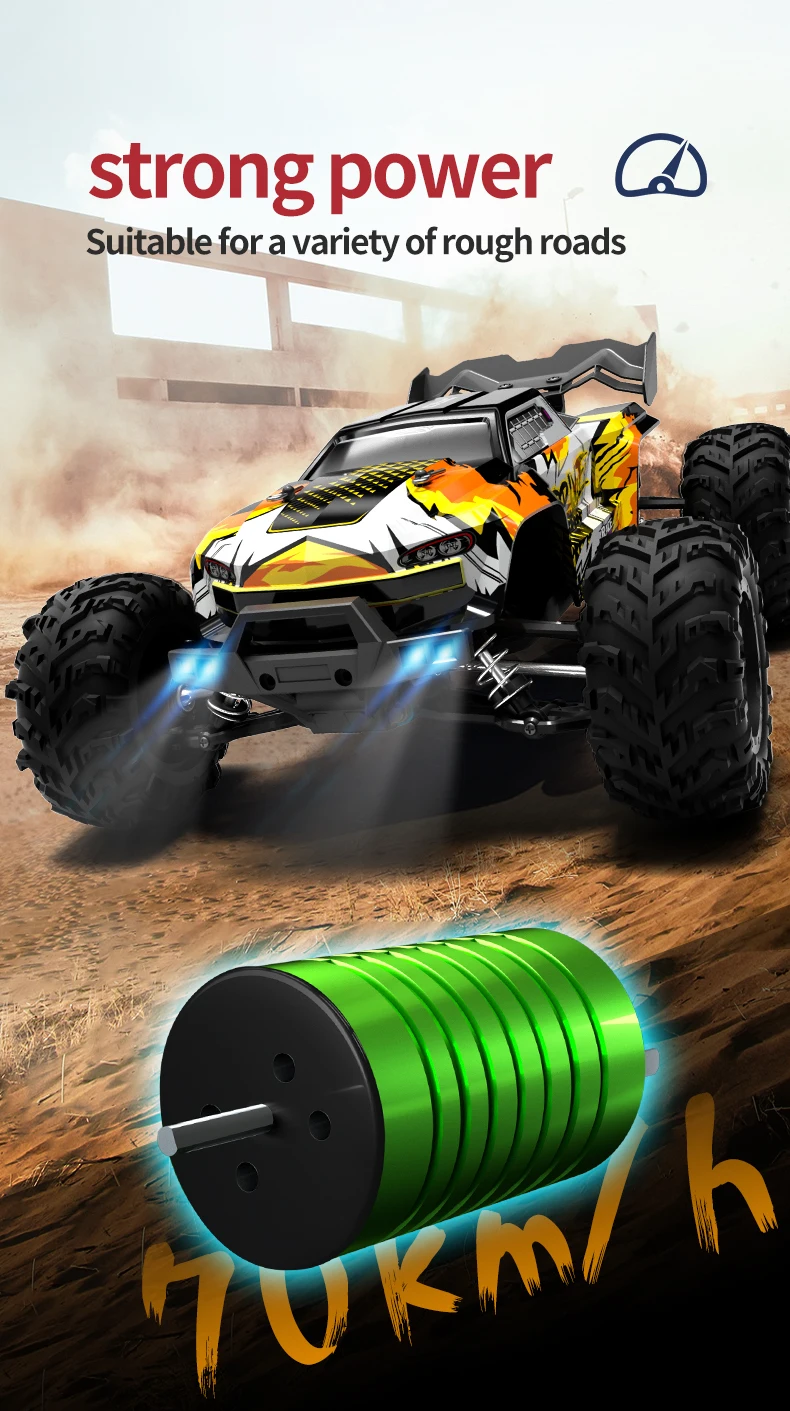

Motor: 2847 Brushless Motor (4000 KV Value)
Packing: English Portable Unpacking Color Box

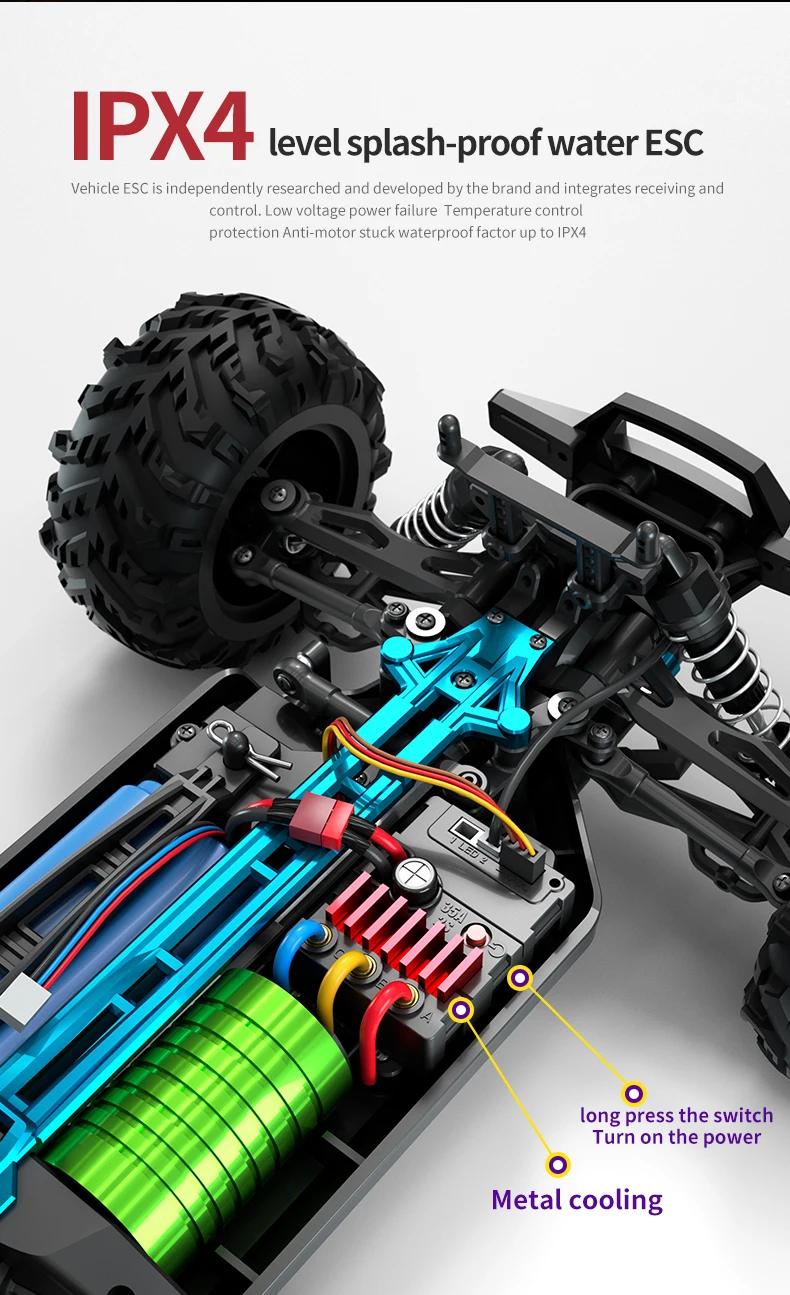

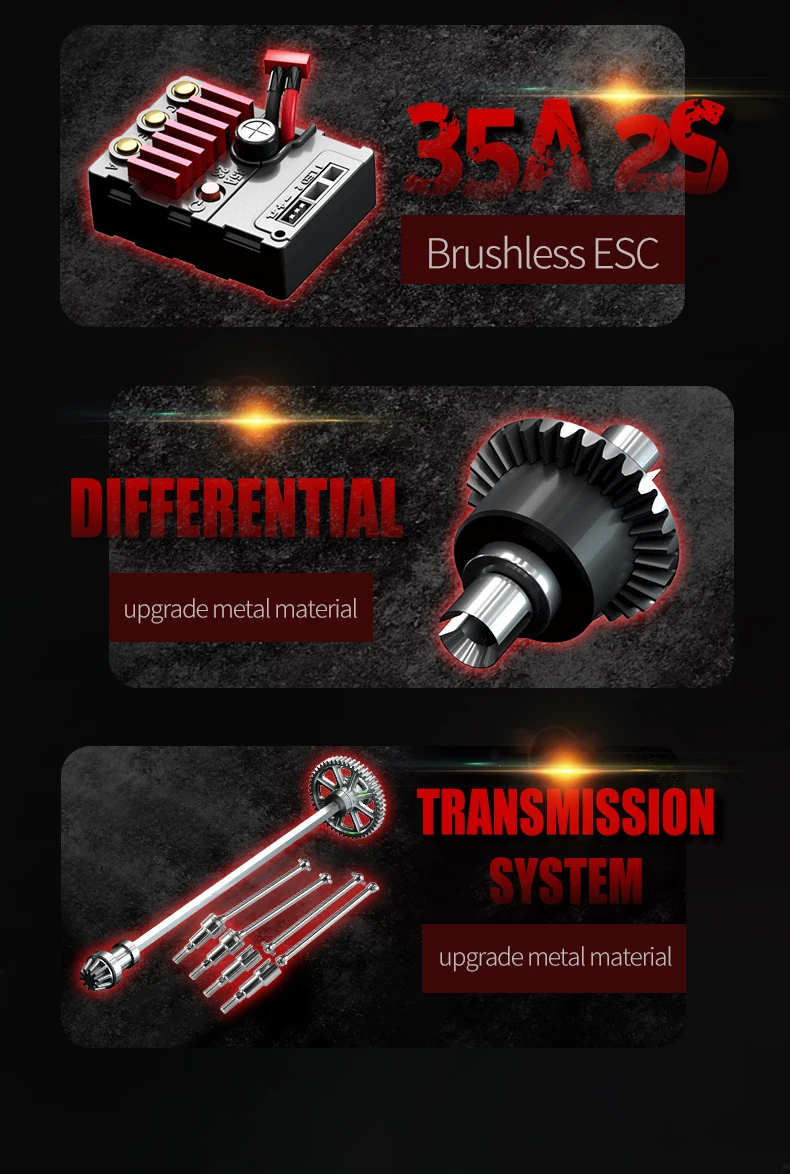

ESC/Receiver: 35A 2S Integrated Control (Splashproof)
Color: Blue/Orange
Body Battery: 7.4V 1500mAH 15C Lithium-ion Battery (T Plug)
Servo: Three-wire 17G Digital Servo

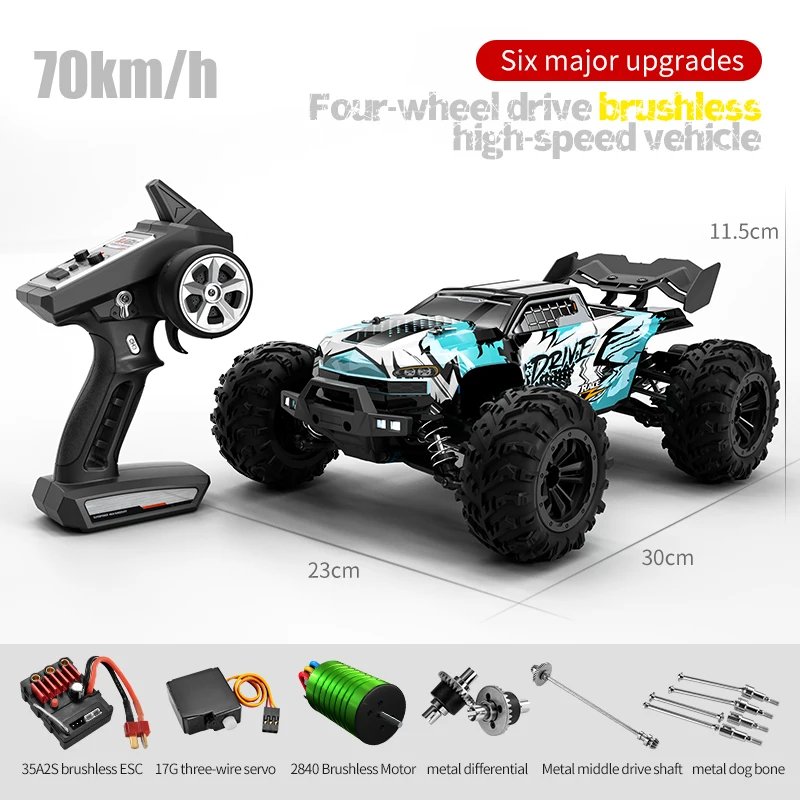

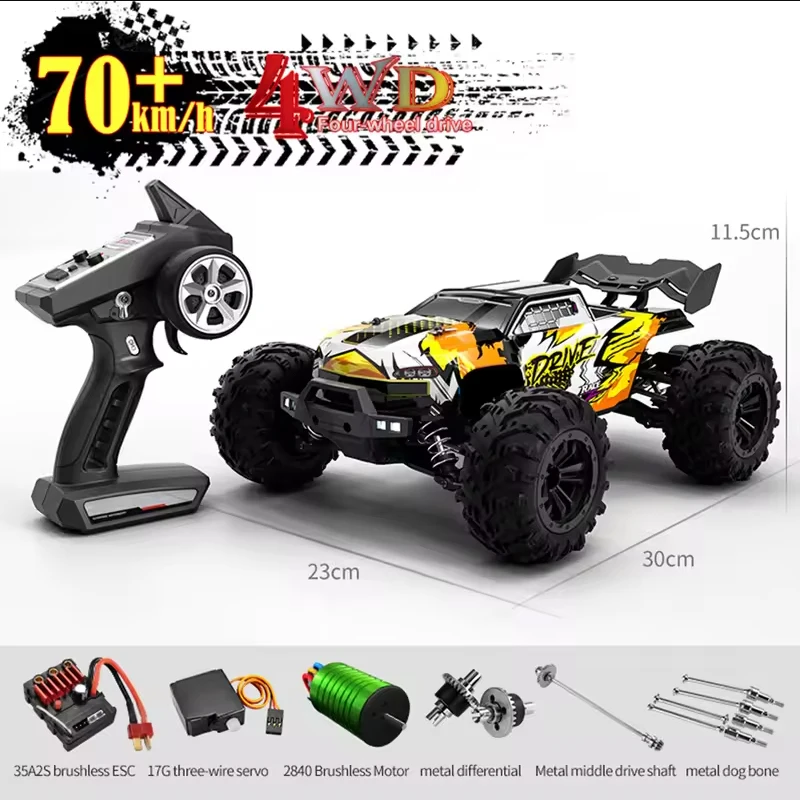

Product Specifications: 30*23*11.5 CM:
Remote Control Battery: 3 "AA" (Not Included)
Remote Control Specifications: 13*7.5*21 CM
Charger: USB Balance Charger
Color Box Specifications: 30.6*14.8*24.1 CM
Frequency: 2.4GHz (supports multiple cars competing in the same field)
Remote control distance: ≥120 meters
Remote control category: full-proportional synchronous control system (gun control)
Body weight: 1000g
Operation time: 15-18 minutes (continuous full speed running)
Remote control weight: 180g
Charging time: 3-3.5 hours (USB balance charging)
Including packaging weight: 1700g
Wheelbase parameters: wheelbase: 185mm; wheelbase: 188mm; wheel diameter: 85mm;
Headlight configuration: LED headlight
Speed: 70 km/h (maximum speed)

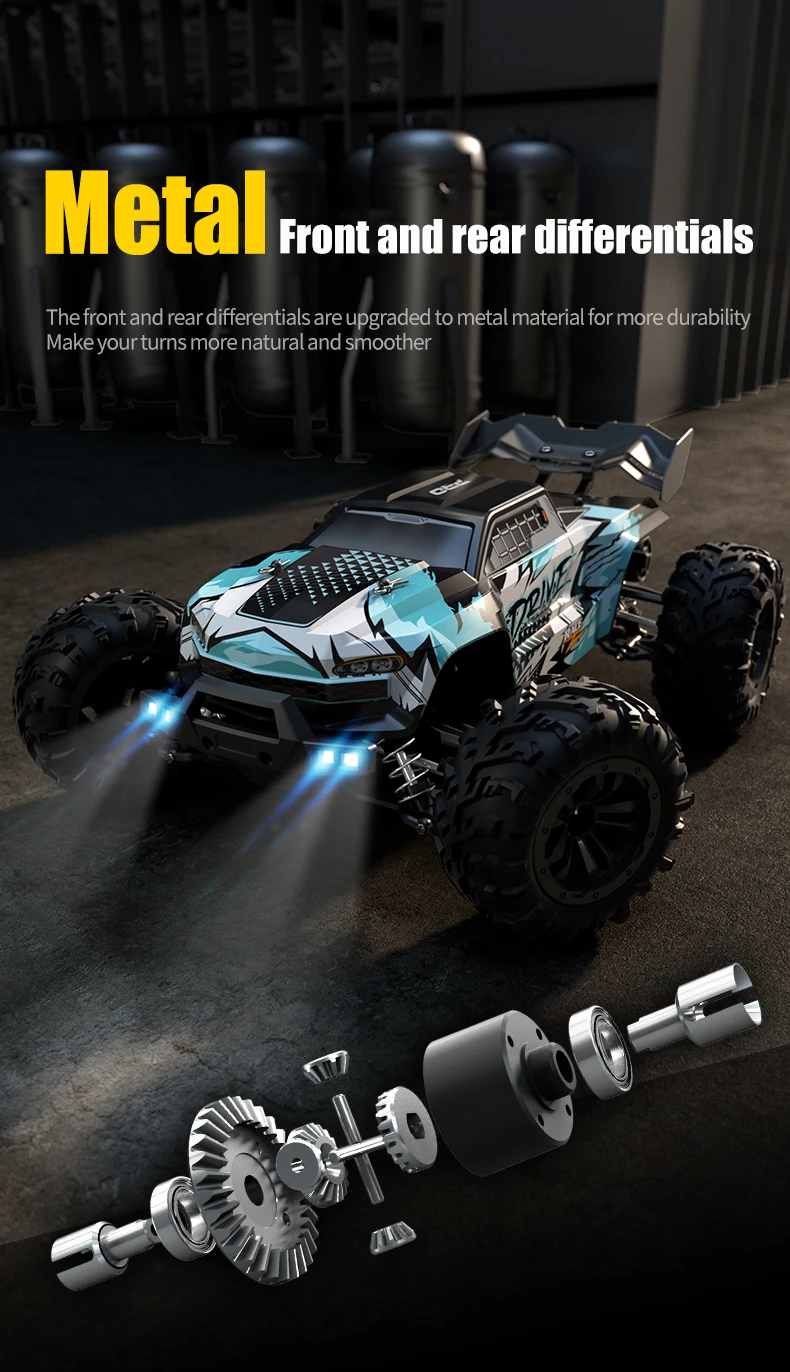

Differential structure: planetary gear differential (metal)
Protection function charging protection, stuck protection, high temperature protection, low voltage protection

Features:

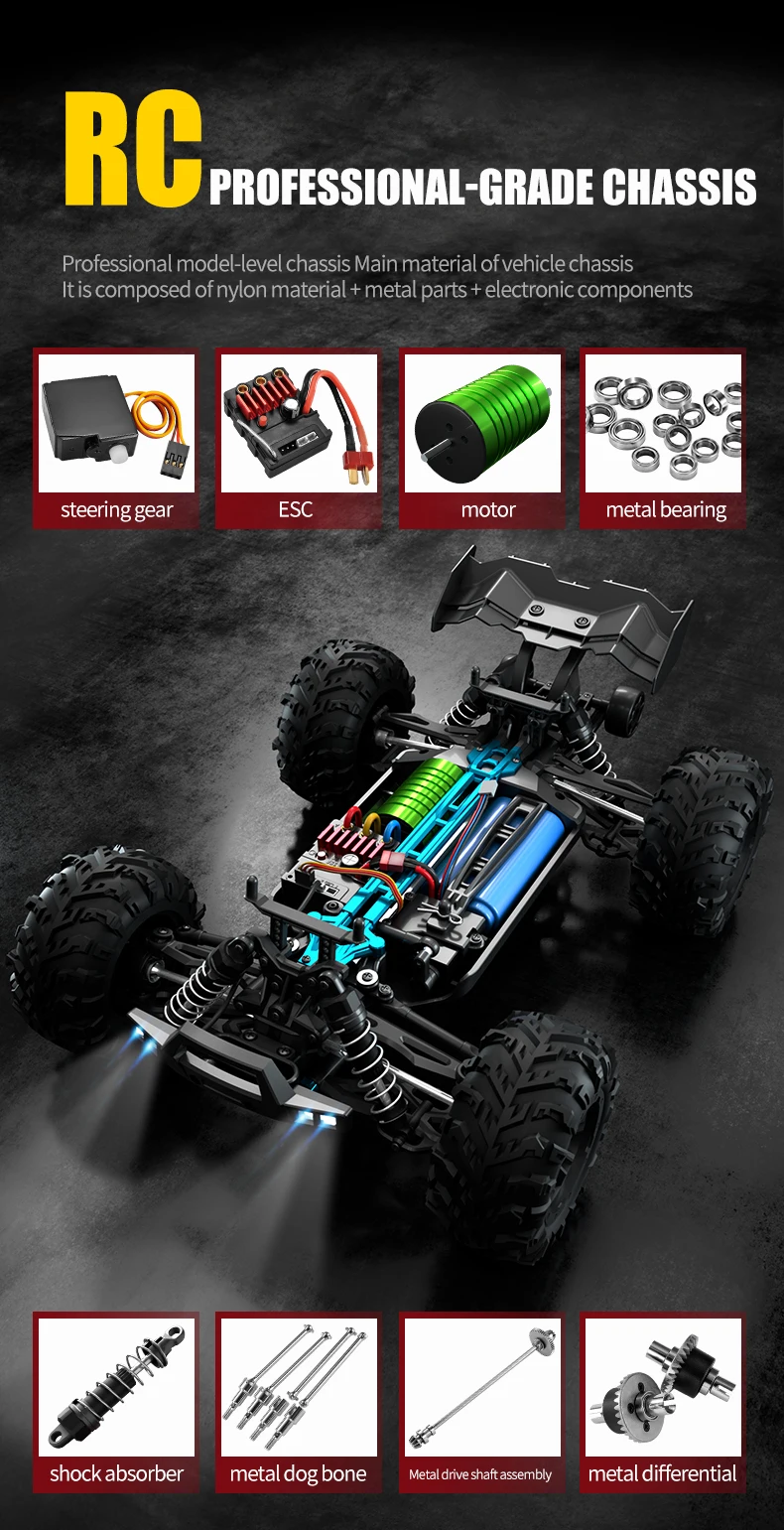

1. It adopts simulation structure design, has the control feeling of real car, realizes full-proportional stepless speed change, high-speed driving, sudden acceleration, deceleration, braking, reversing, left turn, right turn;

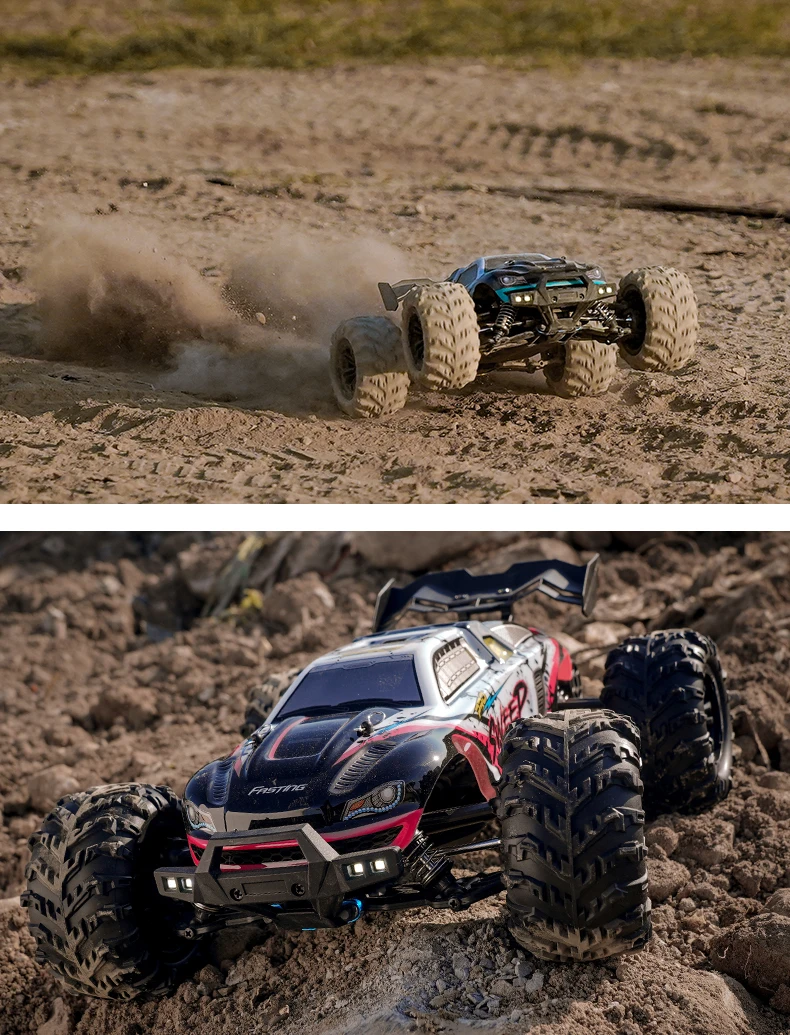

2. Applicable sites: flat land, sand, mud, grass.

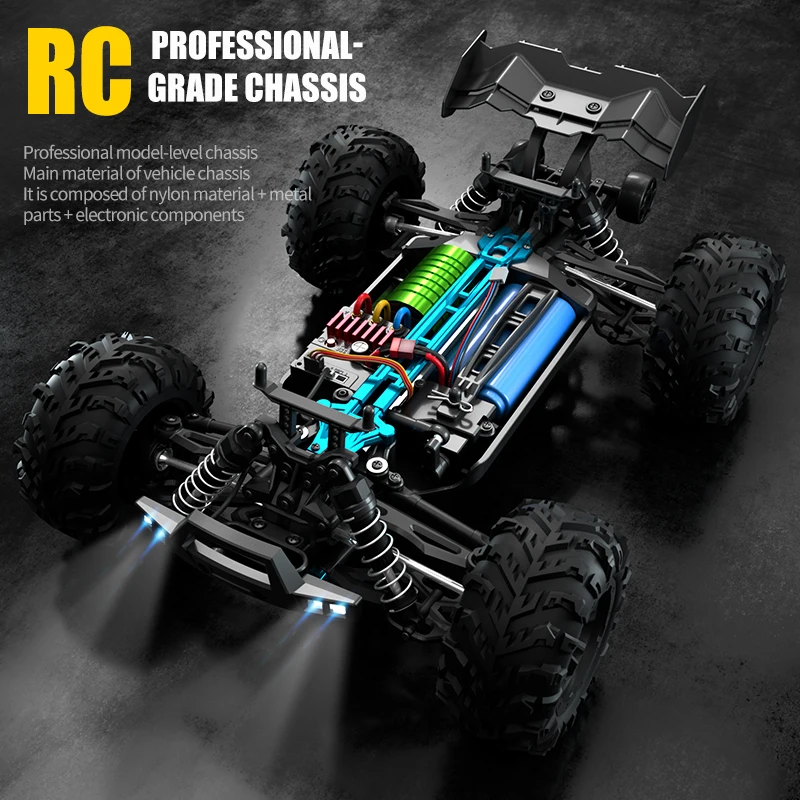

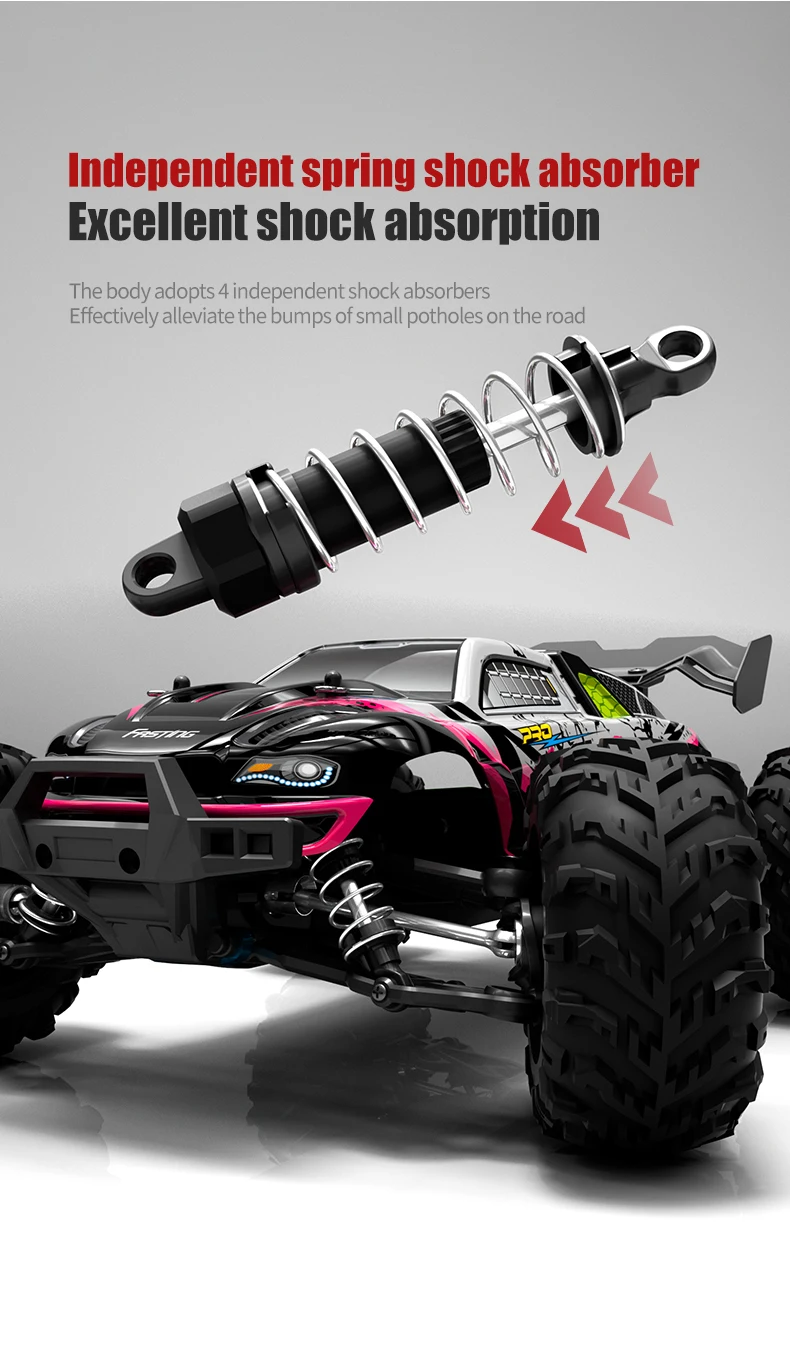

3. Four-wheel drive: front and rear upright spring shock absorber, double wishbone independent suspension system;

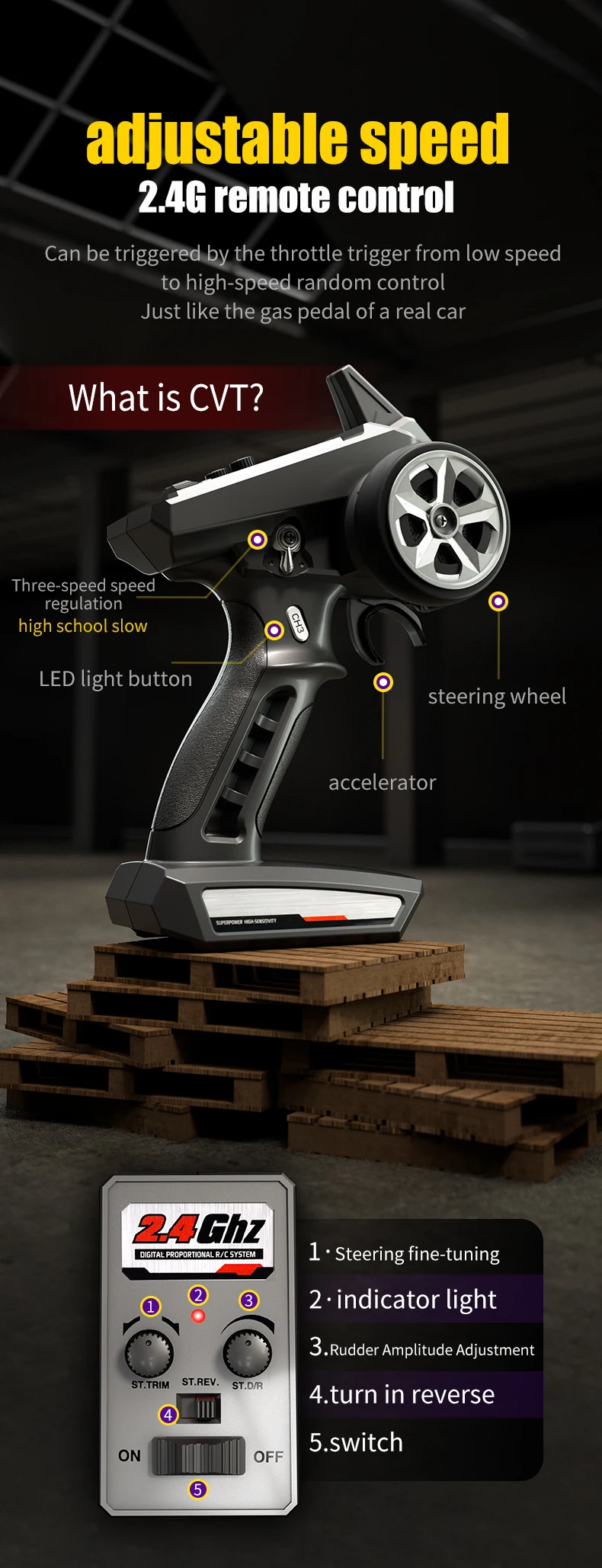

4. 2.4G full-proportional synchronous remote control system. Full-proportional throttle/steering;

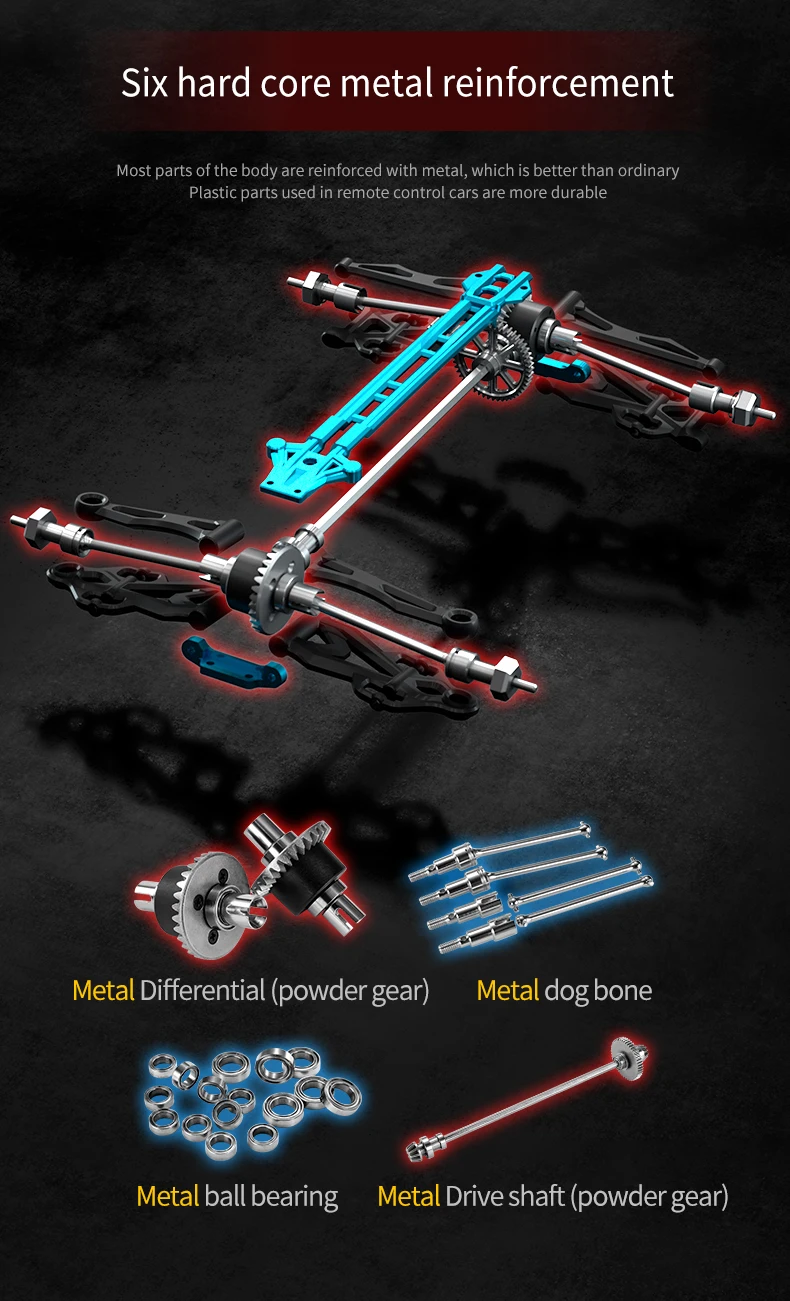

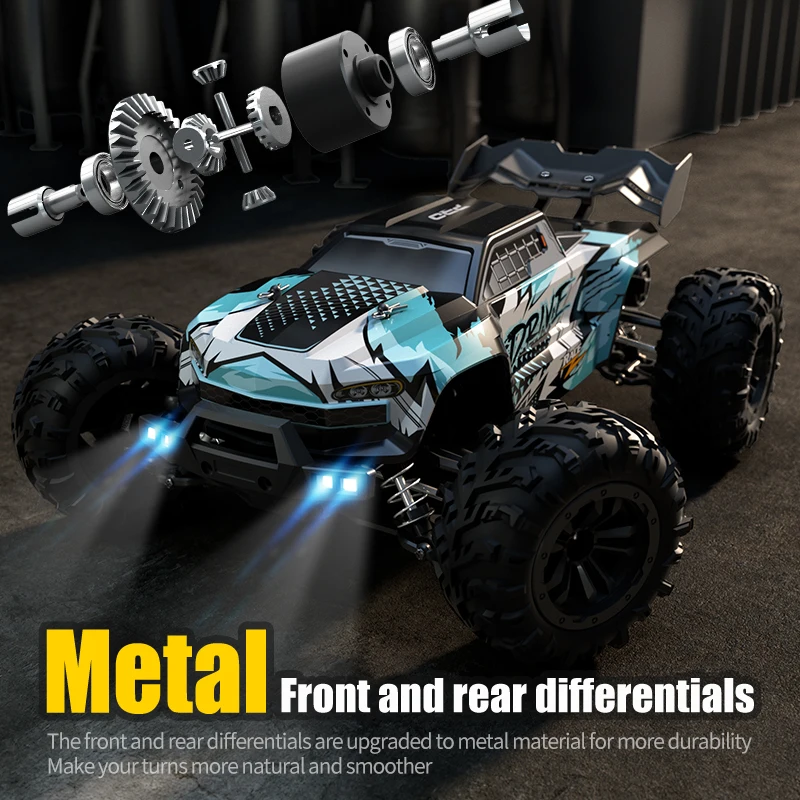

5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;
6. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;
7. Three-wire 17G digital servo;
8. 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;
9. New remote control panel function: rudder volume adjustment;
10. The whole car uses 16 ball bearings;
11. Metal second floor, metal front and rear arm code, metal middle drive shaft;

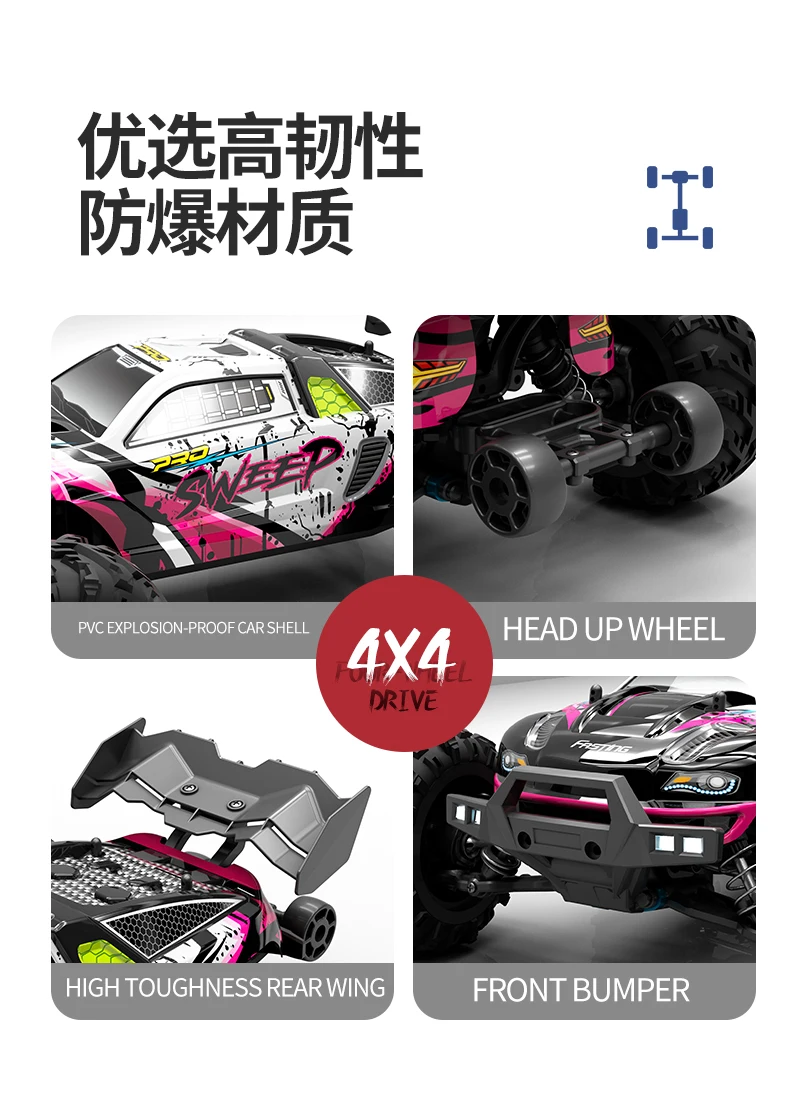

12. The car shell uses high-toughness explosion-proof PVC car shell;
13. Equipped with LED headlights; (three gear modes: always on, slow flash, fast flash);
14. Equipped with head-up wheels;

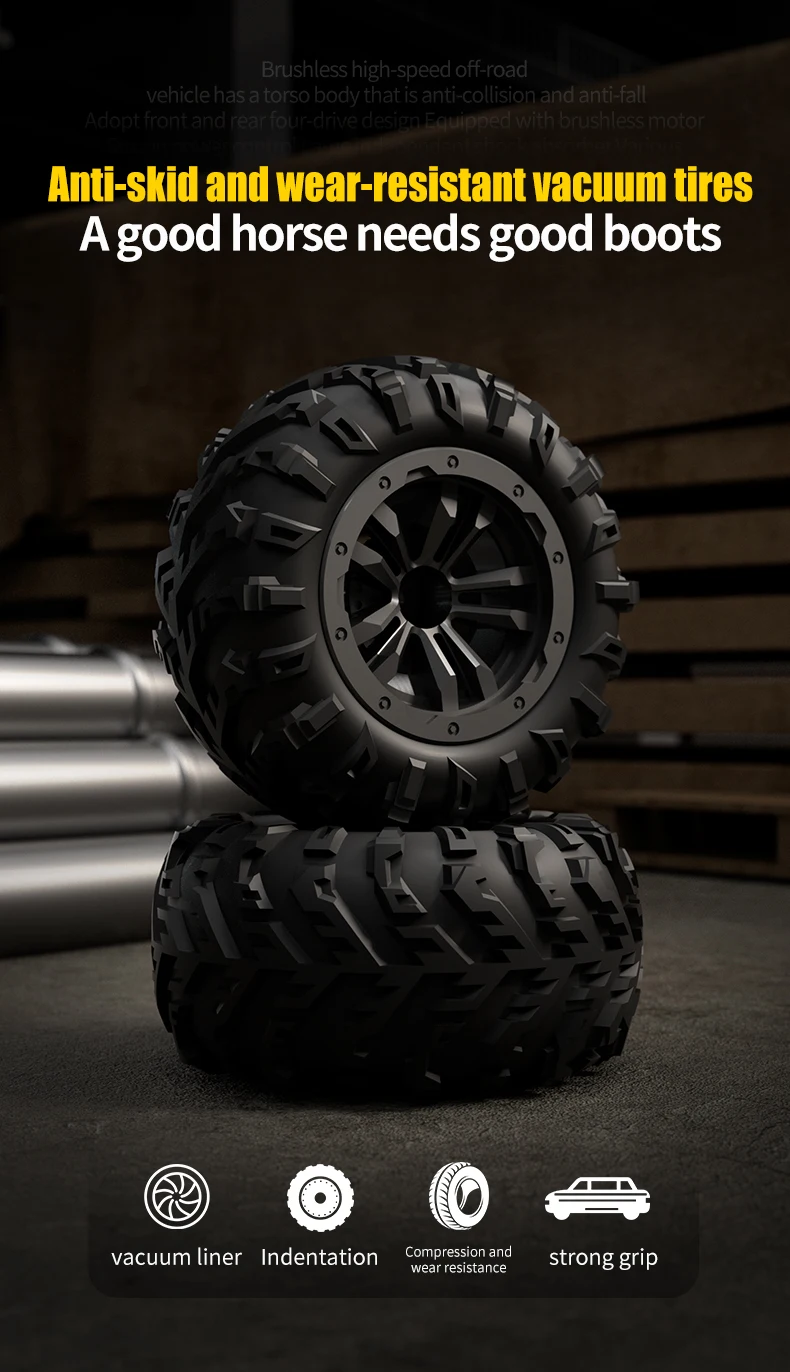

15. Simulation of big-foot tires, strong grip;

Product List

1) Complete vehicle;
2) Remote control;
3) Manual in Chinese and English;
4) Lithium battery;
5) USB balance charger;
6) Tail wing;
7) Head-up wheel;
8) Shock absorber adjustment buckle;
9) Metal latch;
10) Phillips screwdriver;
11) Hexagon socket;
12) Brushless version instruction booklet insert
