SPECIFICATIONS

Brand Name: YTDMEN

Choice: yes

Condition: New

Hign-concerned Chemical: None

Max. Operating Voltage: 160V

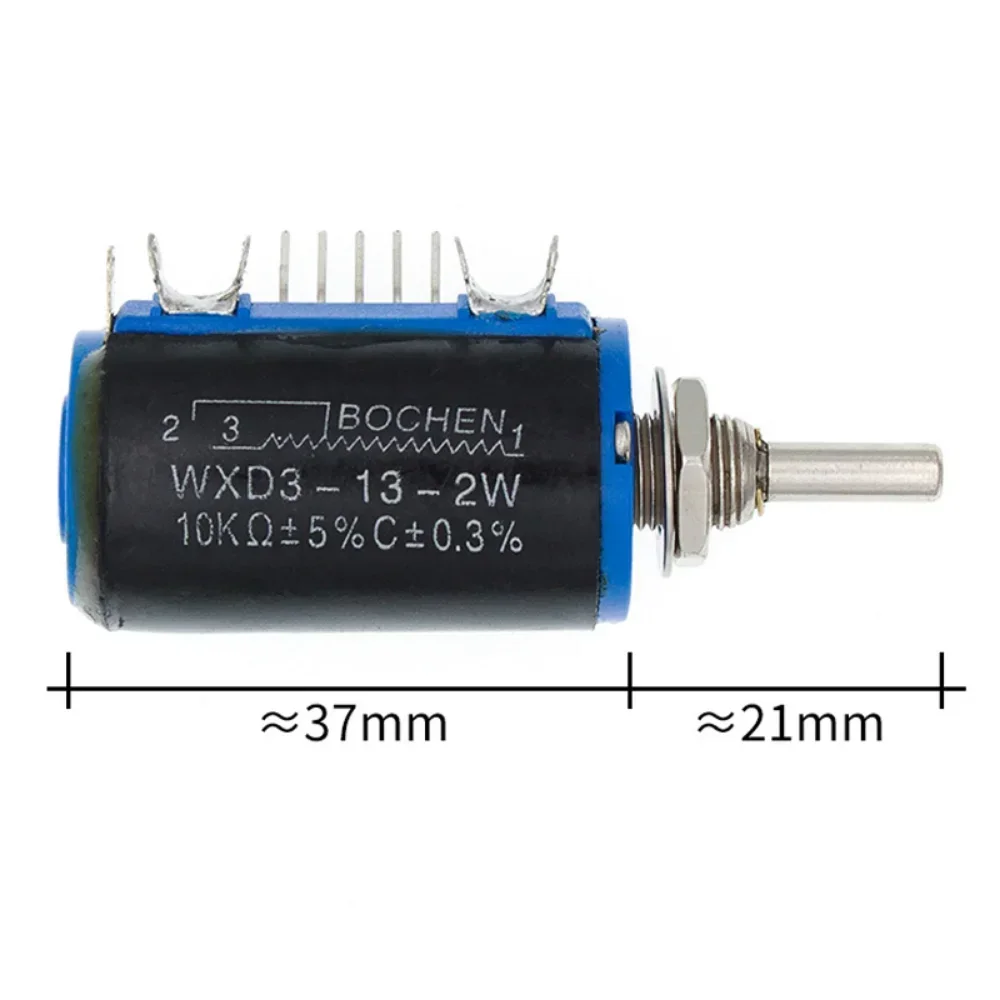

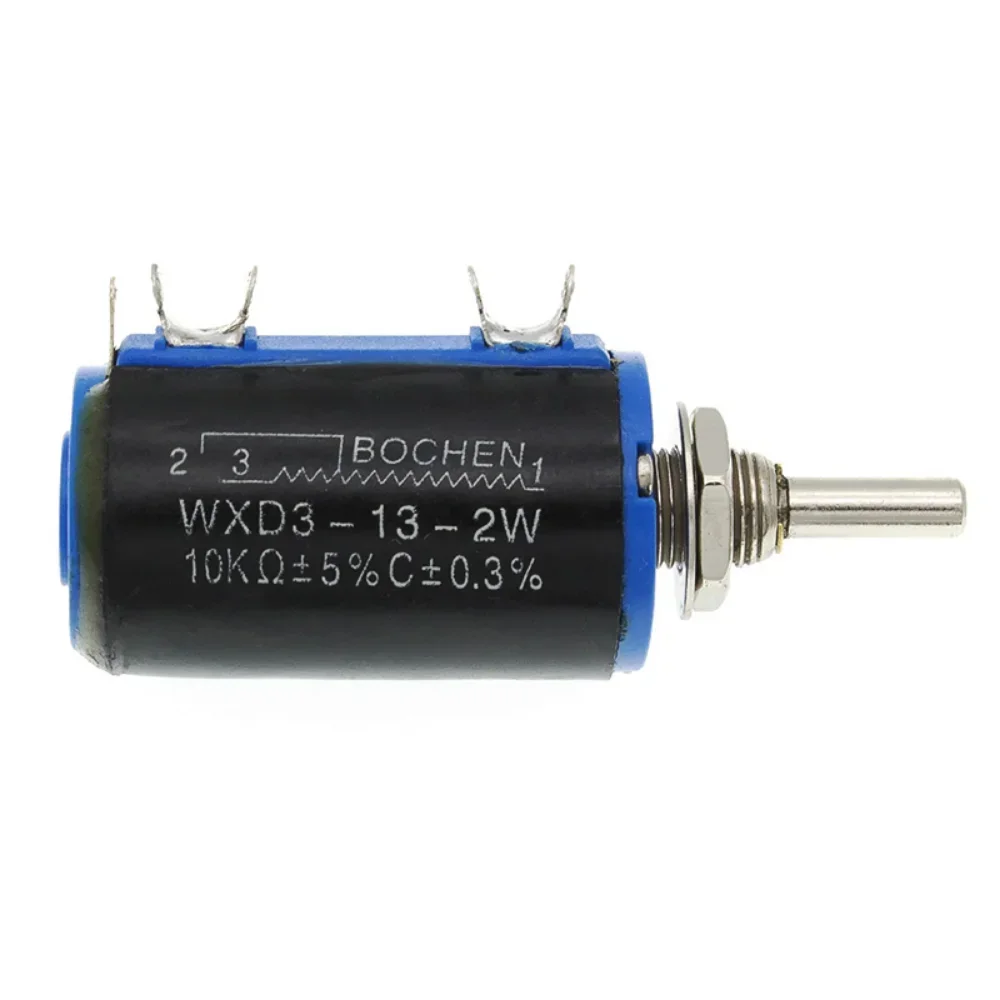

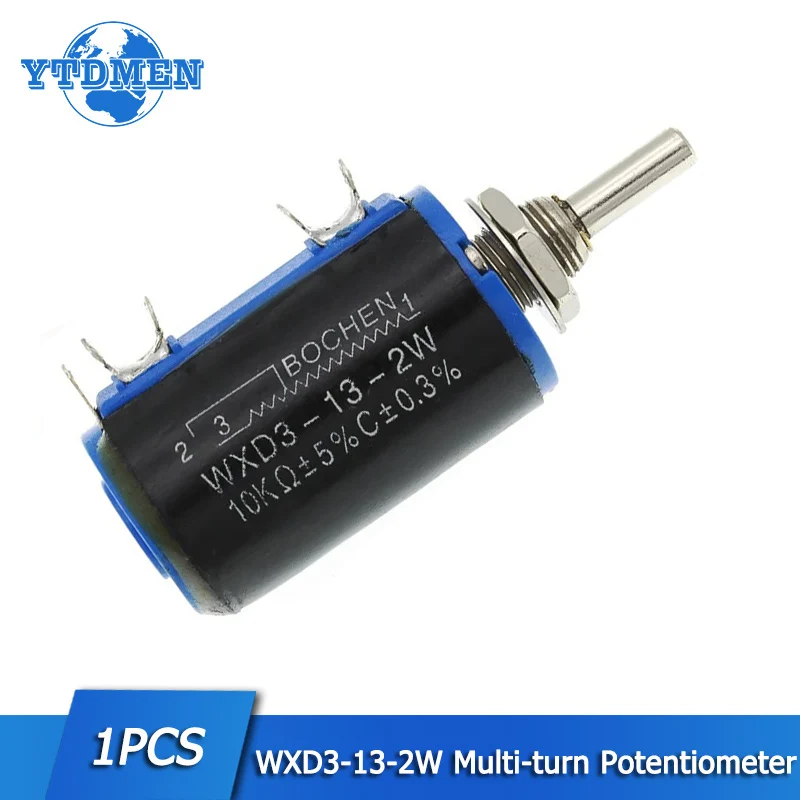

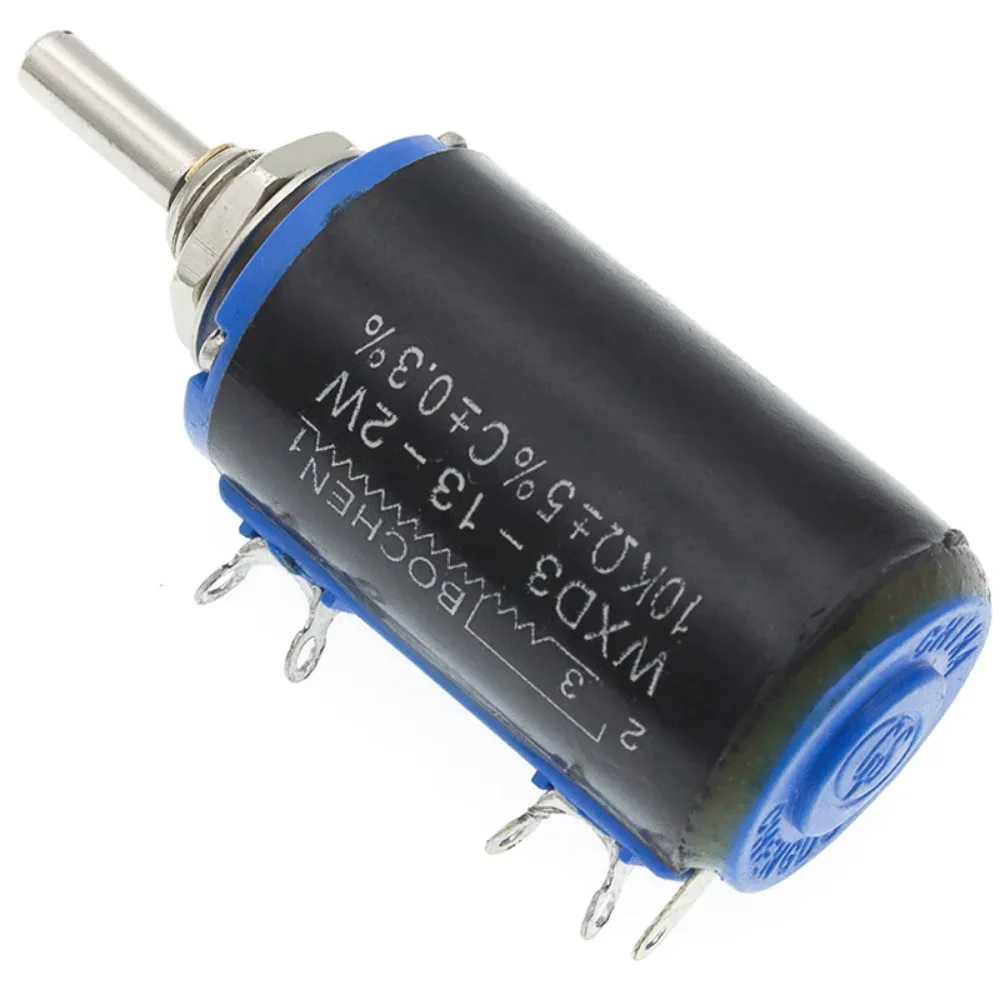

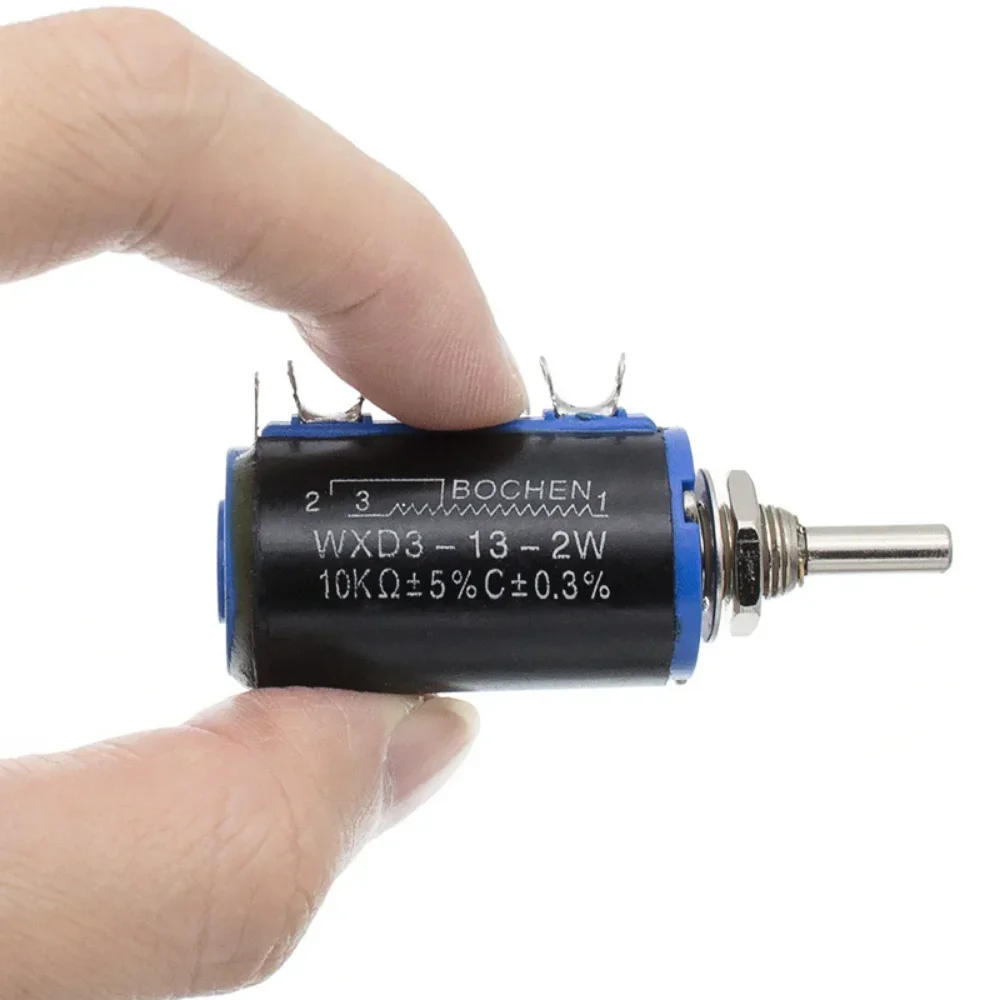

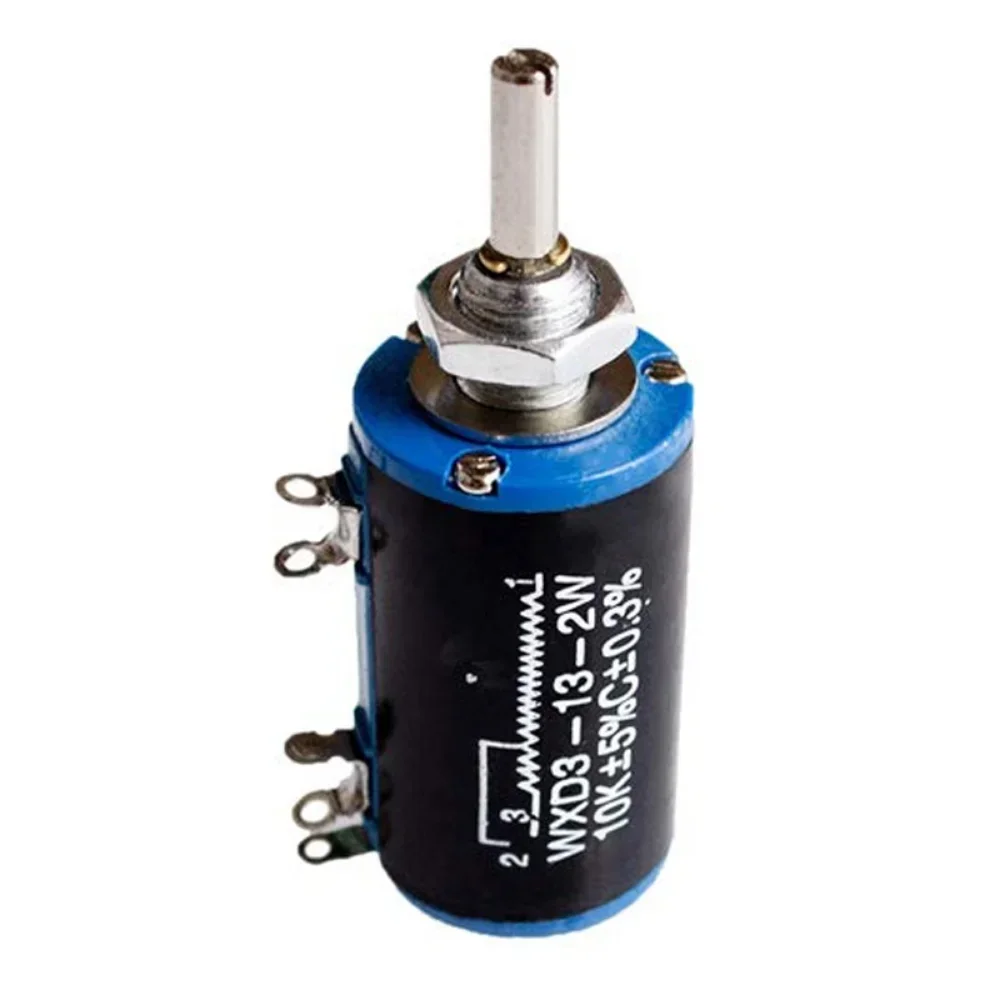

Model Number: WXD3-13-2W Precision multi-turn potentiometer

Operating Temperature: -55 – 125 C

Origin: Mainland China

Rated Power: 2W

Resistance Tolerance: +-5%

Size: 5pin

Technology: Metal alloy

Type: Wirewound Potentiometer

is_customized: Yes

Description:

100R-(10 laps WXD3-13),200R-(10 laps WXD3-13),220R–(10 laps WXD3-13),470R-(10 laps WXD3-13),680R-(10 laps WXD3-13),1K-(10 laps WXD3-13),2K2-(10 laps WXD3-13),3K3-(10 laps WXD3-13),4K7-(10 laps WXD3-13),5K6-(10 laps WXD3-13),6K8-(10 laps WXD3-13),10K-(10 laps WXD3-13),22K-(10 laps WXD3-13),33K-(10 laps WXD3-13),47K-(10 laps WXD3-13),68K-(10 laps WXD3-13),100K-(10 laps WXD3-13)

Ω resistance range: 100 Ω ~ 100 k

Resistance tolerance: plus or minus 5%

Rotation Angle: 20° to 3600 °+

Laps: 10 laps

Rated voltage :160V

Starting moment :3.5~ 100mn.m

Rated power: 2 w (85 °C) 0 w (125 °C)

Linear accuracy: plus or minus 0.3%

Mechanical durability: 10,000 weeks
