Description
SPECIFICATIONS
Battery Included: No
Brand Name: vbpbsql
Certification: None
Choice: yes
Hign-concerned Chemical: None
Model Number: 2060-800041-003
Origin: US(Origin)
Products Status: Used
Type: Industrial Computer Accessories
semi_Choice: yes
My dear friend: Each hard drive is paired with a BIOS and a main control chip on the circuit board, so you need to replace the BIOS and the main control chip after receiving the product. Only then can the computer recognize the hard drive and use it normally. If you don’t have the tools, you can find a local electrical repair shop to help you solder them.
HDD PCB for Western Digital/Logic Board/Board Number:2060-800041-003 REVP1The Hard Disk Drive is not include.

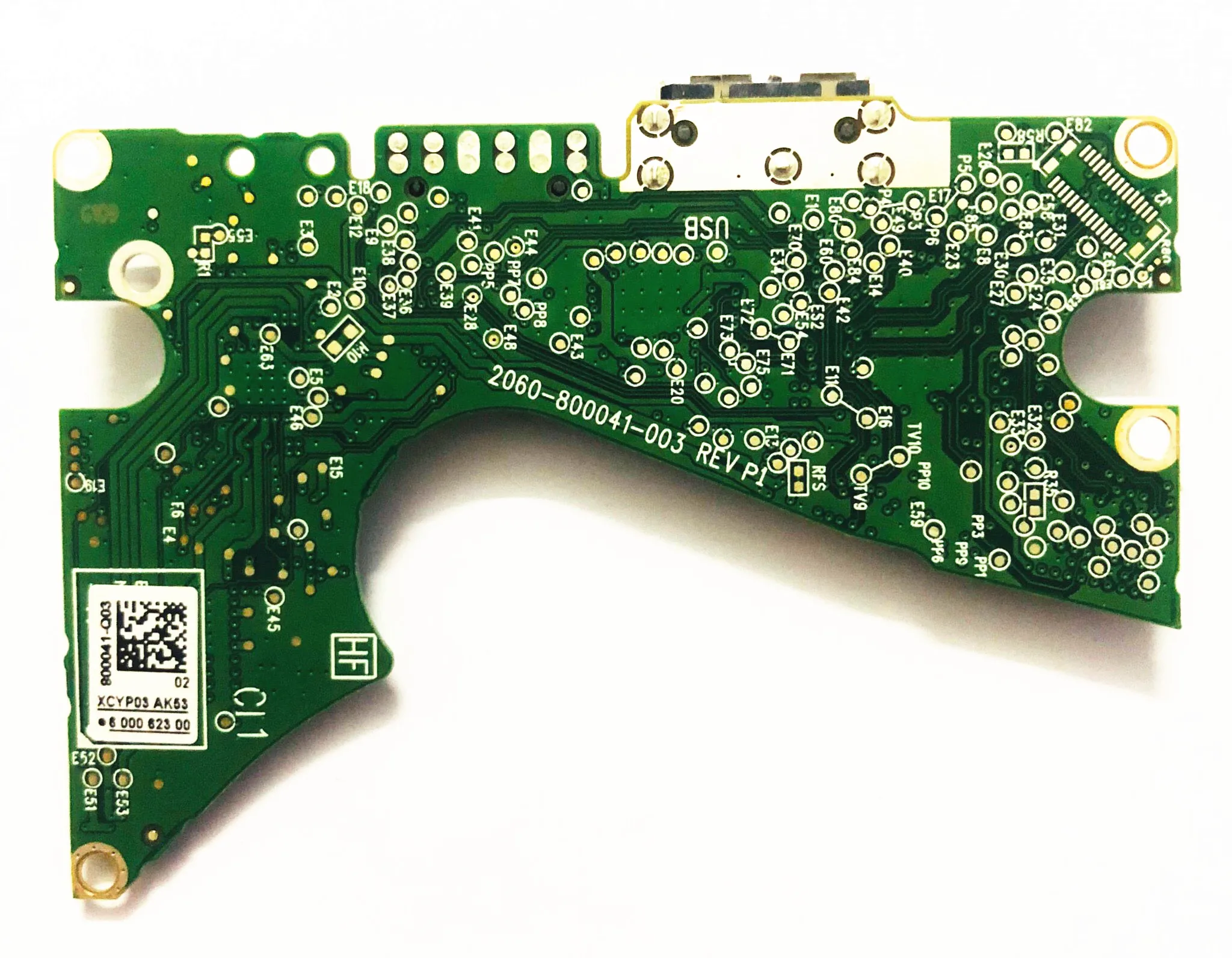

The pcb number position
Please Note:
1.These boards are used, the circuit board components not falling, the interface did not break.
2. All PCB have been tested before shipping. If the PCB is faulty during shipping, please inform us immediately after your received it.
3. If you are not sure the PCB is compatible with your HDD or not. Please contact us
Replacement the PCB only can solve the problem that is caused by the PCB faulty and HDD failures are not always caused by the PCB faulty. This PCB is not guaranteed to fix your HDD.
Main Controller IC:88I1047-NBD2
HDD Motor Combo IC: B22AA
Board Number: 2060-800041-003 REV P1(Please make sure your original PCB board number is same as our PCB)
Remarks: If your HDD firmware, date code and site code is different. You can swap the BIOS chip from original PCB to the replacement PCB, to make the replacement PCB compatible with your HDD.

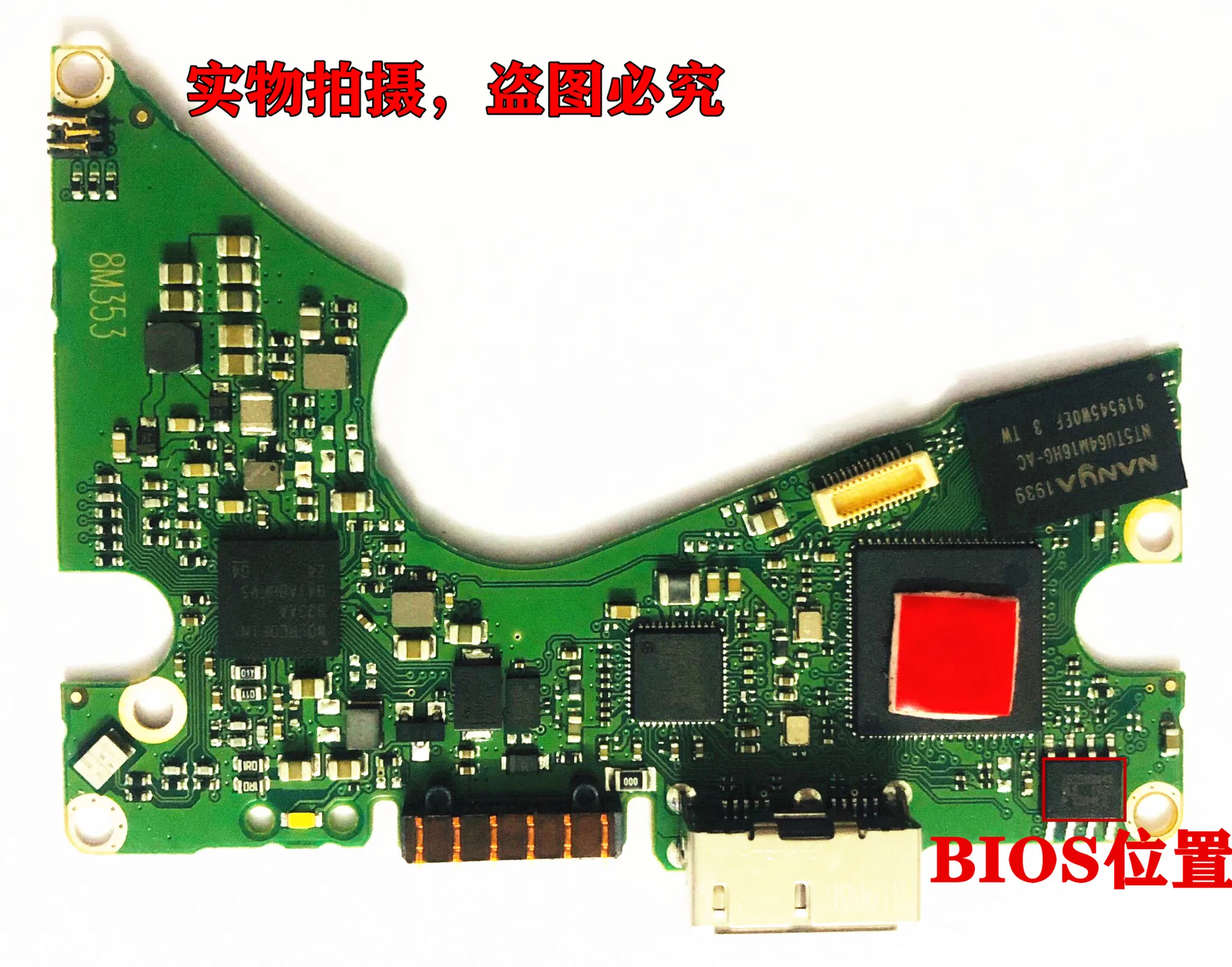

the BIOS chip position

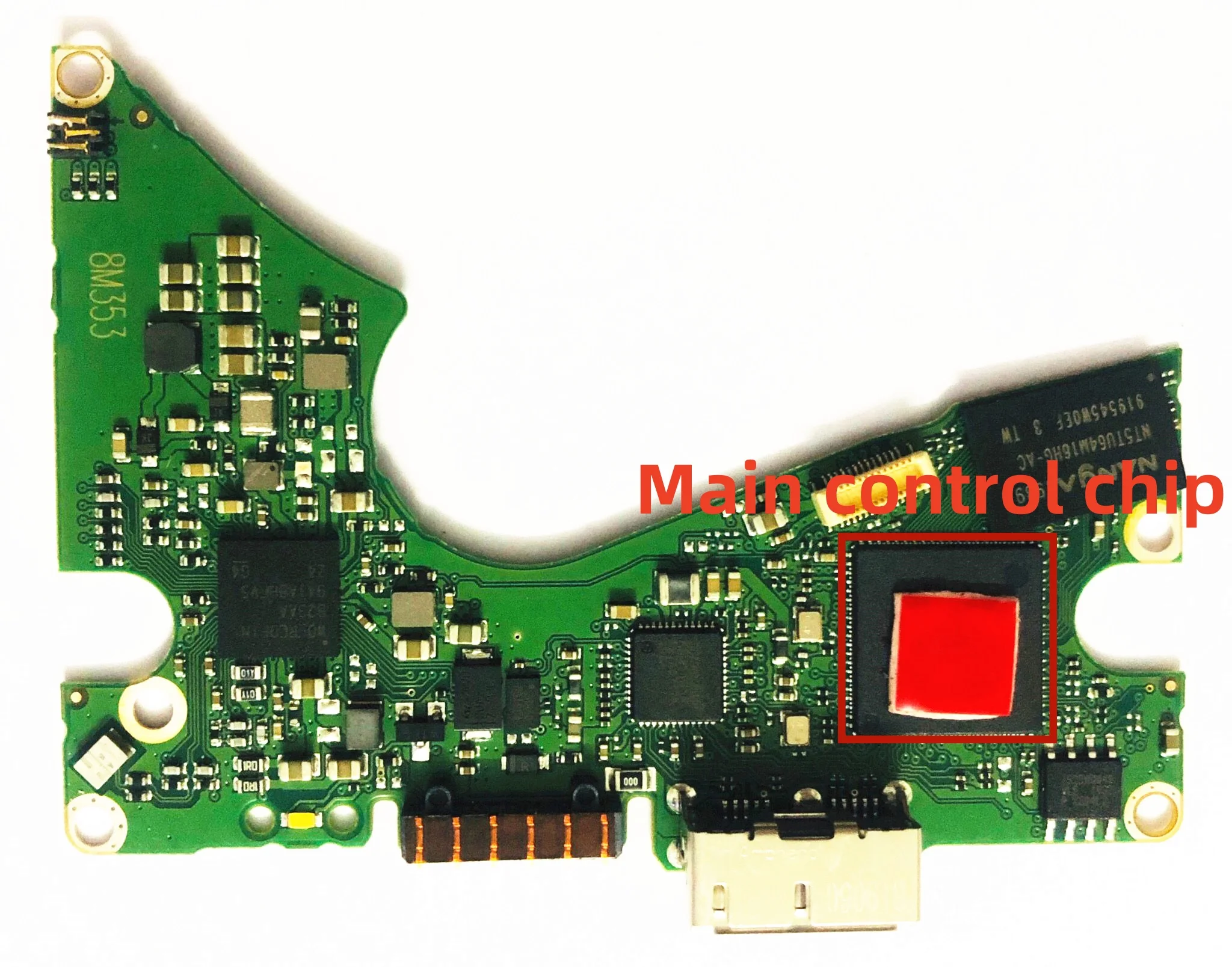

Master control chip location
Attention: Replacement the PCB only can solve the problem that is caused by the PCB faulty. If your HDD having the following problem.
Symptoms of failure:
The drive will power up normally (no ticking noises, errors etc) but will not be recognized by the computer
The drive will power up normally and be recognized correctly but will report a size of 0 bytes
The drive will power up but report SMART errors on boot
Replacement the PCB may not solve the above problem. These problem is caused by the HDD firmware corrupted.
