Description:

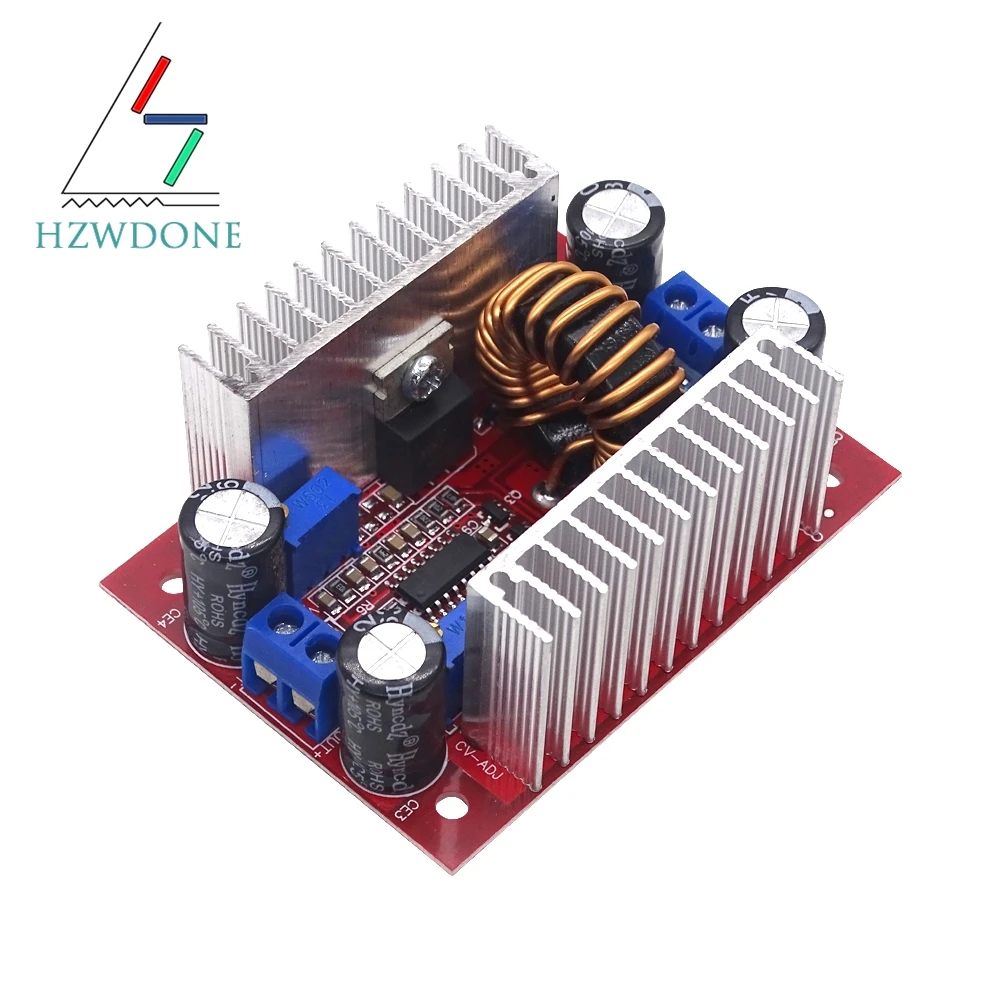

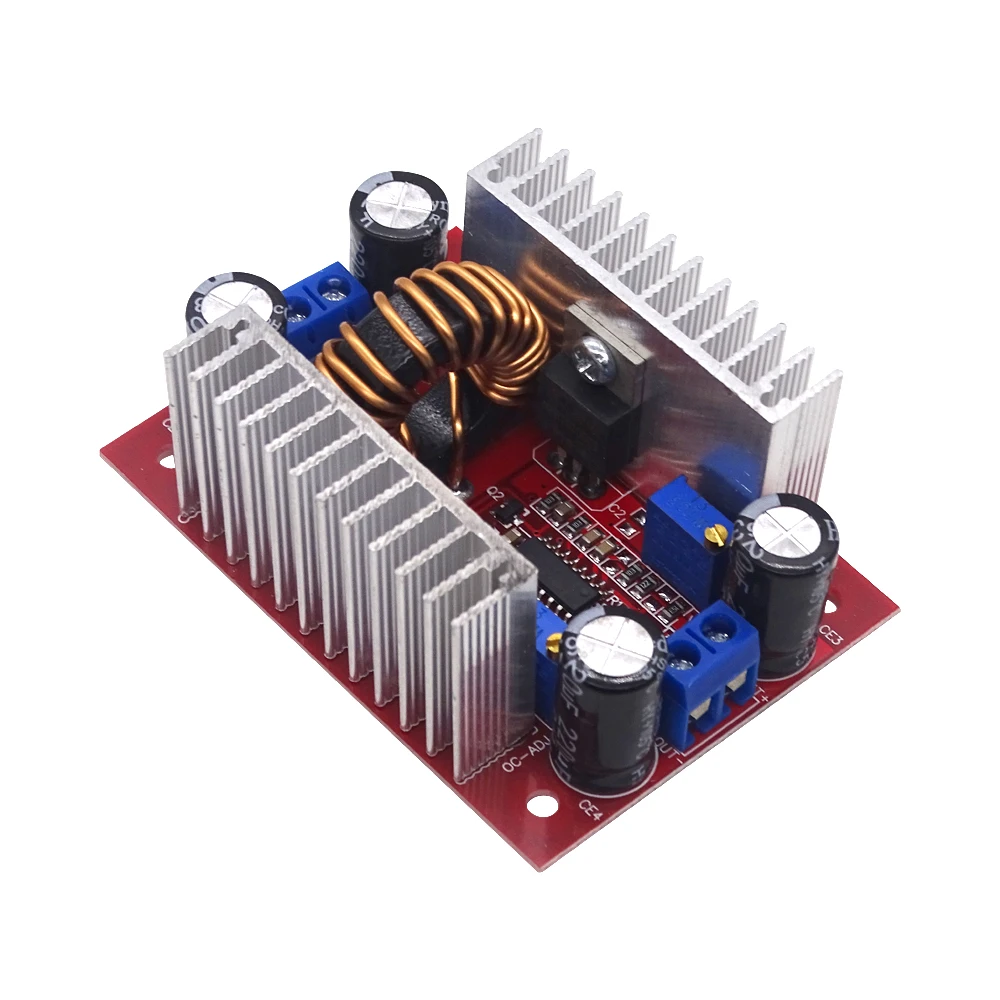

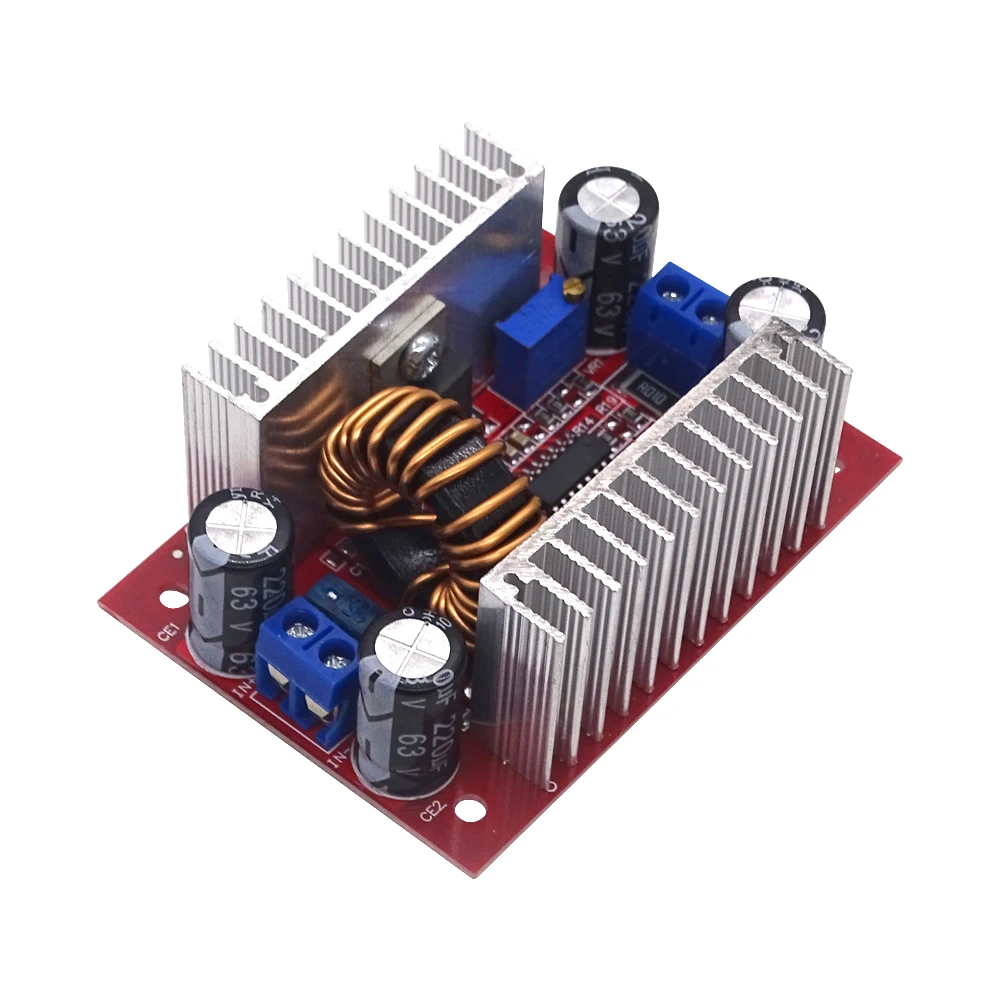

Module name :400W boost constant current module

Module properties: non-isolated step-up module (BOOST)

Input voltage: DC8.5V-50V

Input current: 15A (MAX) exceeds 8A please enhance heat dissipation

Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)

Output voltage: 10-60V continuously adjustable

Constant] range: 0.2-12A

Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

Operating frequency: 150KHz

Conversion efficiency: up to 96%

Overcurrent protection: yes

Input reverse polarity protection: no

Installation: 4 2.55mm screw holes

Connection method: Connection Output

Module size: 67mm X48mm X 28mm (LxWxH)

Single module: 90 g

Applications:

1. DIY a power supply, 12V can input and output can 12-50V adjustable.

2. the power supply for your electronic device, according to your system can set the output voltage value.

3. as the car power supply for your laptop, PDA or a variety of digital products supply.

4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.

5; solar panel regulator.

6 to the battery, rechargeable lithium batteries.

7. driving high-power LED lights.
