Description

SPECIFICATIONS

Attention DC5V (power supply), no no-load use is allowed. Use 4 nozzles at the same time, otherwise it may cause board burning!: Attention: DC5V (power supply), no no-load use is allowed. Use 4 nozzles at the same time, otherwise it may cause board burning!

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: 2.5-3W

Hign-concerned Chemical: None

Material 1.2MM FR-4: Power plug: TYPE-C interface

Origin: Mainland China

Quantity: 1

Rated voltage DC5V (power supply): Rated current: 300MA (minimum 2A)

Supply Voltage: DC5V

Type: Module

Features:
1.100% brand new high-quality product, made of high-quality materials, compact in size, and easy to install.

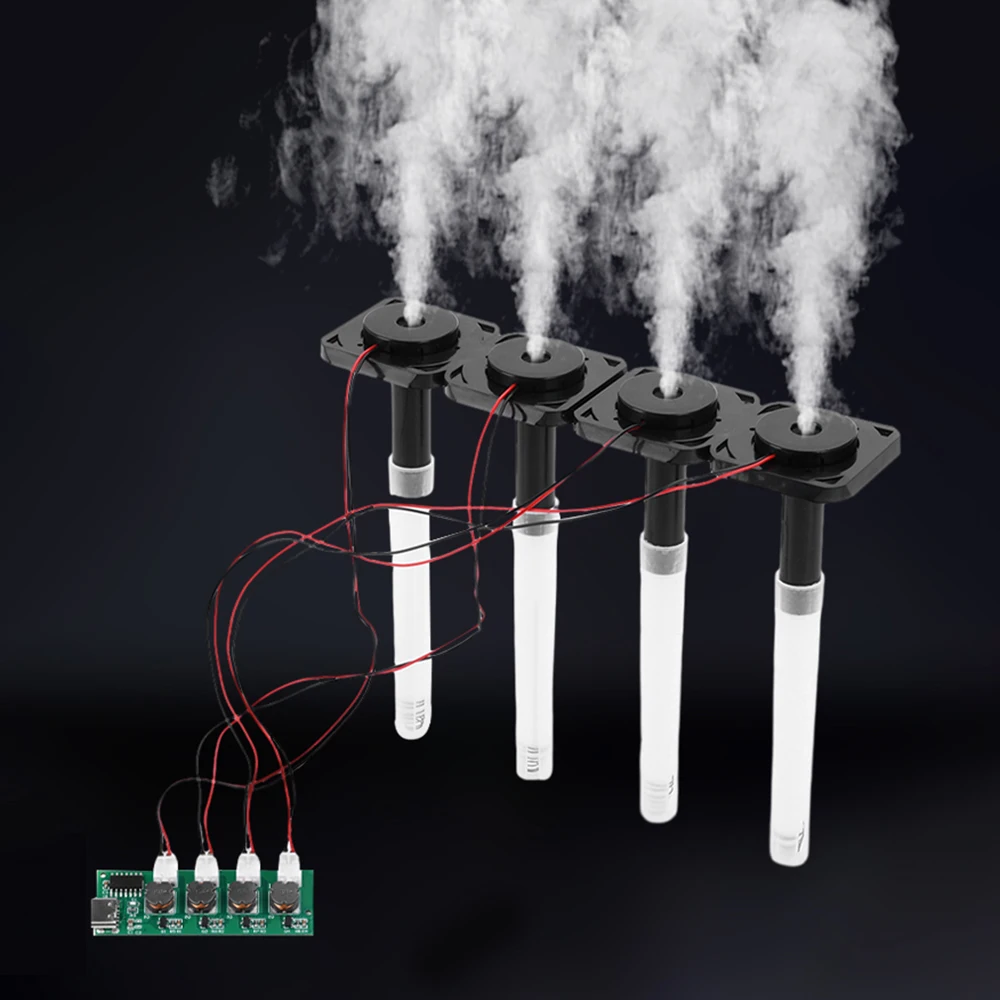

2. Convenient application, four head spray, strong fog volume, continuous spray without switch power on.
3. Upgrade the TYPE-C interface, with strong versatility, high fog output, stable performance, simple use, and easy to get started with.
4. High efficiency and stability, spray when electrified, long service life.
5. Wide range of applications: DIY self-made, plant moisturizing, product application, module set ready to use, each set of modules with brackets and cotton swabs, easy to assemble.

Parameter:

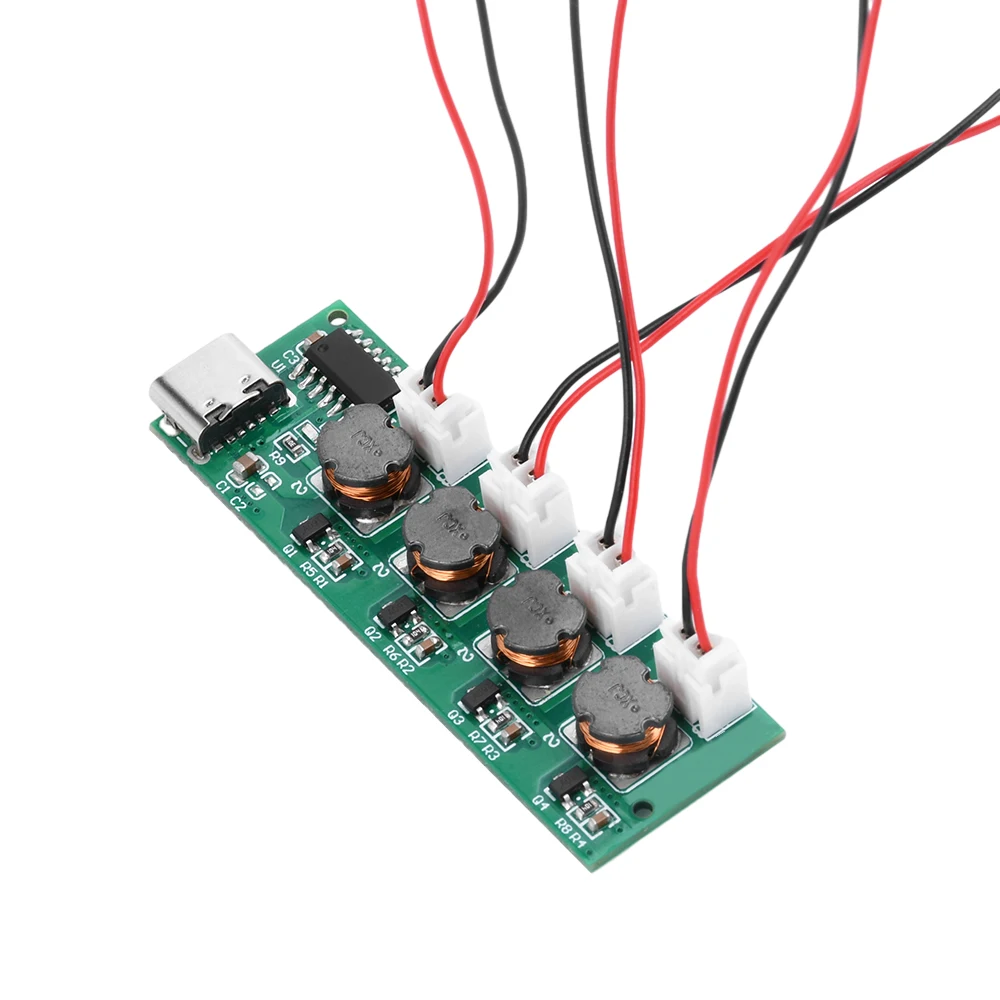

Name: Unswitched atomization drive board
Material: 1.2MM FR-4
Power plug: TYPE-C interface
Rated voltage: DC5V (power supply)
Rated current: 300MA (minimum 2A)
Power: 2.5-3W
Atomization frequency: 108KHZ ± 2KHZ

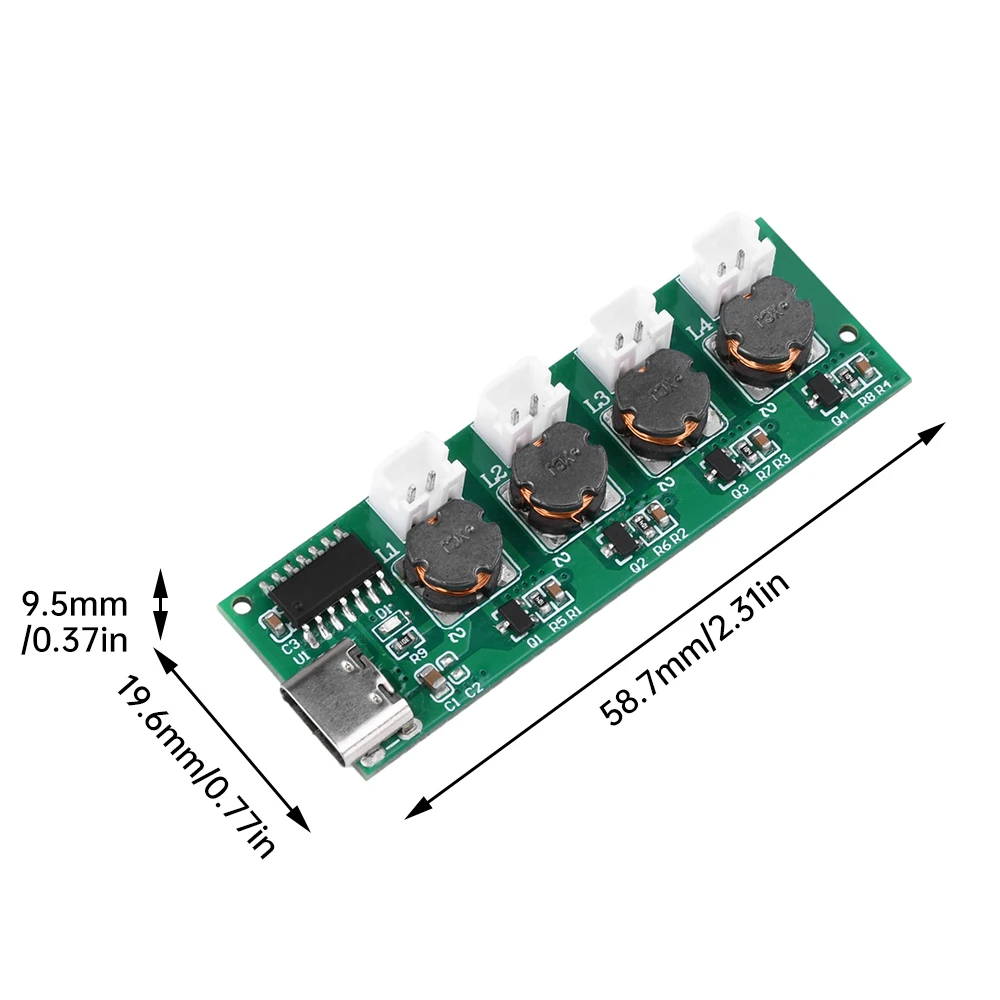

Module: 57 * 19MM
Cotton swab: 7 * 121MM
Nebulizer parameters:
Drive voltage: 5V
Resonant frequency: 108-110KHZ ± 5
Rated power: 2W
Punch count: 1100
Aperture: 4-5UM
Outer diameter of silicone sleeve: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16MM

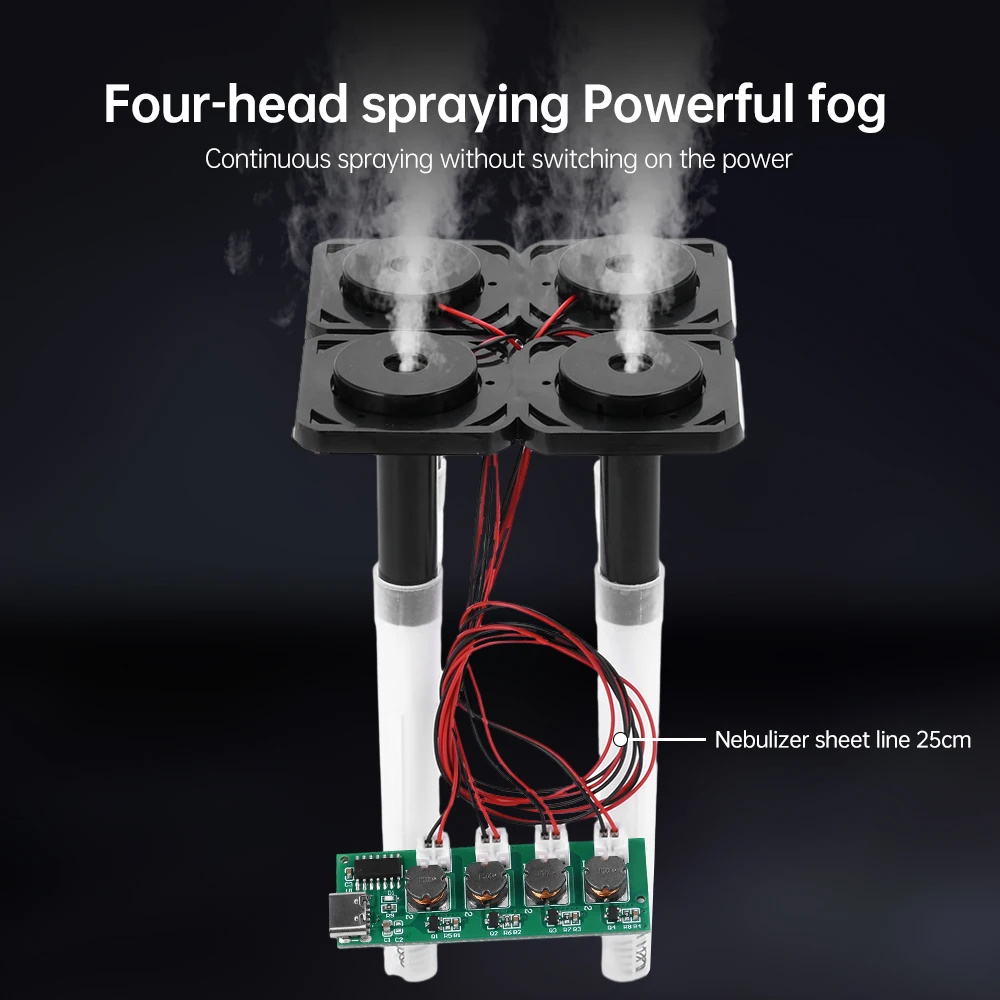

Line length: 25CM
Wire terminal: PH2.0

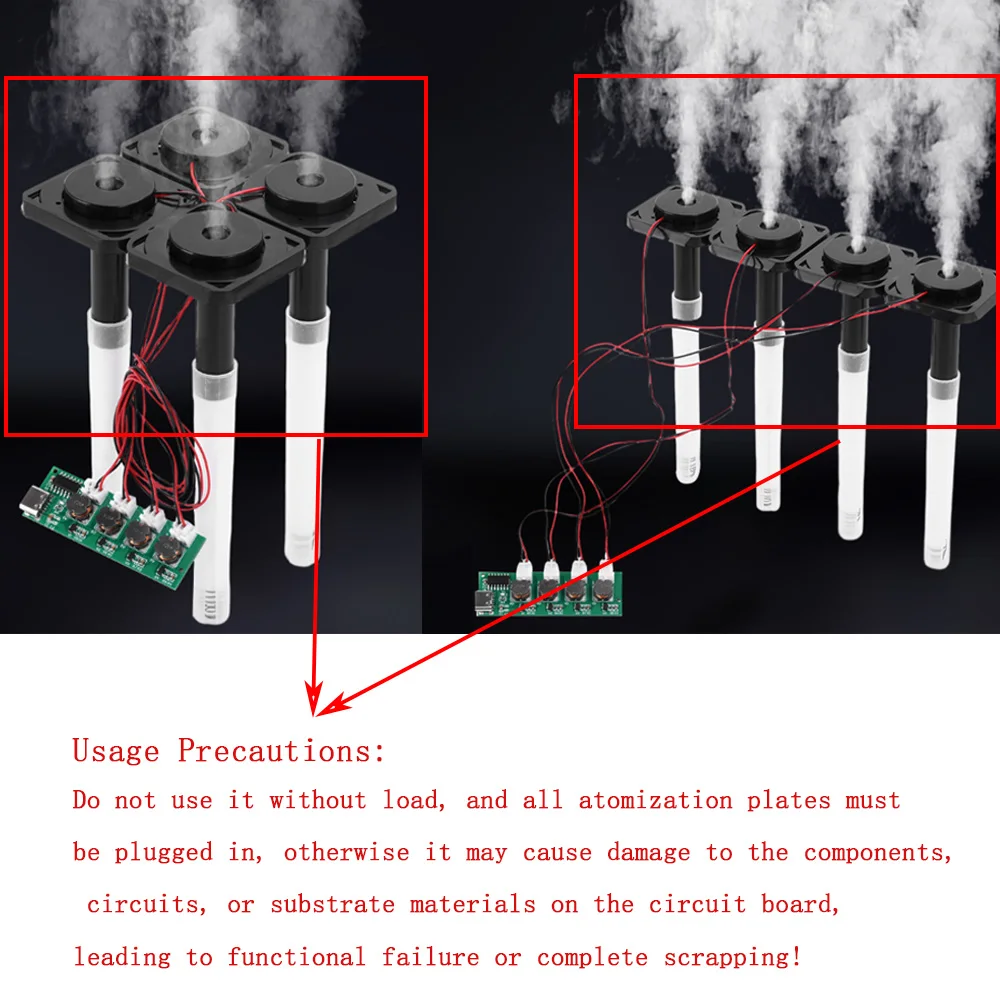

Attention: DC5V (power supply), no no-load use is allowed. Use 4 nozzles at the same time, otherwise it may cause board burning!

usage method:

1. First, install the atomizer bracket and cotton swab

2. Connect the atomizing plate to the module atomizing plate port

3. Connect the power supply to the module power port again

4. Press the power switch

5. Spray when the atomizer meets water

matters needing attention:

1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled

2. It is strictly prohibited to power on without connecting the atomizing plate

3. It is strictly prohibited to use fast chargers

4. It is strictly prohibited to modify modules

5. The module must not touch water

6. Full steel sheet (raised surface) in downward contact

Cotton swab absorbs water

7. Rated power input

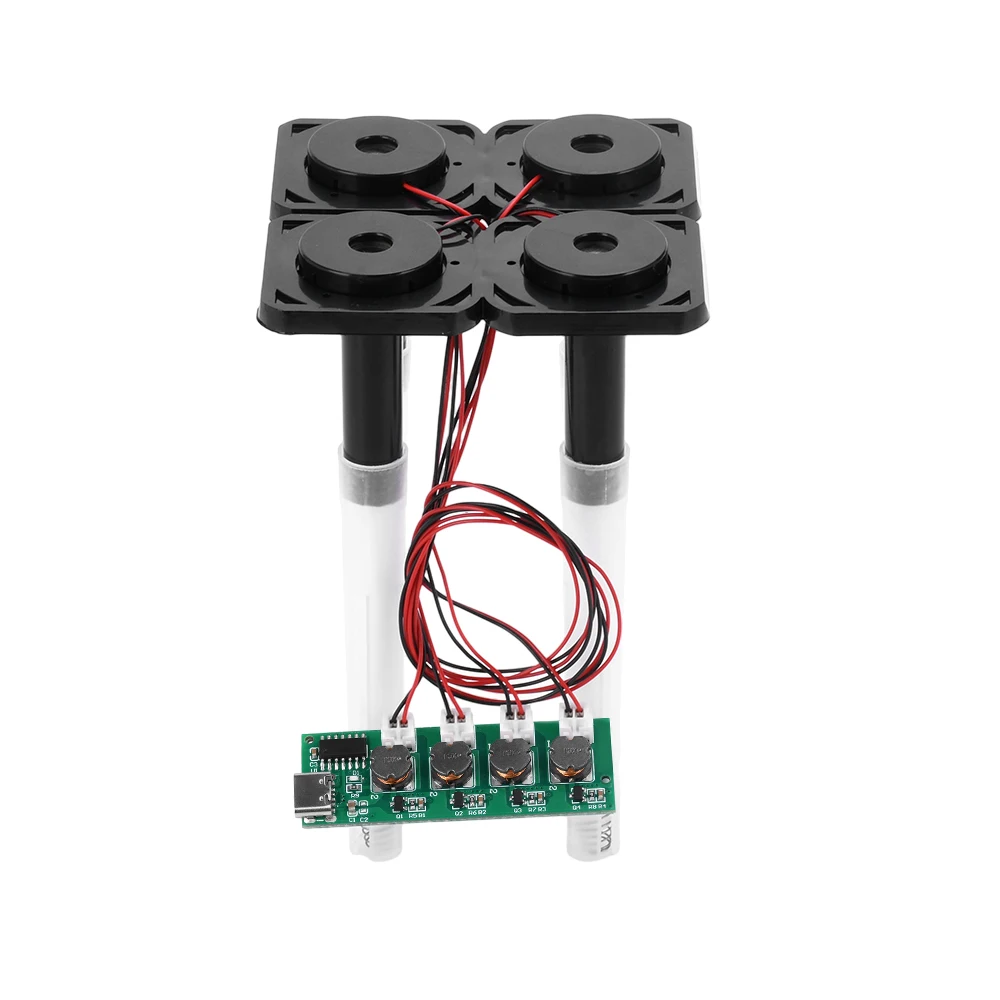

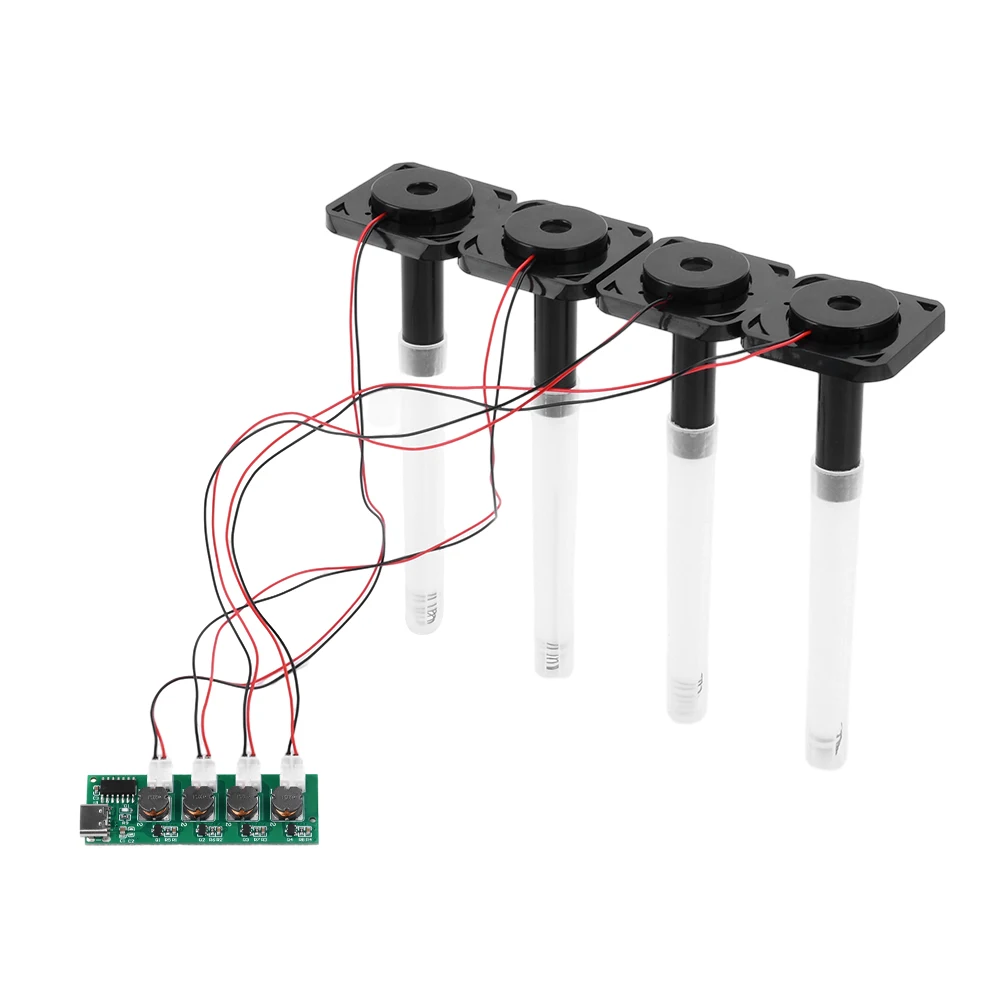

Package include:
Package 1:
1X module

Package 2:
Module * 1
Fixed bracket * 1
Transparent cotton stick holder * 4
Support seat * 4
Spring * 4
Cotton swab * 4
Nebulizer * 4
