Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth
Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth - Image 2
Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth - Image 3
Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth - Image 4
Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth - Image 5
Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth - Image 6
Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth - Image 7

Guition ESP32S3 8M PSRAM 16M FLASH 5-inch IPS 800*480 high-definition LCD display module Capacitive touchwith WIFI and Bluetooth

$60.50

SPECIFICATIONS Brand Name: GUITION Choice: yes Display Mode: 300:1 Hign-concerned Chemical: None Model Number: JC8048W550 Origin: Mainland China Resolution: 800*480 is_customized: Yes Data download link: http://pan.jczn1688.com/directlink/1/HMI%20display/JC8048W550.zip Hardware Feature of JC8048W550C_I 5.0” LCD-TFT Capacitive HMI touch display module Supports WiFi and Bluetooth Support lithium battery power supply Capacitive touch 800 x 480 screen resolution RGB 65K […]

SKU: d3ccpfuq1l4g0080pj50
Category:

Description

SPECIFICATIONS


Brand Name: GUITION

Choice: yes

Display Mode: 300:1

Hign-concerned Chemical: None

Model Number: JC8048W550

Origin: Mainland China

Resolution: 800*480

is_customized: Yes


Data download link:

http://pan.jczn1688.com/directlink/1/HMI%20display/JC8048W550.zip

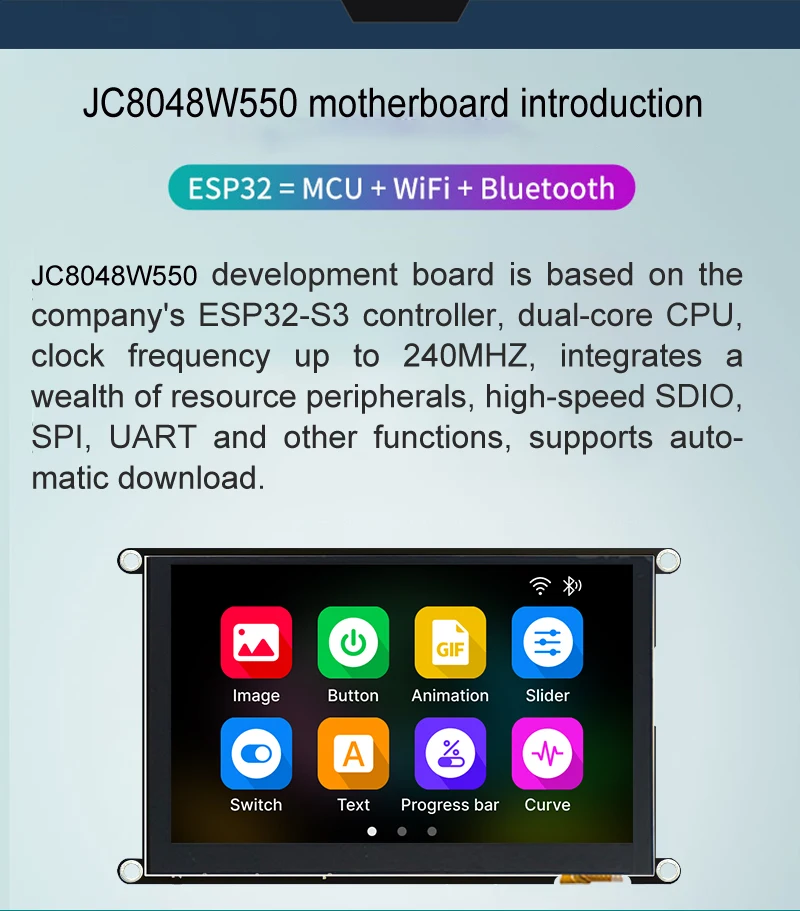

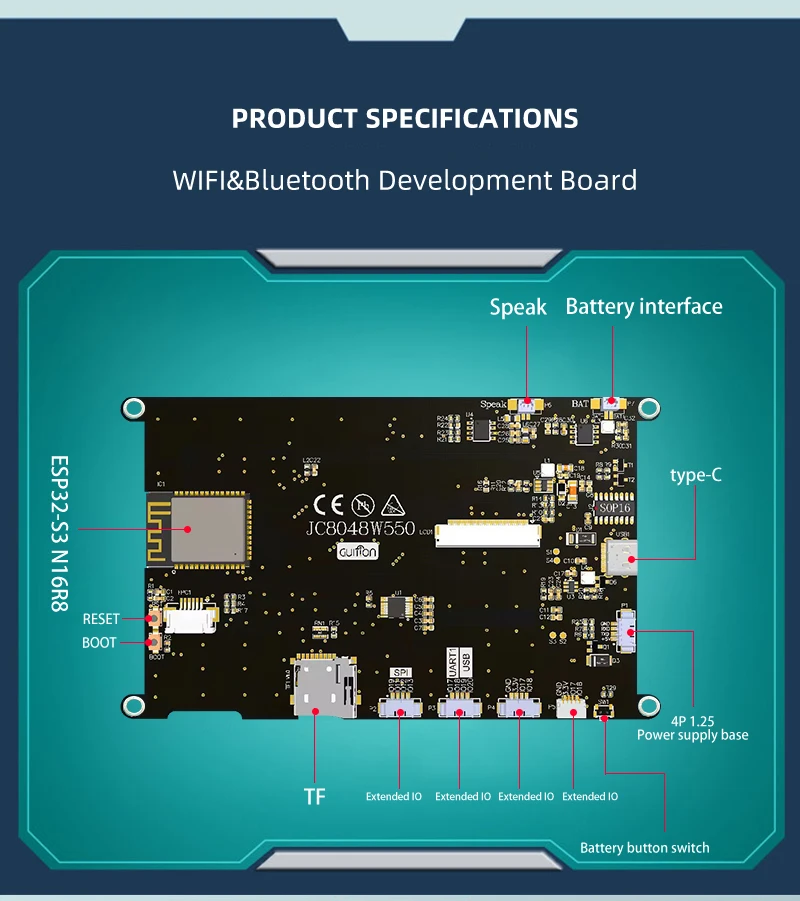

Hardware Feature of JC8048W550C_I

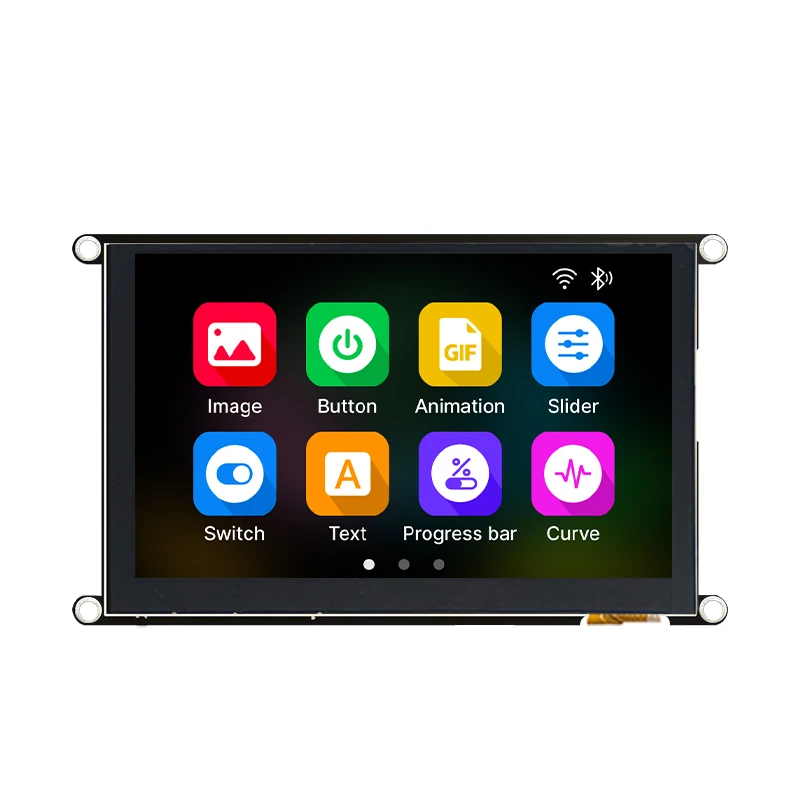

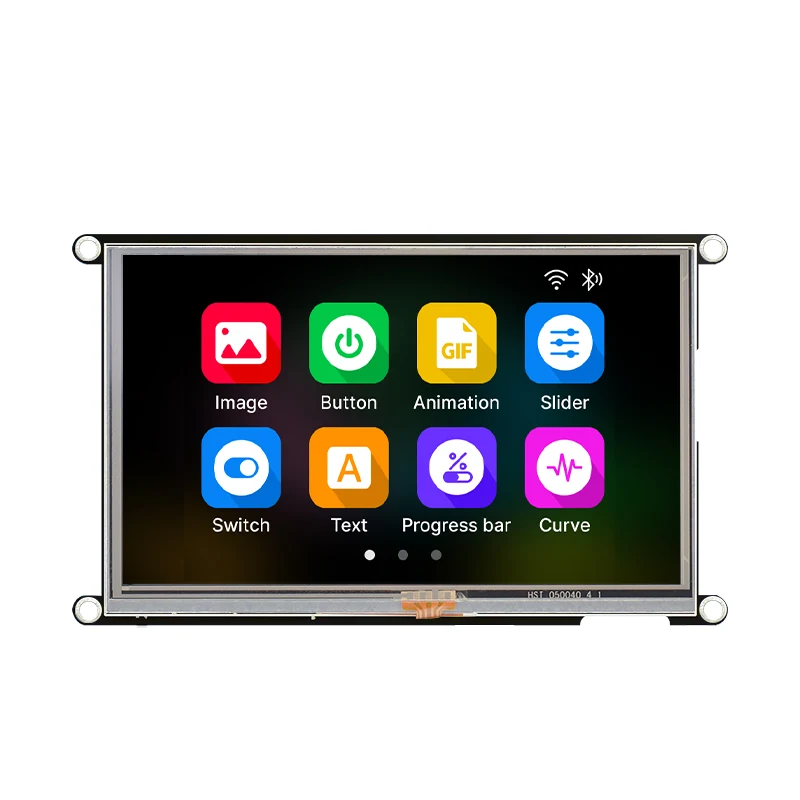

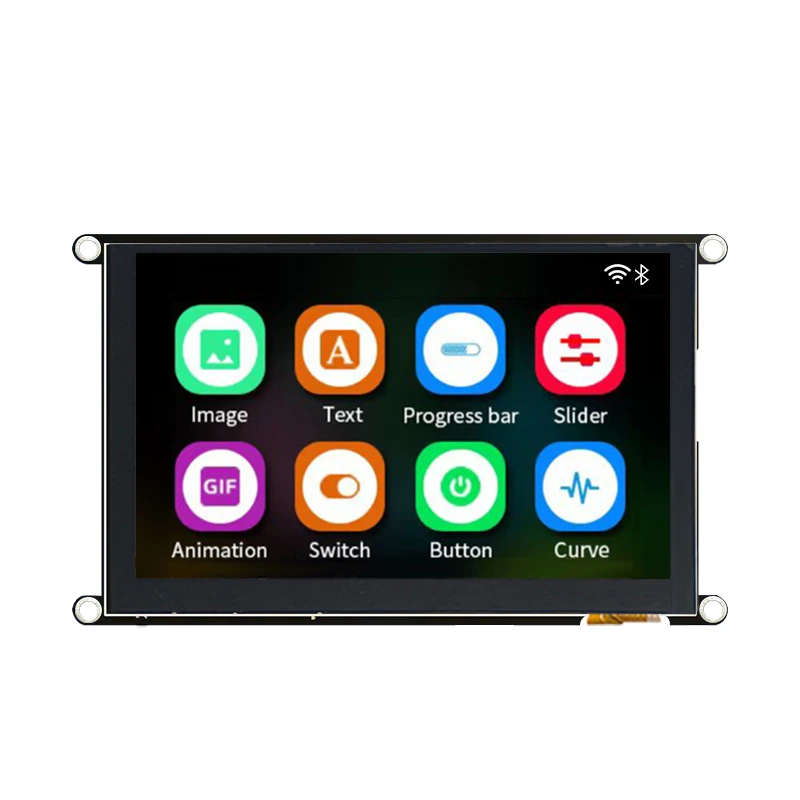

5.0” LCD-TFT Capacitive HMI touch display module

Supports WiFi and Bluetooth

Support lithium battery power supply

Capacitive touch

800 x 480 screen resolution

RGB 65K true-to-life colours

IPS glass panel

Onboard 240MHz LX6 MCU

520K Byte RAM

8 MB PSRAM

16 MB Flash memory

JST1.25 4 Pins (+5V, TX, RX, GND) TTL serial interface

Additional information

Color

IPS Capacitive touch
