SPECIFICATIONS
Battery Included: No
Brand Name: OPEN-SMART
Certification: None
Choice: yes
Color: Blue
Hign-concerned Chemical: None
Model Number: DC Voltage Sensor
Origin: Mainland China
Package: Yes
Products Status: Stock
Type: Industrial Computer Accessories
semi_Choice: yes
Description
Note: If you want to place the bulk order that the stock is not enough, please contact with us.
The voltage detection module is based on the principle of the resistor divider. The measured voltage can be reduced, so that the ADC pin of the board can detect the voltage value after reduction, and the measured voltage can be calculated.
Sampling resistor which is precision resistors, precision of 0.5% and a temperature coefficient of 50PPM, in order to effectively ensure the detection accuracy.
Features
1 Measurement Accuracy<= 1%
2 Measurement range up to 25 VDC
3 Easy to use
4 Standard electronic building blocks Interface
5.4 M2 screw mounting holes for easy installation
Note: Range <= ADC reference voltage / 0.18

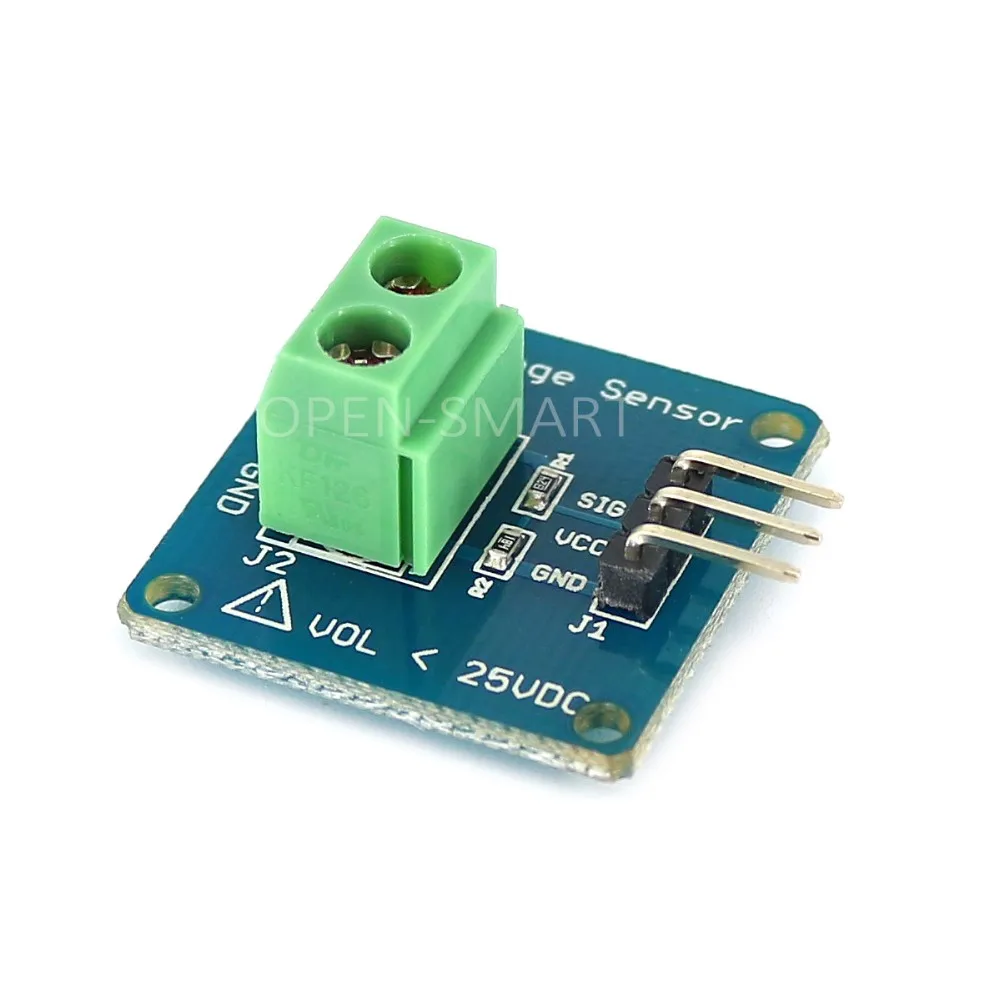

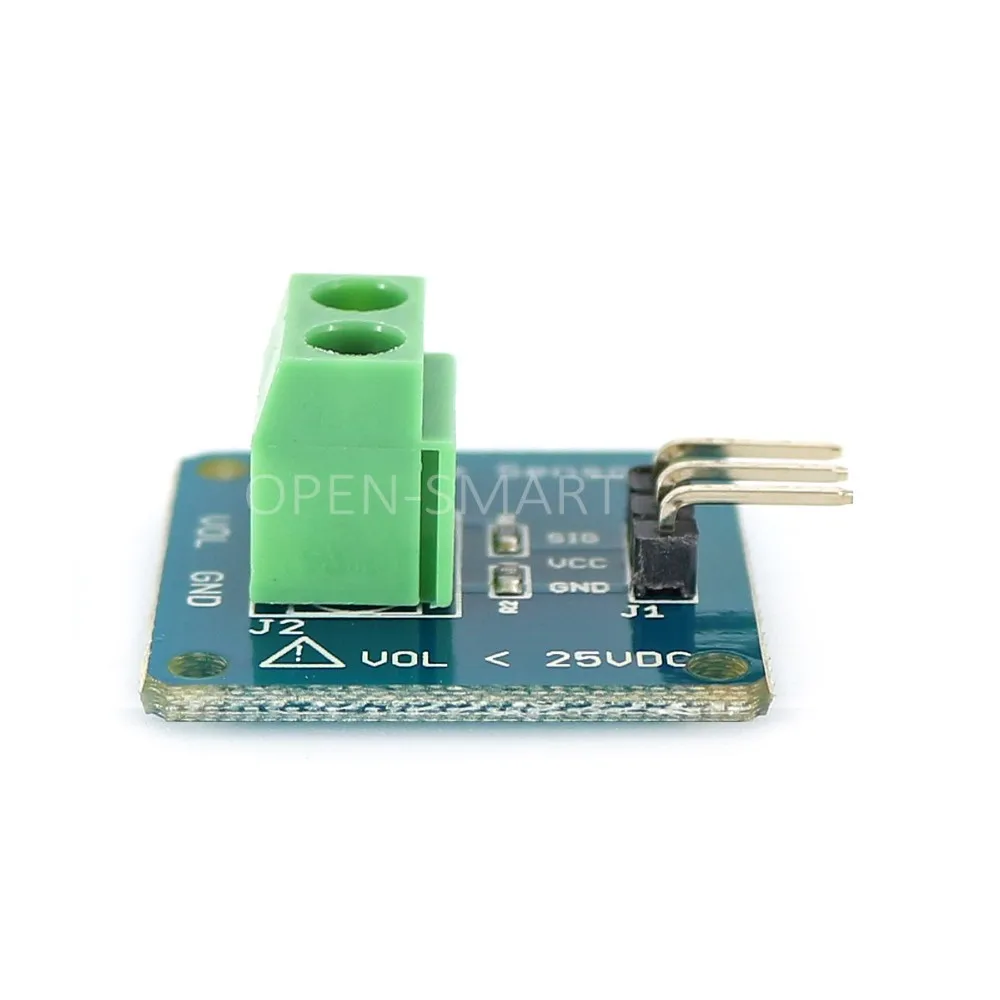

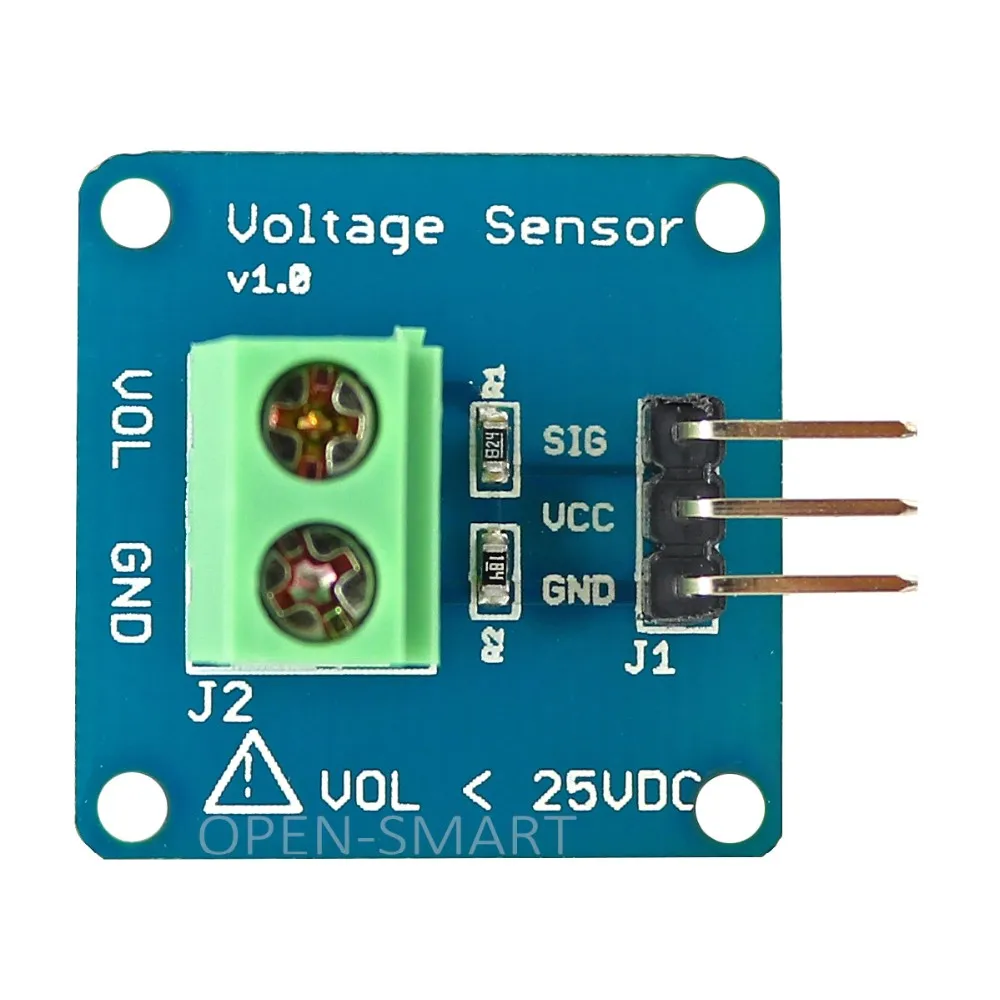

Photos
