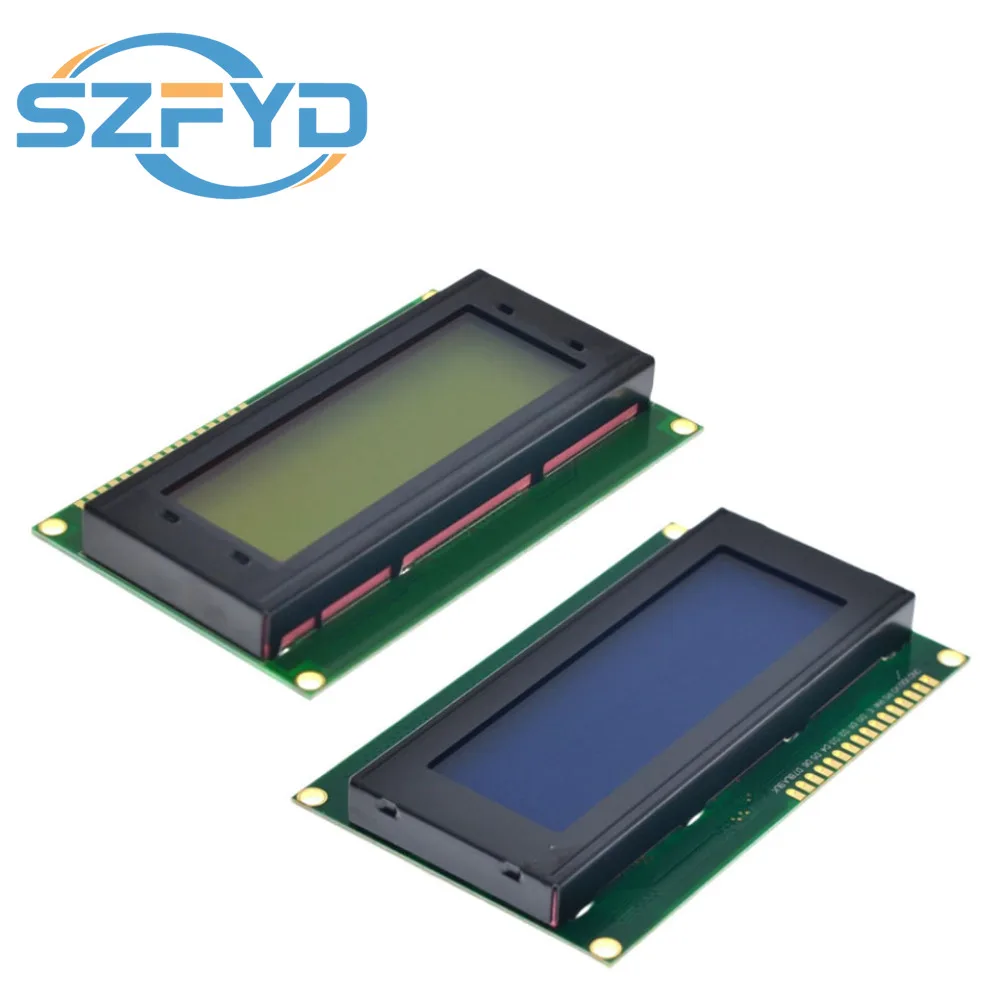

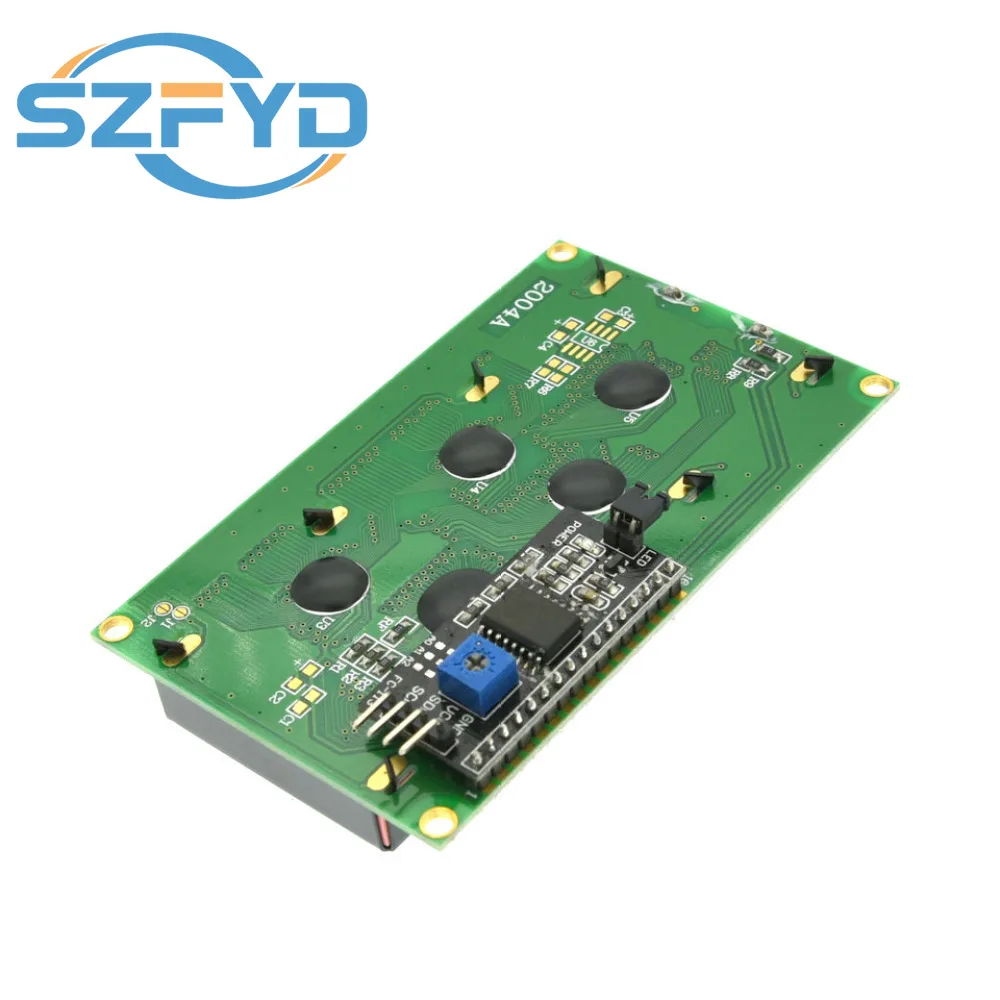

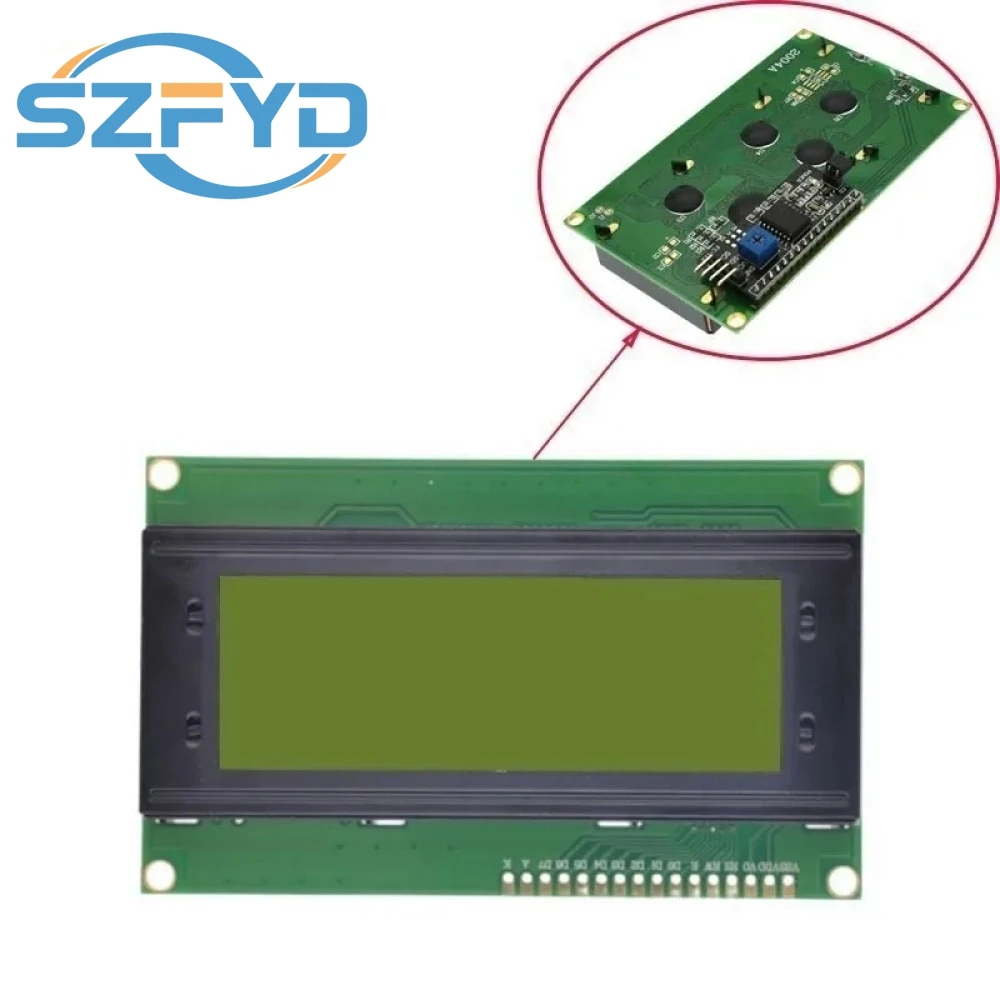

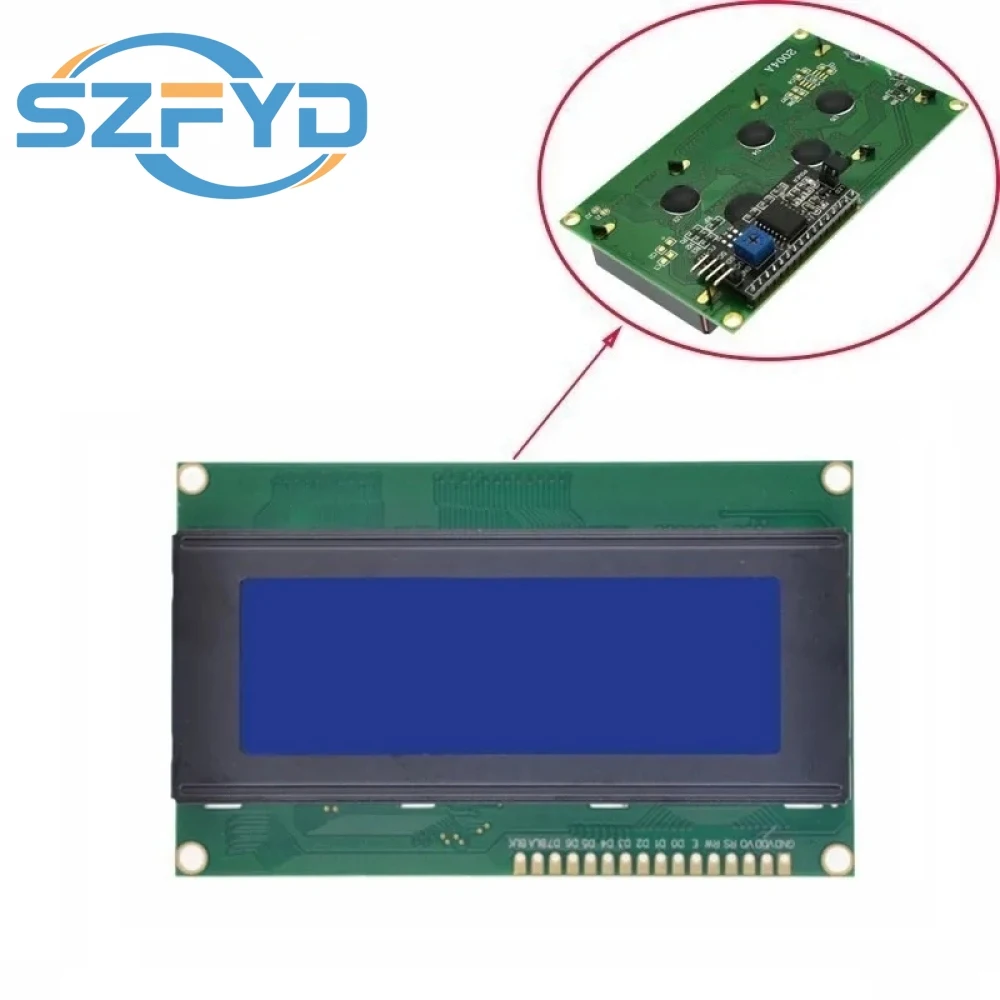

LCD2004 2004 LCD Module Blue/Green/White Screen 20X4 Character LCD Display IIC I2C Serial Interface Adapter Module for Arduino

$7.70

SPECIFICATIONS Brand Name: NoEnName_Null Choice: yes Hign-concerned Chemical: None Model Number: 2004A Origin: Mainland China Tube Chip Color: Blue Use: Indoor is_customized: Yes 2004 Blue / Yellow-Green Main technical parameters and display characteristics: Power supply: VDD 5V Display color: yellow green / blue screen Display angle: 6: 00 hours direct LCD type: STN Interface with […]

SKU: d3ccpg3lcl50008kn1p0
Category:

Description

SPECIFICATIONS


Brand Name: NoEnName_Null

Choice: yes

Hign-concerned Chemical: None

Model Number: 2004A

Origin: Mainland China

Tube Chip Color: Blue

Use: Indoor

is_customized: Yes


2004 Blue / Yellow-Green

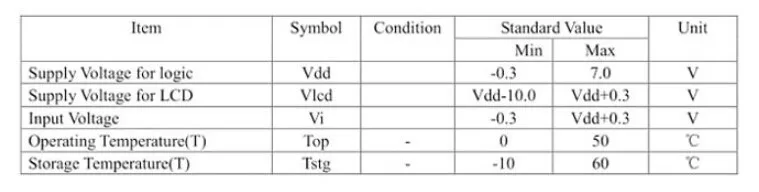

Main technical parameters and display characteristics:

Power supply: VDD 5V

Display color: yellow green / blue screen

Display angle: 6: 00 hours direct LCD type: STN

Interface with MCU: 8-bit or 4-bit parallel/3-bit serial configuration LED backlight

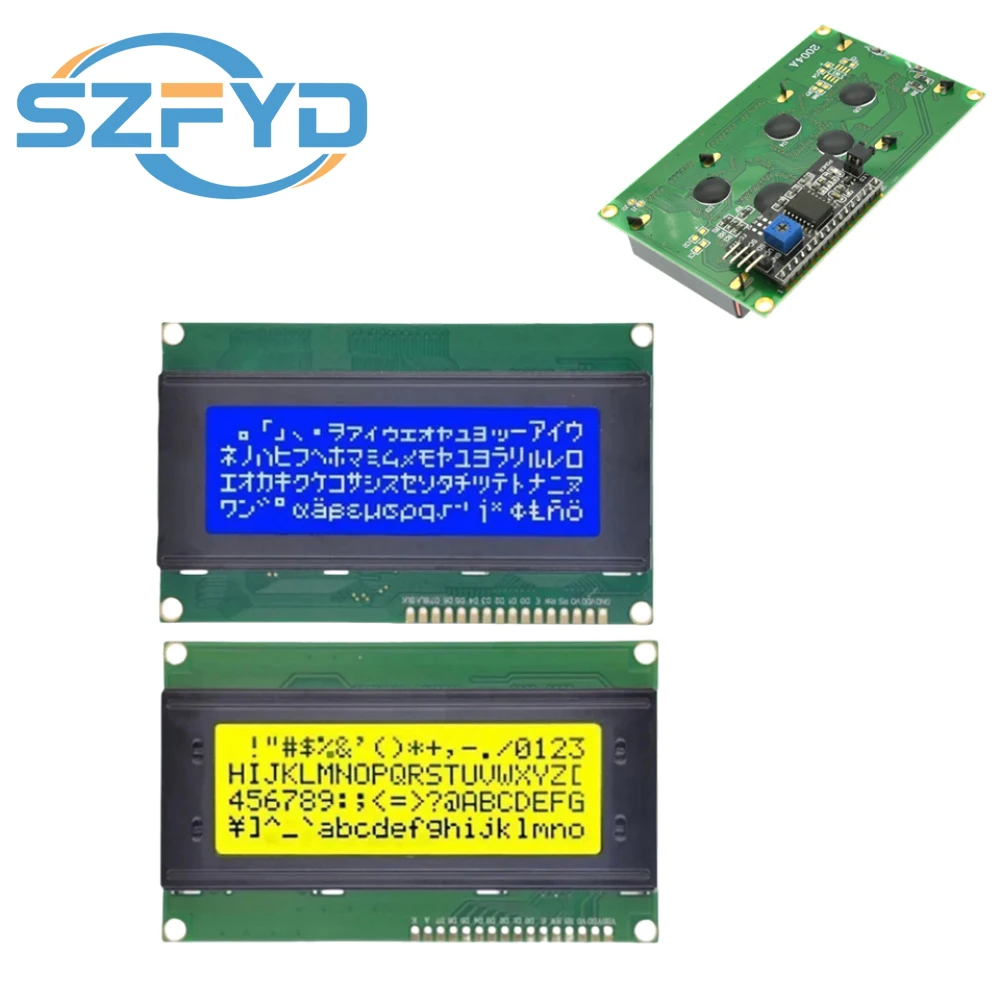

A variety of software features: cursor display, screen shift, custom characters, sleep mode, etc.

Additional information

Support Language

2004A yellow 5V IIC, 2004A blue 5V IIC
