Description
SPECIFICATIONS
Application: Computer
Brand Name: ICGOICIC
Choice: yes
Condition: New
Dissipation Power: n/a
Hign-concerned Chemical: None
Model Number: VHM-314
Operating Temperature: n/a
Origin: Mainland China
Package: SMD
Supply Voltage: n/a
Type: Module
is_customized: Yes
Support automatic back to even functions, support+ FLAC + MP3 WAV + apeNondestructive decoding, stereo output.
Parameter characteristics
The power supply | 3.7 to 5 v |
Signal to noise ratio | 90 db (a) |
(THD + N | – 70 decibels |
crosstalk | – 86 decibels |
The doctor's advice | 91 db (a) |
Support the configuration file | A2DP/AVCTP AVDTP/AVRCP/six fluorine |
Los Angeles, | > 15 meters. |
Size: 30 mm * 30 mm

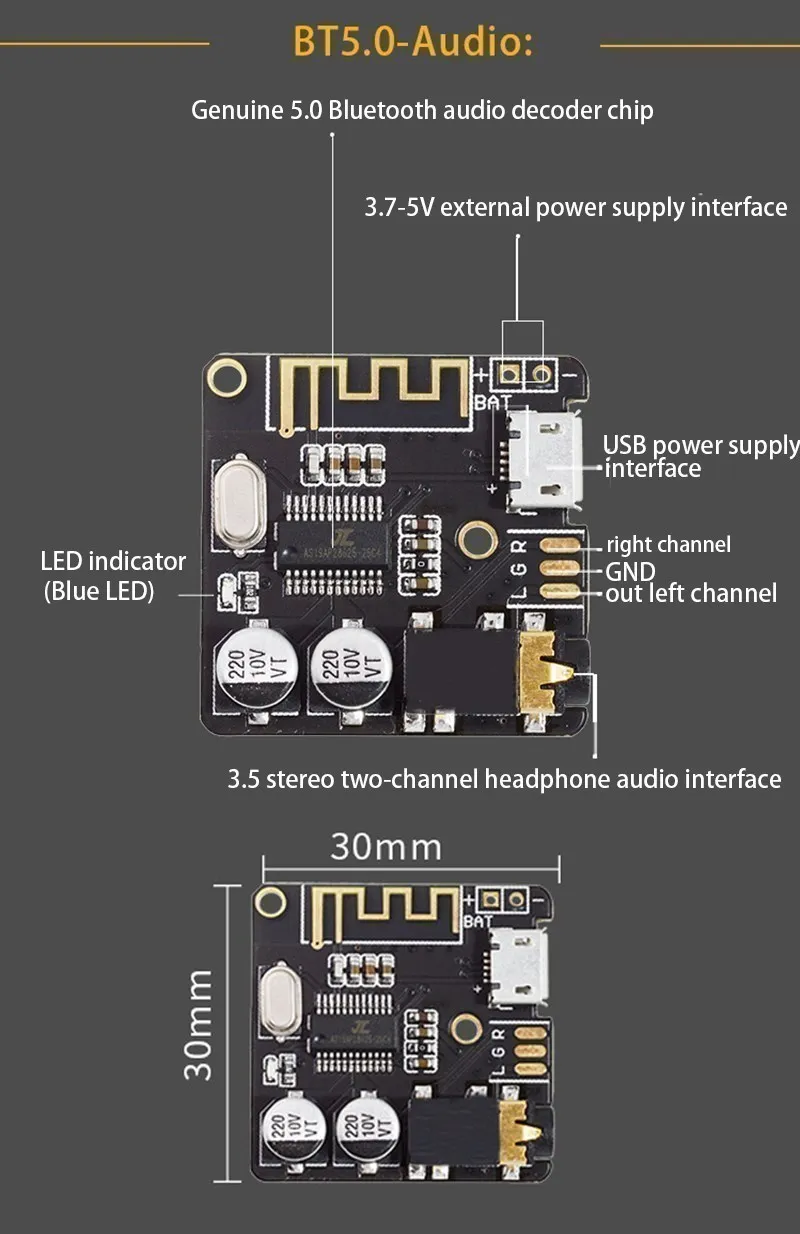

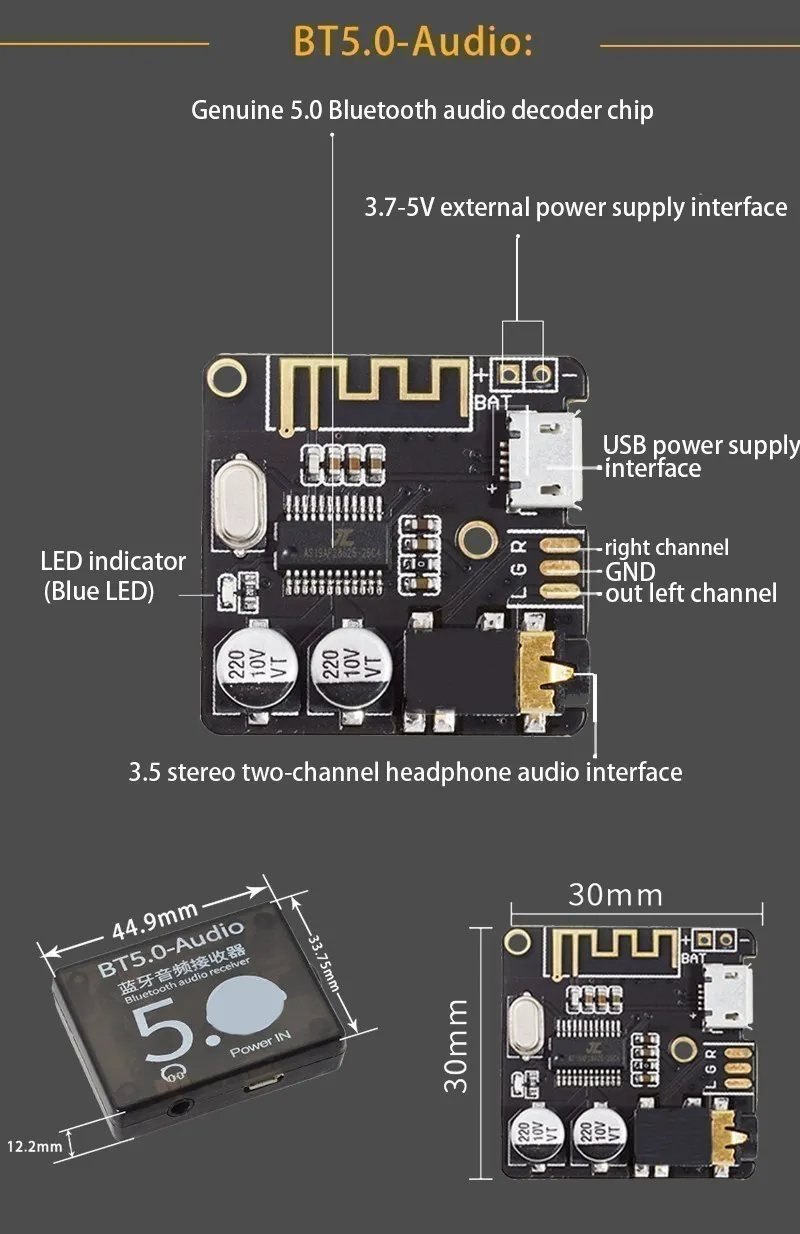

Detailed interface
USB power supply | General micro USB 5 v power supply |
3.7 5 v power welding plate | Modify external 3.7 5 v lithium battery power supply |
LED lights | Blue light long on bluetooth mode |
The 3.5 mm stereo audio interface | Standard 3.5 mm interface, stereo audio output, can insert the headset, connect the power amplifier, etc |
Product description:
This version upgrade prompt voice prompt "English".Long after connect the power supply, the blue light is bright, the bluetooth mode;After the play "prompt" into pairing mode;Mobile phone bluetooth search to the"XFW – bt"(decoding board equipment name), then click"XFW – bt"Connection, the connection is successful after playing" tip ", can play the music, the bluetooth after disconnecting, decoder board to play the next game and matching mode "beep".Each kind of mode of "beep" is not the same, users pay attention to distinguish.
5.0 support bluetooth backward compatibility
4.1To support automatic back even function, support+ FLAC + MP3 WAV + apeNondestructive decoding, stereo output.
The parameter characteristic
The power supply | 3.7 to 5 v |
Signal to noise ratio | 90 db (a) |
(THD + N | – 70 decibels |
crosstalk | – 86 decibels |
The doctor's advice | 91 db (a) |
Support the configuration file | A2DP/AVCTP AVDTP AVRCP/six fluorine |
Los Angeles, | > 15 meters |
