Description
SPECIFICATIONS
Battery Included: No
Brand Name: OPEN-SMART
Certification: None
Choice: yes
Color: RED
Hign-concerned Chemical: None
Model Number: Magnet Sensor
Origin: Mainland China
Package: Yes
Products Status: Stock
Type: Industrial Computer Accessories
semi_Choice: yes
Description
This sensor is small, versatile linear Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet.
The linear sourcing output voltage of the SIG pin is set by the supply voltage and varies in proportion to the strength of the magnetic field.
If you supply 5V for VCC and GND, it will output about 2.5V when it is in the 0G magnet field. If it detects South pole, it will output voltage higher that 2.5V. If it detects North pole, it will output voltage lower that 2.5V.
Features:
– Main IC: SS49E compatible;
– SIG output type: Analog;
– Detect range: -1000G~1000G;
– Quiescent output voltage: half of the supply voltage(if VCC=5V, it is 2.5V.)
– Output voltage range: 1.0~4.0V(if VCC=5V and range is -1000G~1000G);
– Working voltage: 3.0 – 5.5V DC;
– Working current: about 5mA;
– Great for DIY, smart home project;
Dimensions:

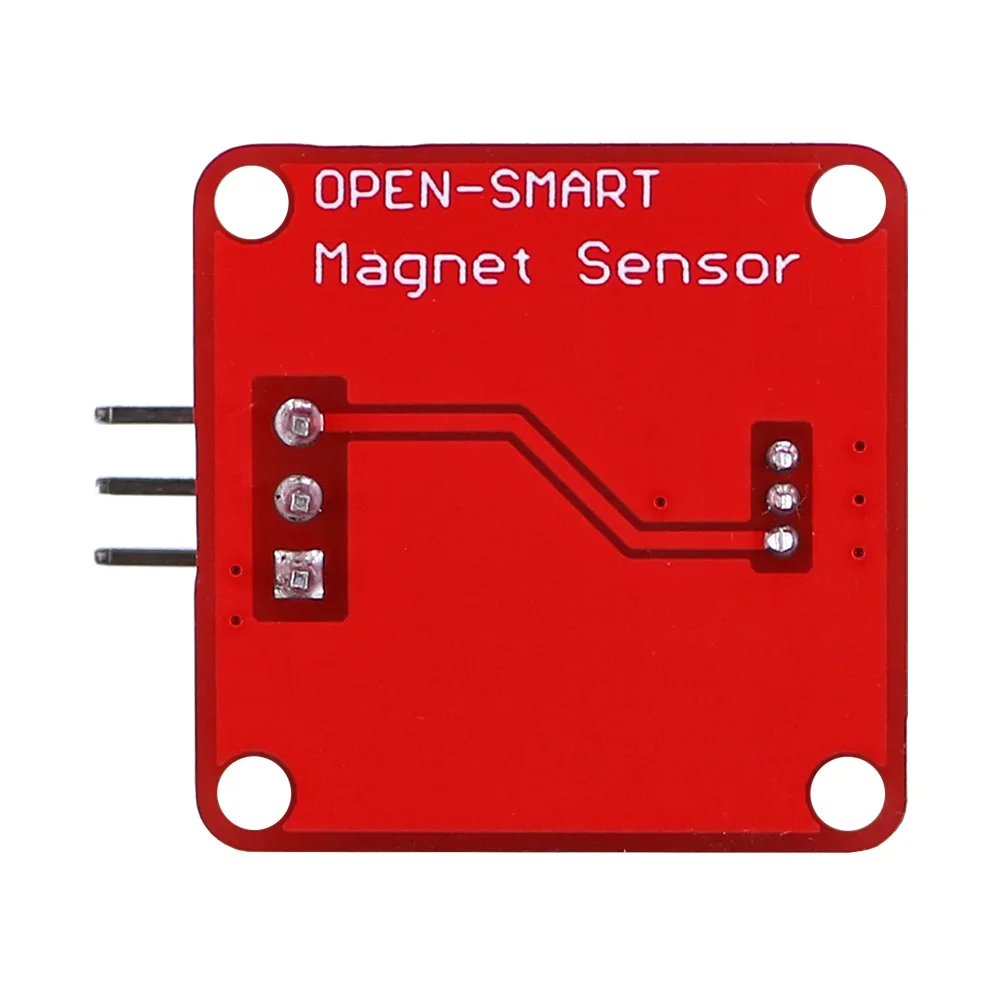

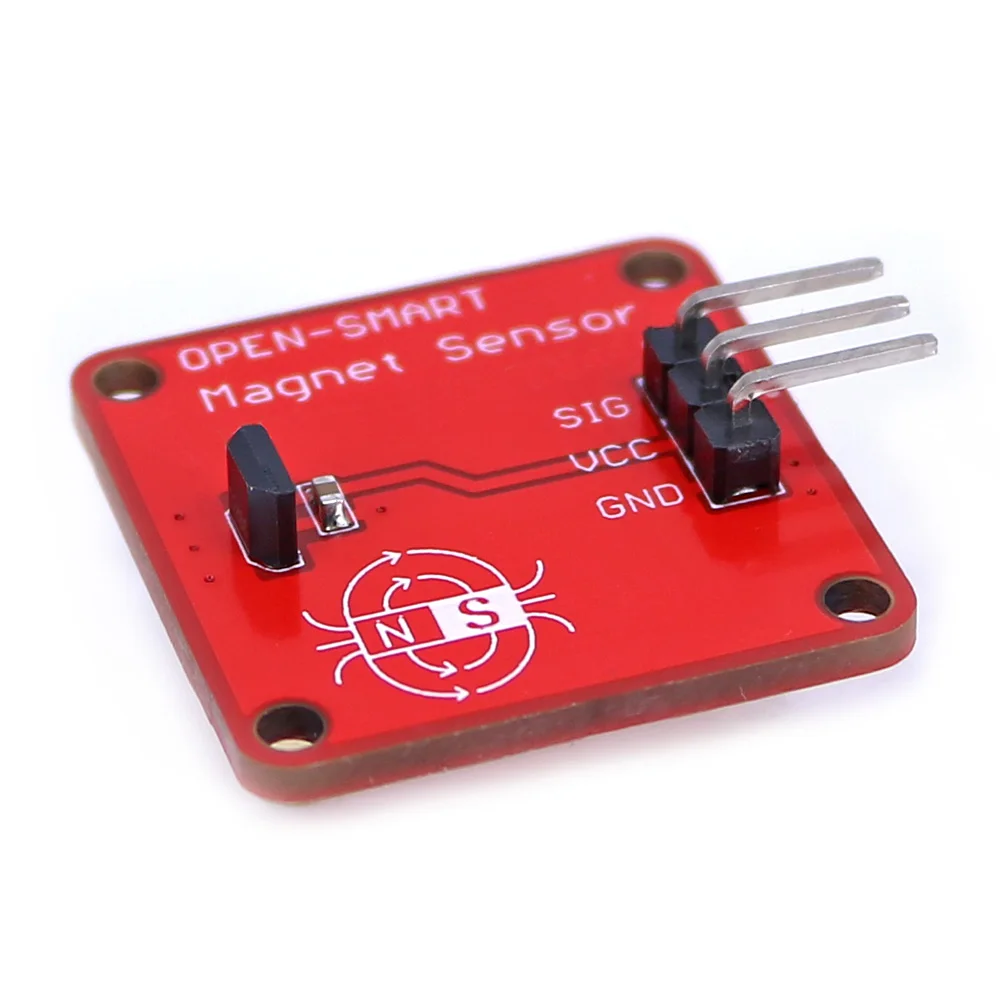

Photos
