Description
SPECIFICATIONS
Battery Included: No
Brand Name: OPEN-SMART
Certification: None
Choice: yes
Color: black
Hign-concerned Chemical: None
Model Number: Waterproof DS18B20 Temperature Sensor
Origin: Mainland China
Package: Yes
Products Status: Stock
Type: Industrial Computer Accessories
semi_Choice: yes
Features
Note: If you want to place the bulk order that the stock is not enough, please contact with us.

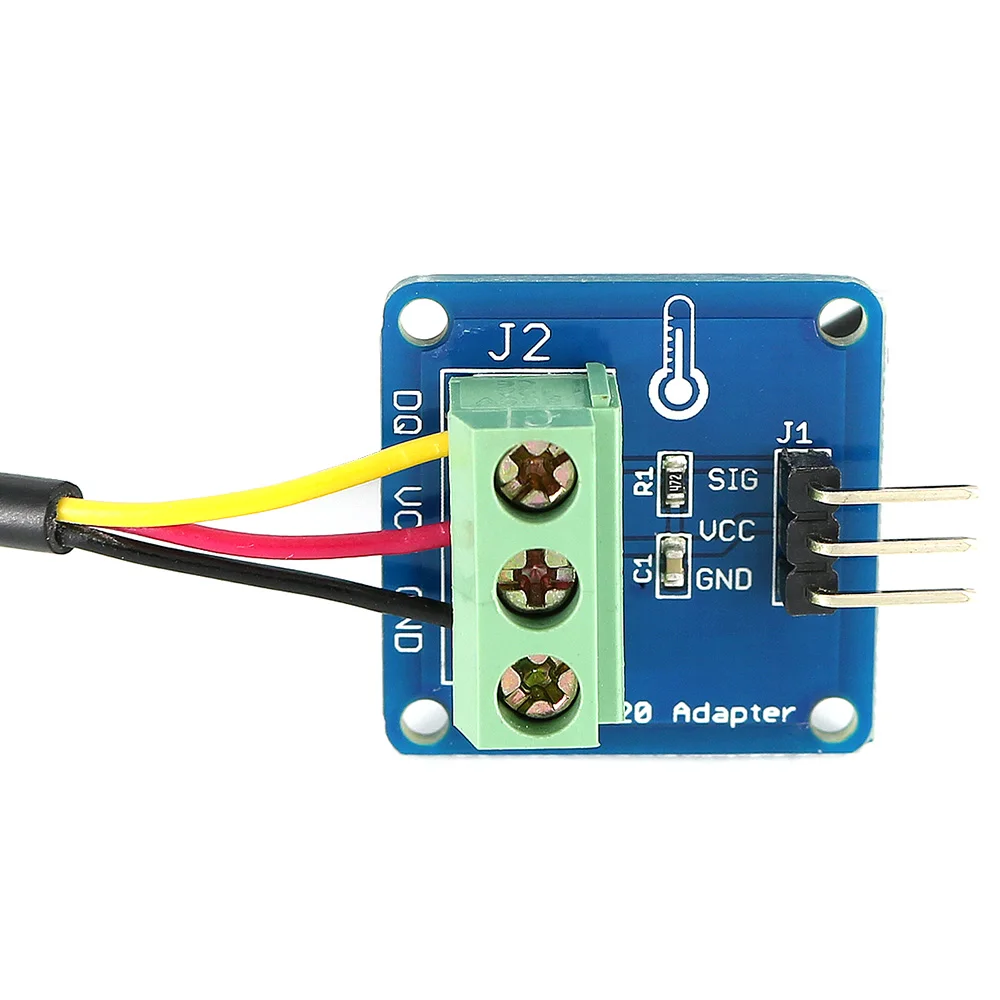

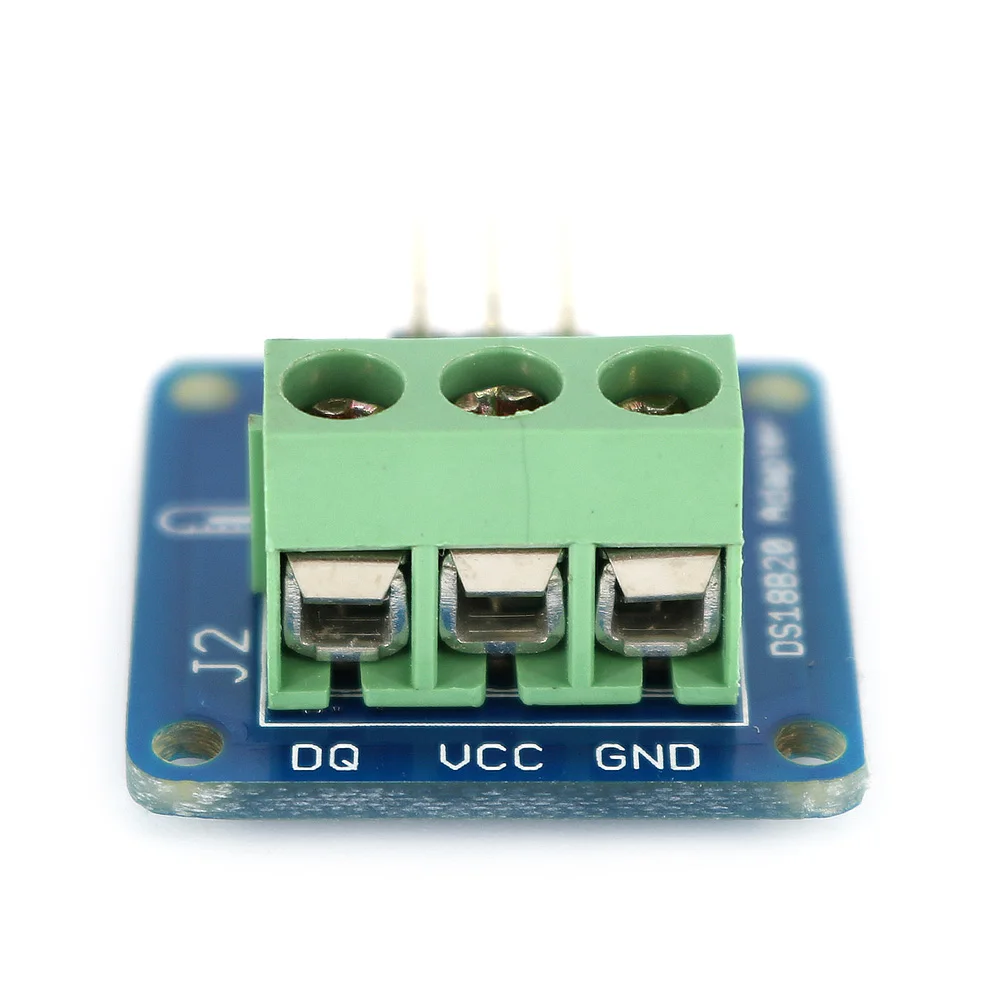

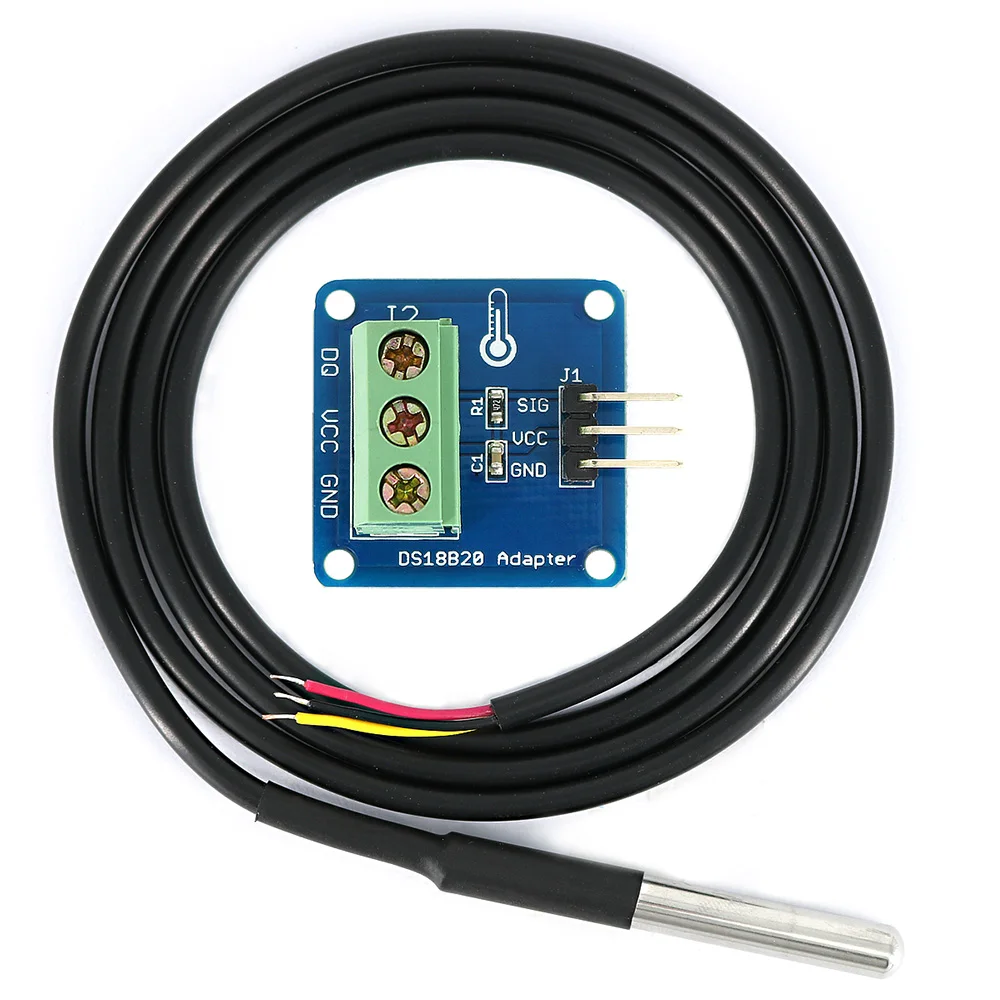

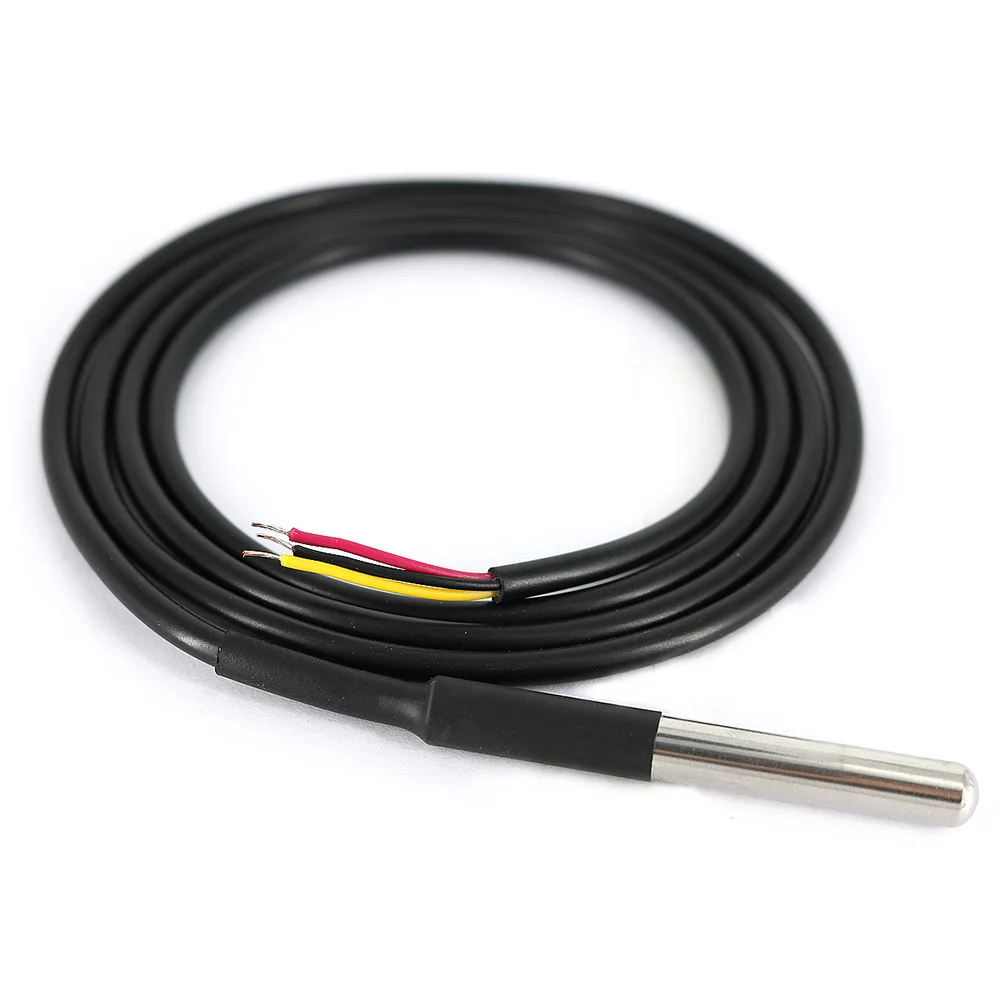

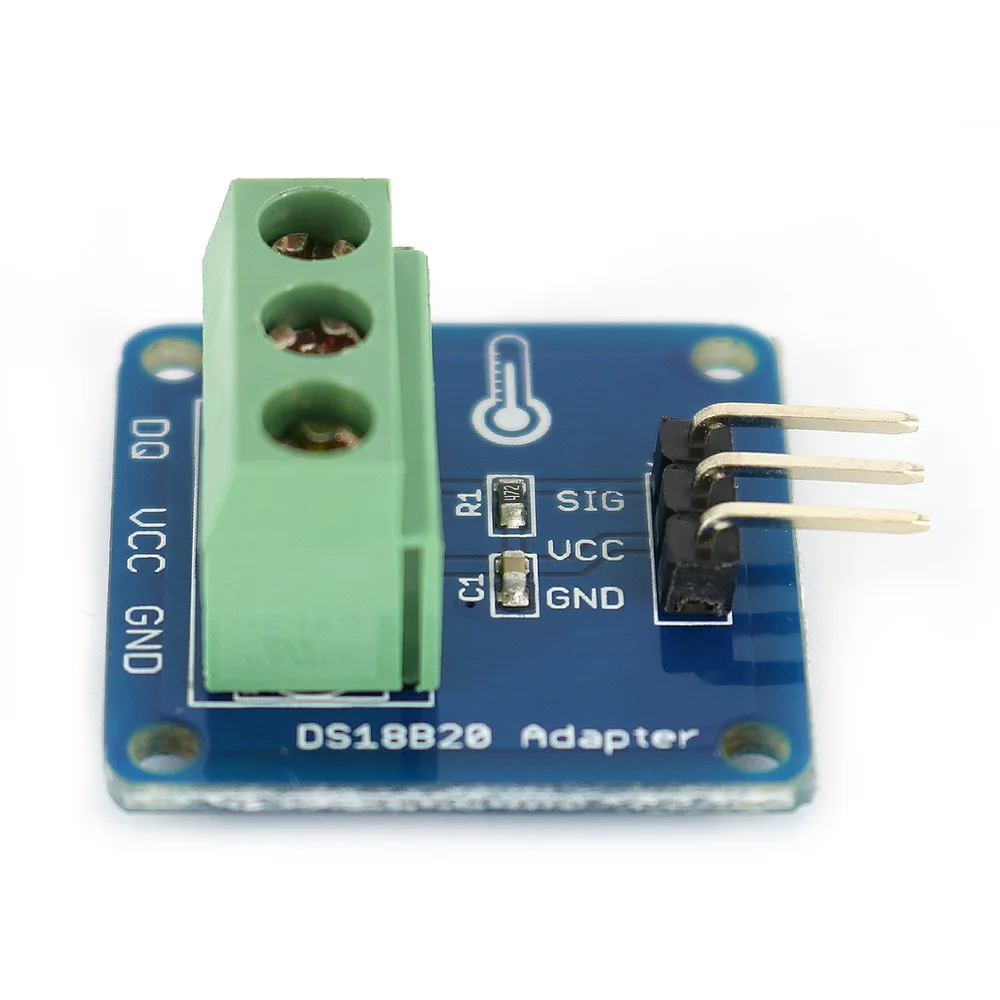

The kit contains a waterproof digital temperature sensor DS18B20 and a DS18B20 adapter module, and it can measure the temperature directly in the water.
Single bus interface allows the multiple DS18B20 sensors mounted on the same bus, so it can be multiple DS18B20 sensors are connected to the green terminals of the adapter module, in order to achieve a large area multi-point measurement of temperature.
With pull-up resistor on board, the adapter module can be connected directly to most micro controllers and it is widely used in temperature monitoring for fish tanks, equipment, machinery, greenhouses.
Features:
Single-bus communication, multiple sensors can share a data line
Compatible for Arduino
library: OneWire
Working voltage: 3.2 ~ 5.25VDC
Working current: 2mA (max)
Resolution: 9-12 bit programmable
Measuring range: -55 ~ 110 ° C
Measuring accuracy: ±0.5'C@-10~+80'C; ± 2'C @ -55 ~ + 110'C
Output leads: yellow (DATA), red (VCC), black (GND)
Photos
